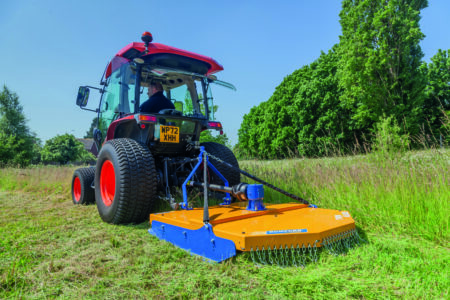

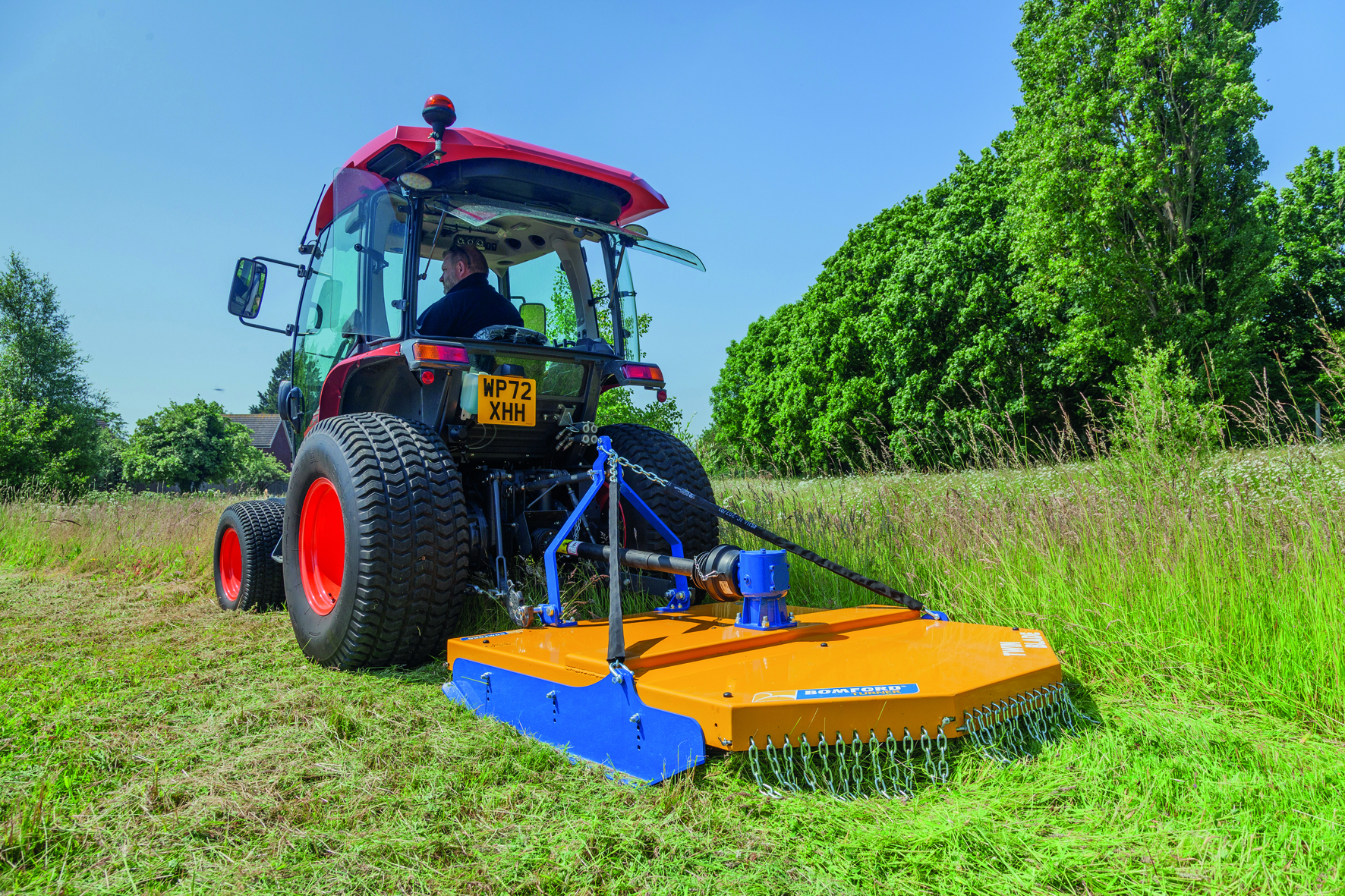

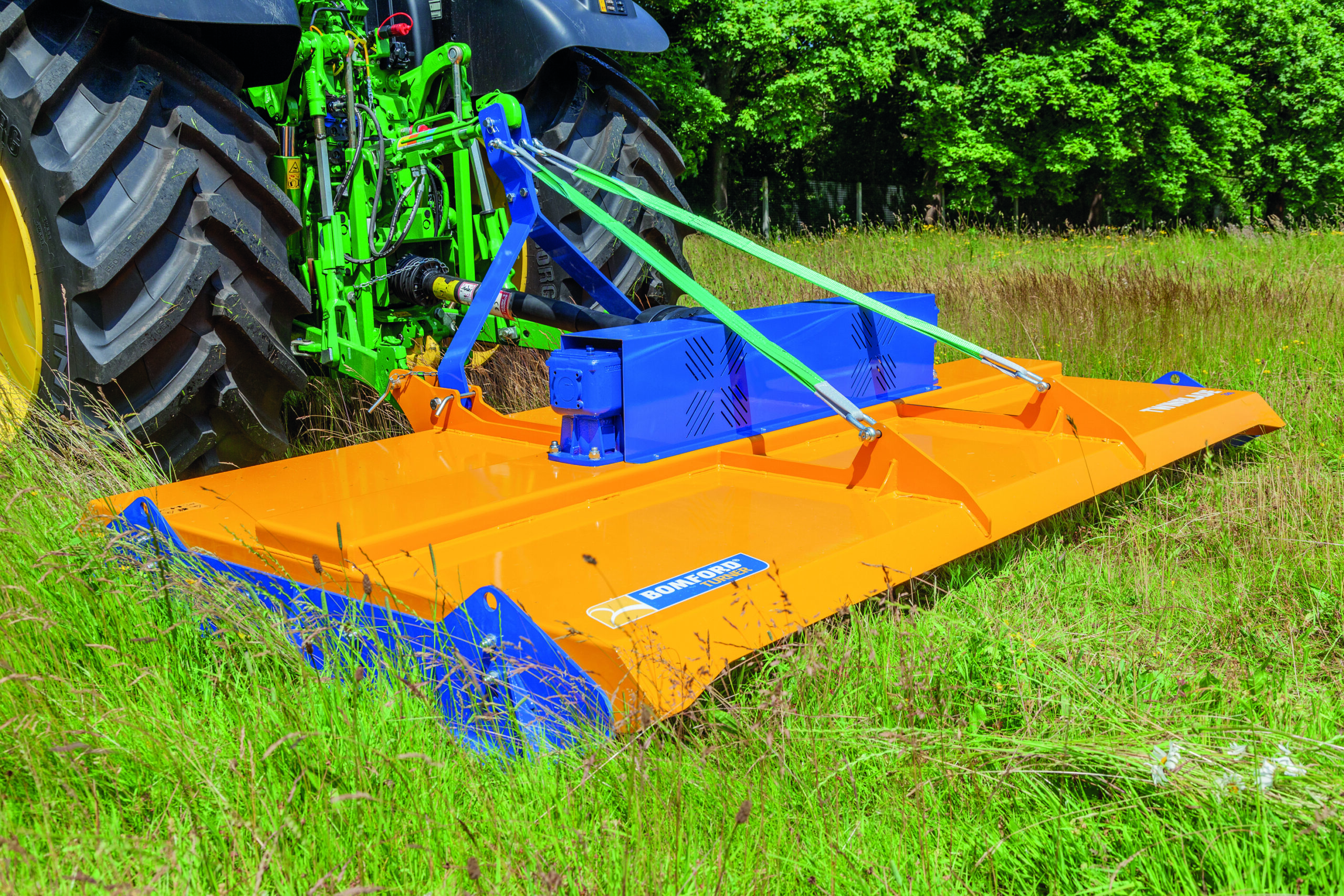

Twin-Blade

The range extends from 1.25m and semi-offset to 2.8m, along with a fully offset 2.4m. The Twin-Blade also features cast-iron gearboxes and protected drivelines. Simple, adjustable skids on this machine are key to a smooth operation.

Key Features:

Shaft driven
1.25m, 1.45m, 1.85m, 2.4m, and 2.8m cutting width
Variable cutting height
Shearbolt and overrun gear box protection
Cat 1 or Cat 11 three point linkage

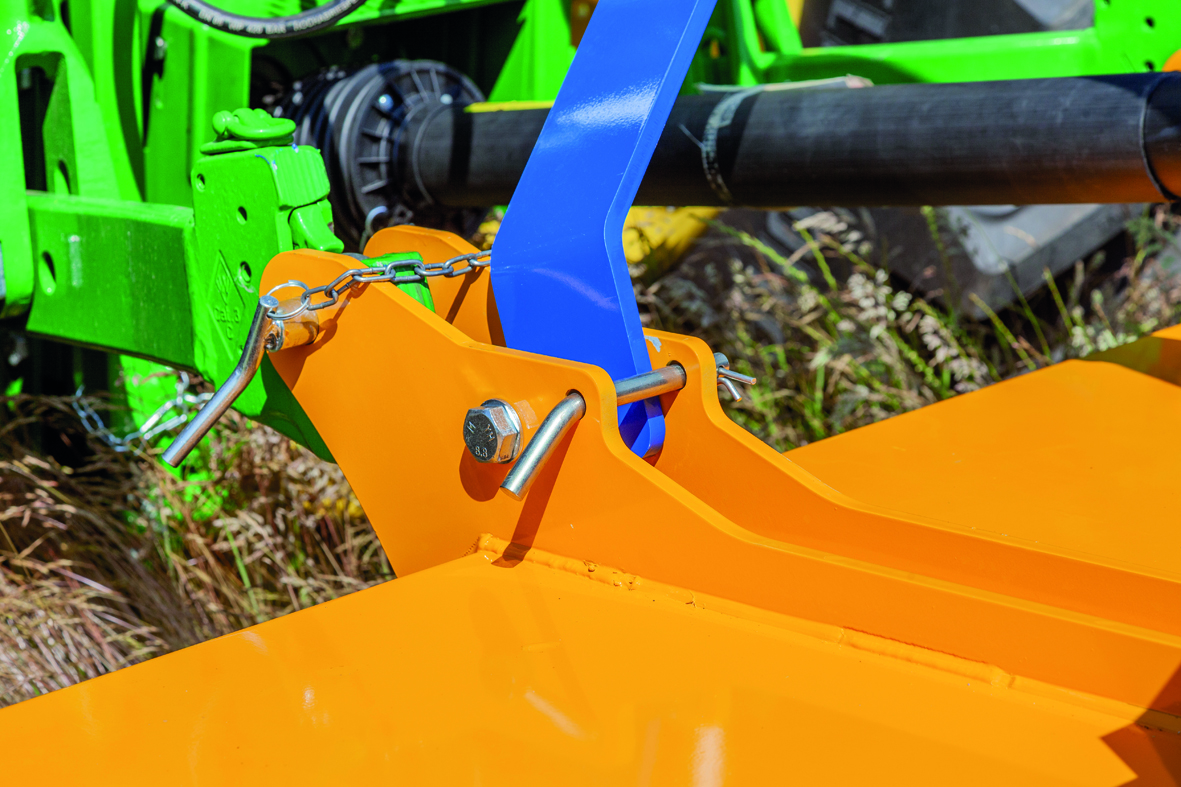

A-Frame mounting option

Models	TB125	TB145	TB185	TB240	TB280
Cutting Width	1210mm / 4’	1420mm / 4’8”	1725mm / 5’11”	2600mm / 8’6”	2800mm / 9’2”
Overall Width (Transport)	1345mm /4’5”	1545mm /5’1”	1875mm /7’6”	2850mm /9’4”	3050mm /10’
Weight	220kg / 485lbs	265kg / 584lbs	310kg / 683lbs	410kg / 904lbs	450kg / 992lbs
Linkage Mounting	Cat 1	Cat 1	Cat 11	Cat 11	Cat 11
PTO Speed (rpm)	540	540	540	540	540
Number of Rotors	1	1	1	2	2
Number of Blades	2	2	3	4	4
Power Requirement (min)	25hp	25hp	45hp	50hp	60hp
PTO shaft protection	Shearbolt	Shearbolt	Slip clutch	Slip clutch	Slip clutch
Cutting Height	10-90mm ³/₈” – 3⁹/₁₆”	10-90mm ³/₈” – 3⁹/₁₆”	10-90mm ³/₈” – 3⁹/₁₆”	30-90mm 1³/₁₆” – 3⁹/₁₆”	30-90mm 1³/₁₆” – 3⁹/₁₆”
Semi Offset	Inline	Inline	Inline	Inline	Inline
