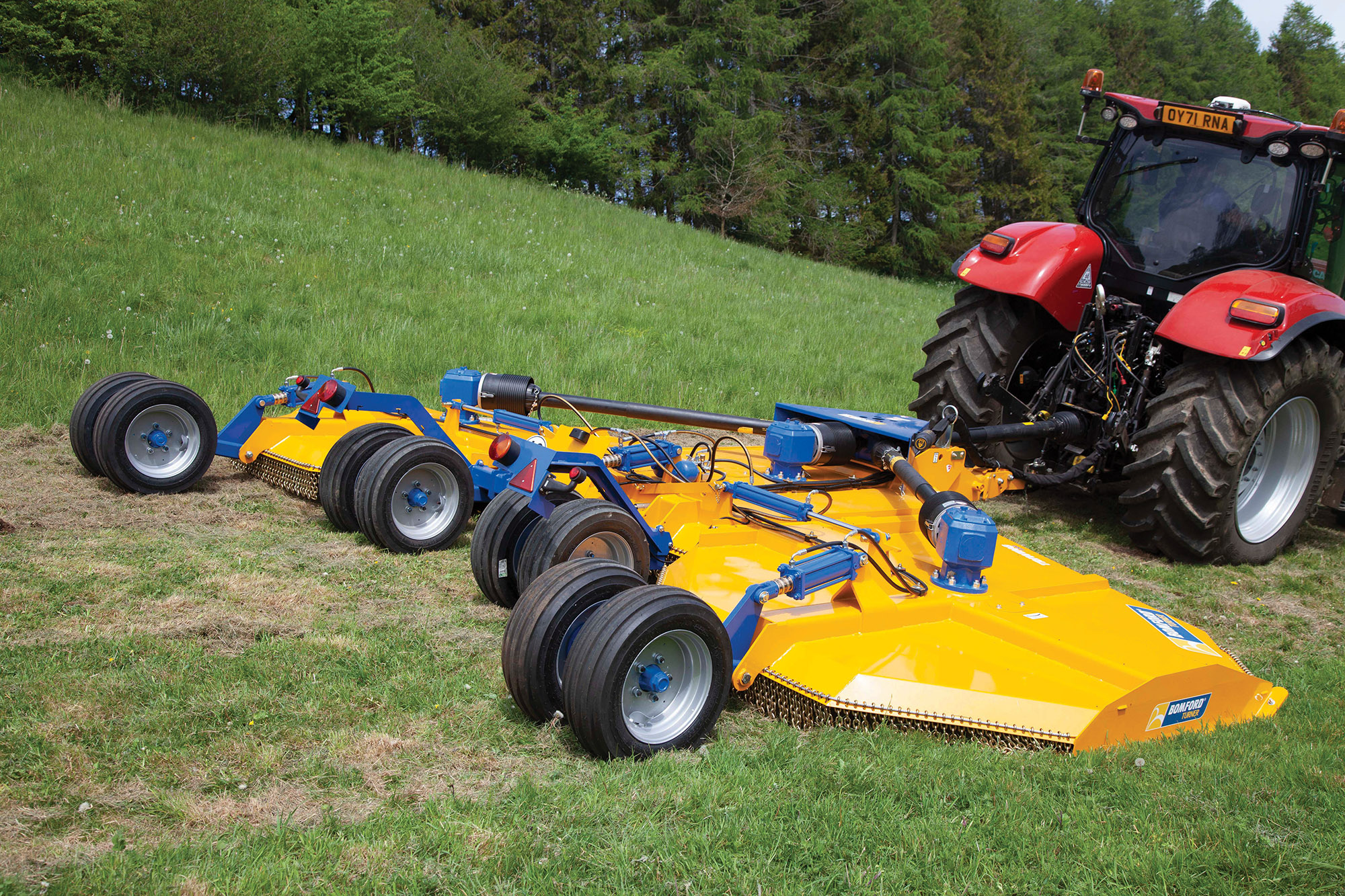

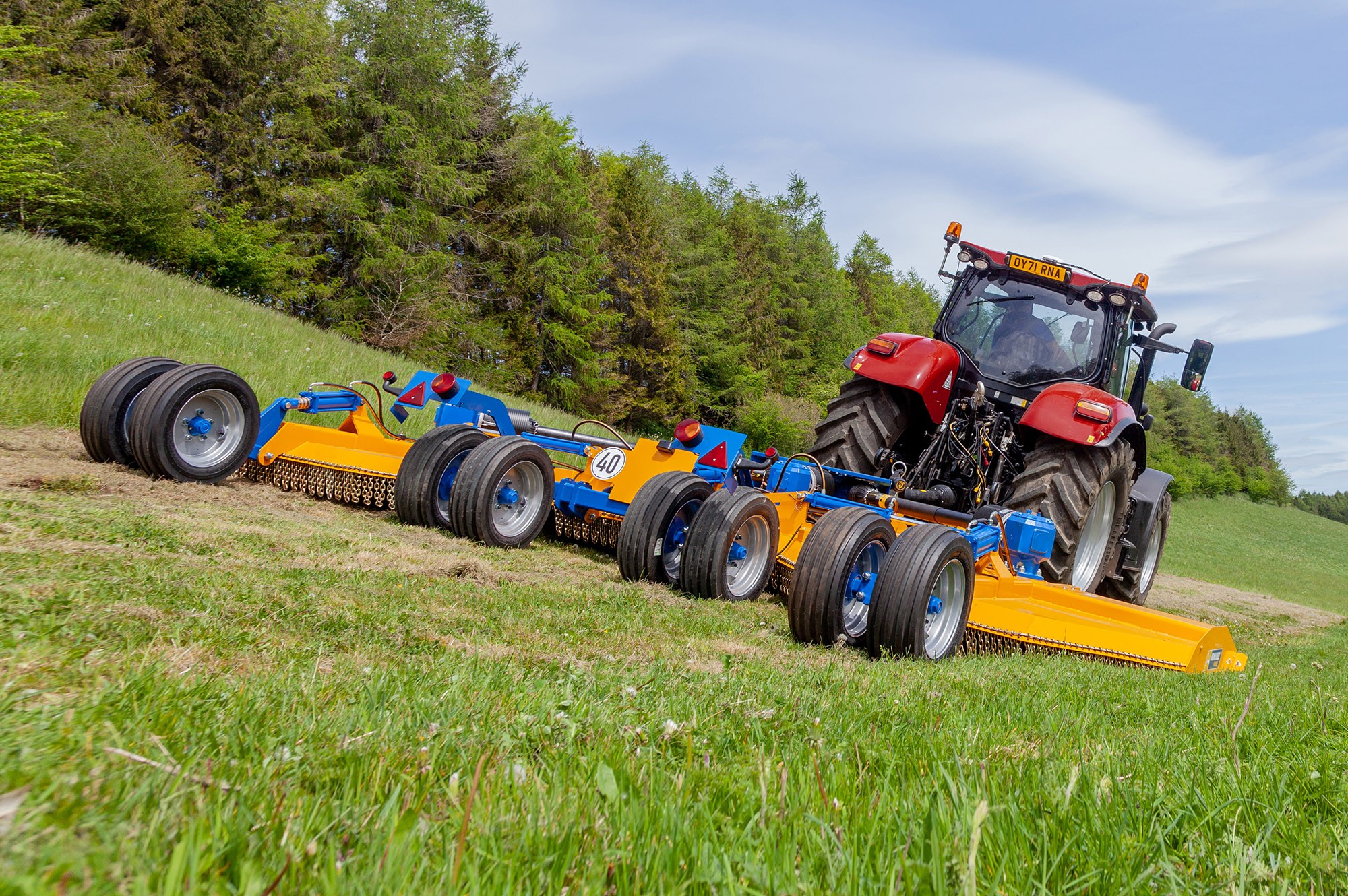

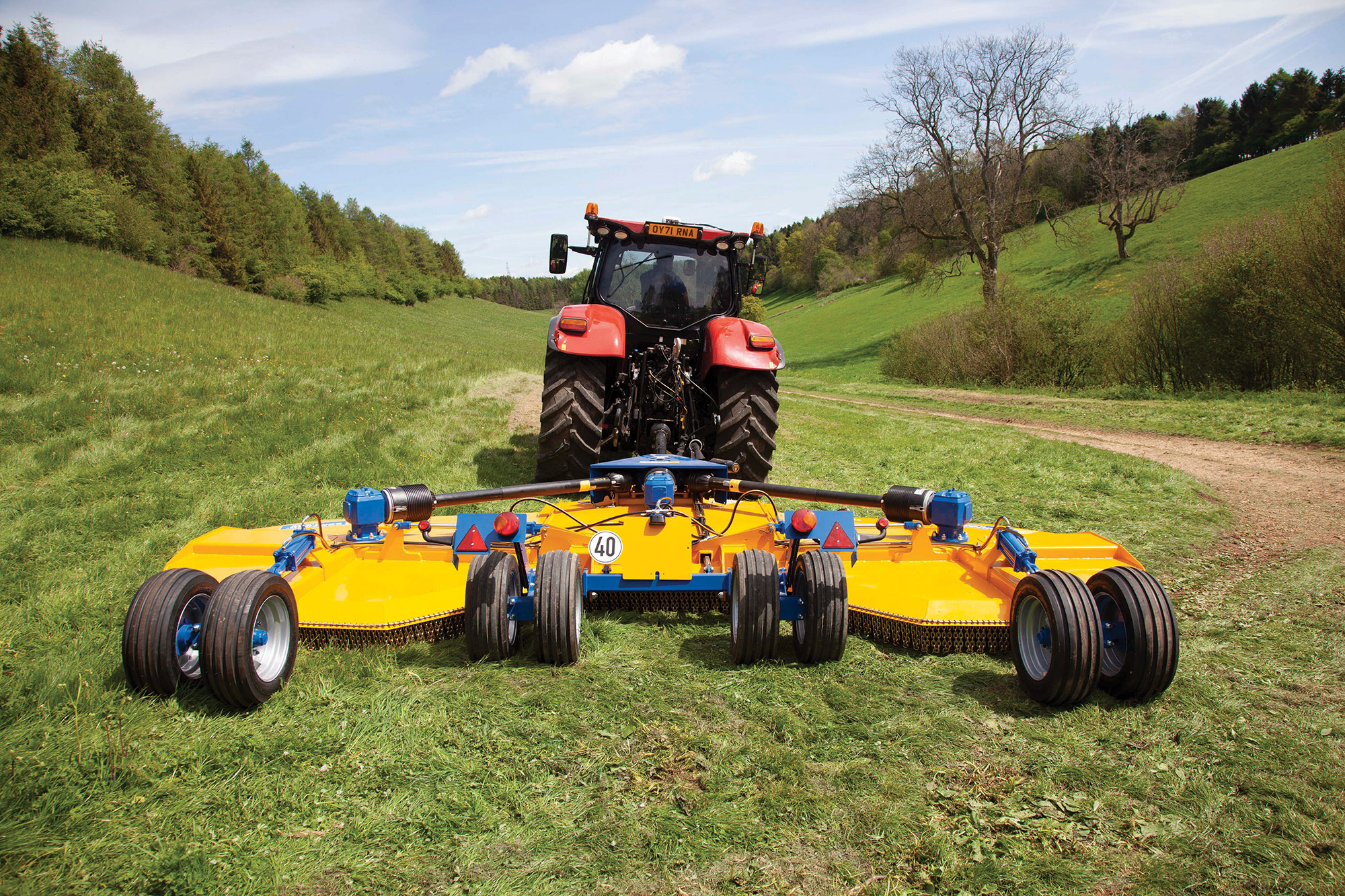

Tri-Wing

The clean lines of this robust design, reduces the build up cut debris from collecting and rotting the machine deck, maximising its working life.

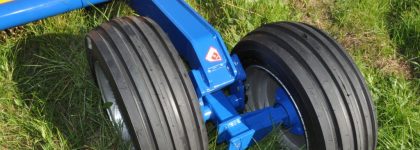

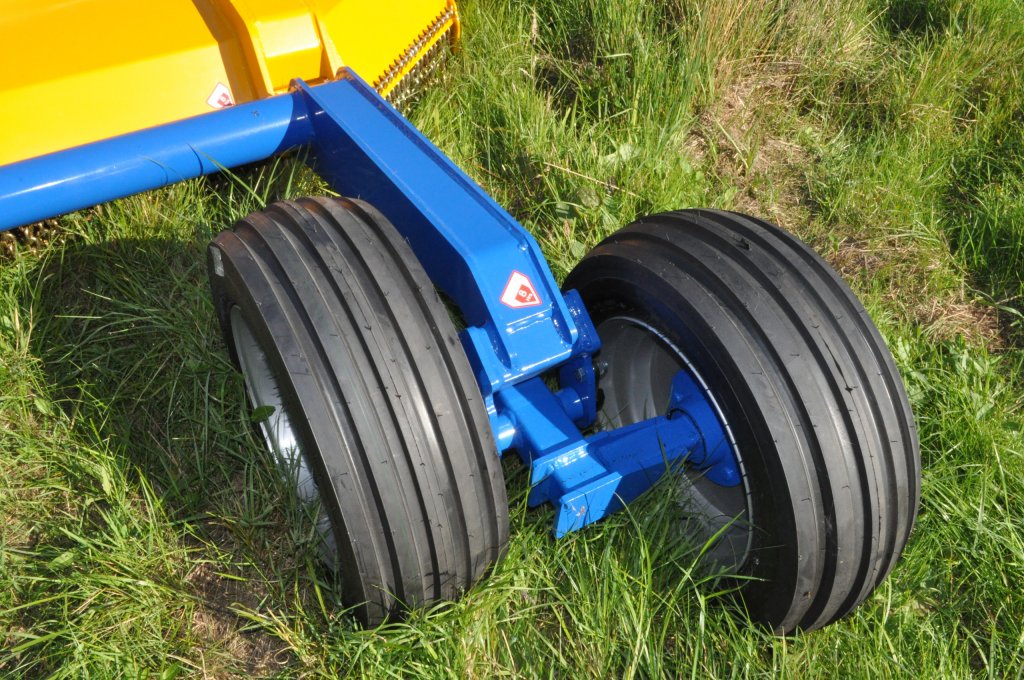

Wheel Equipment

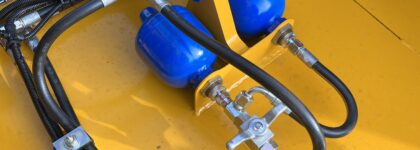

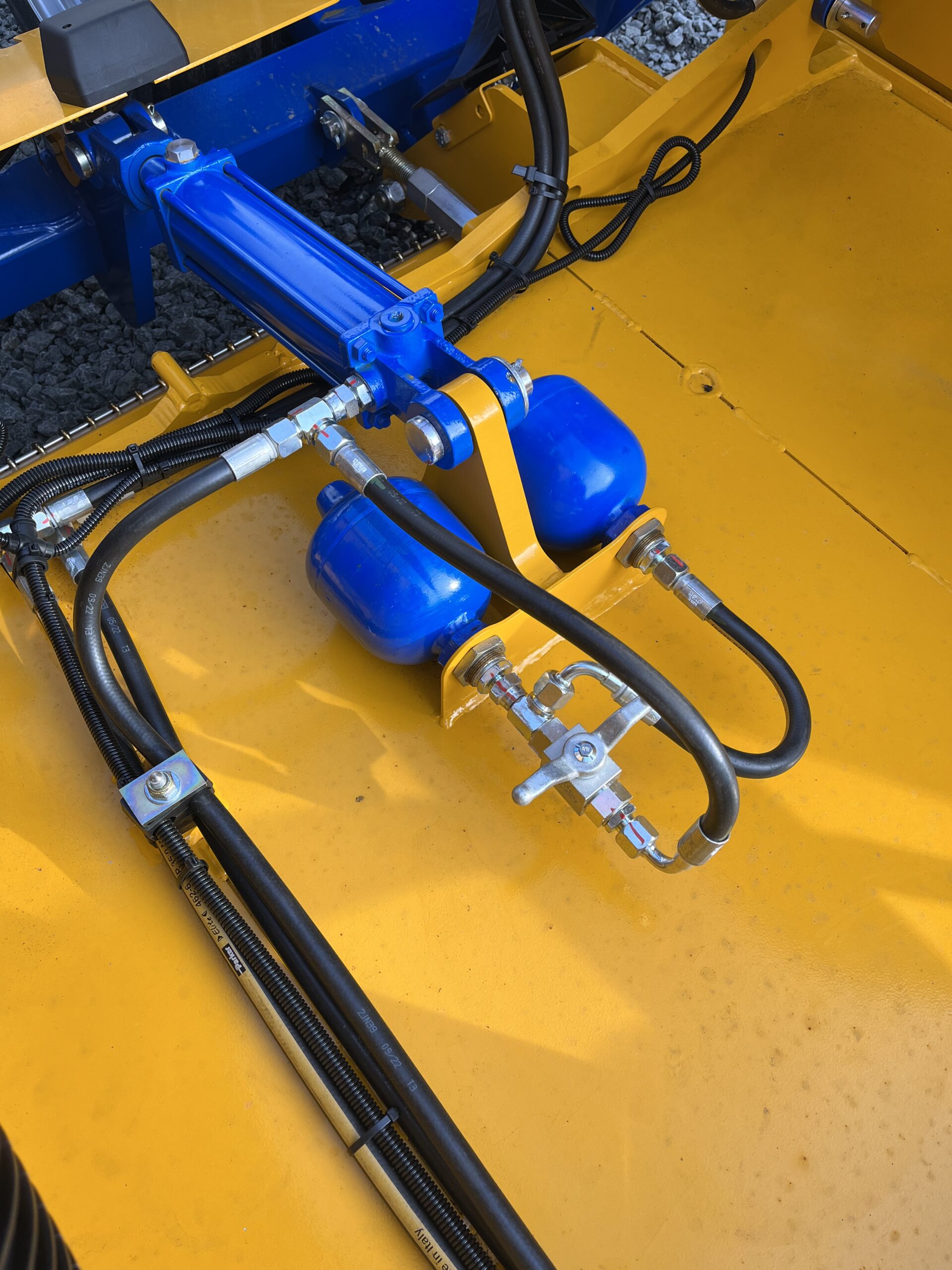

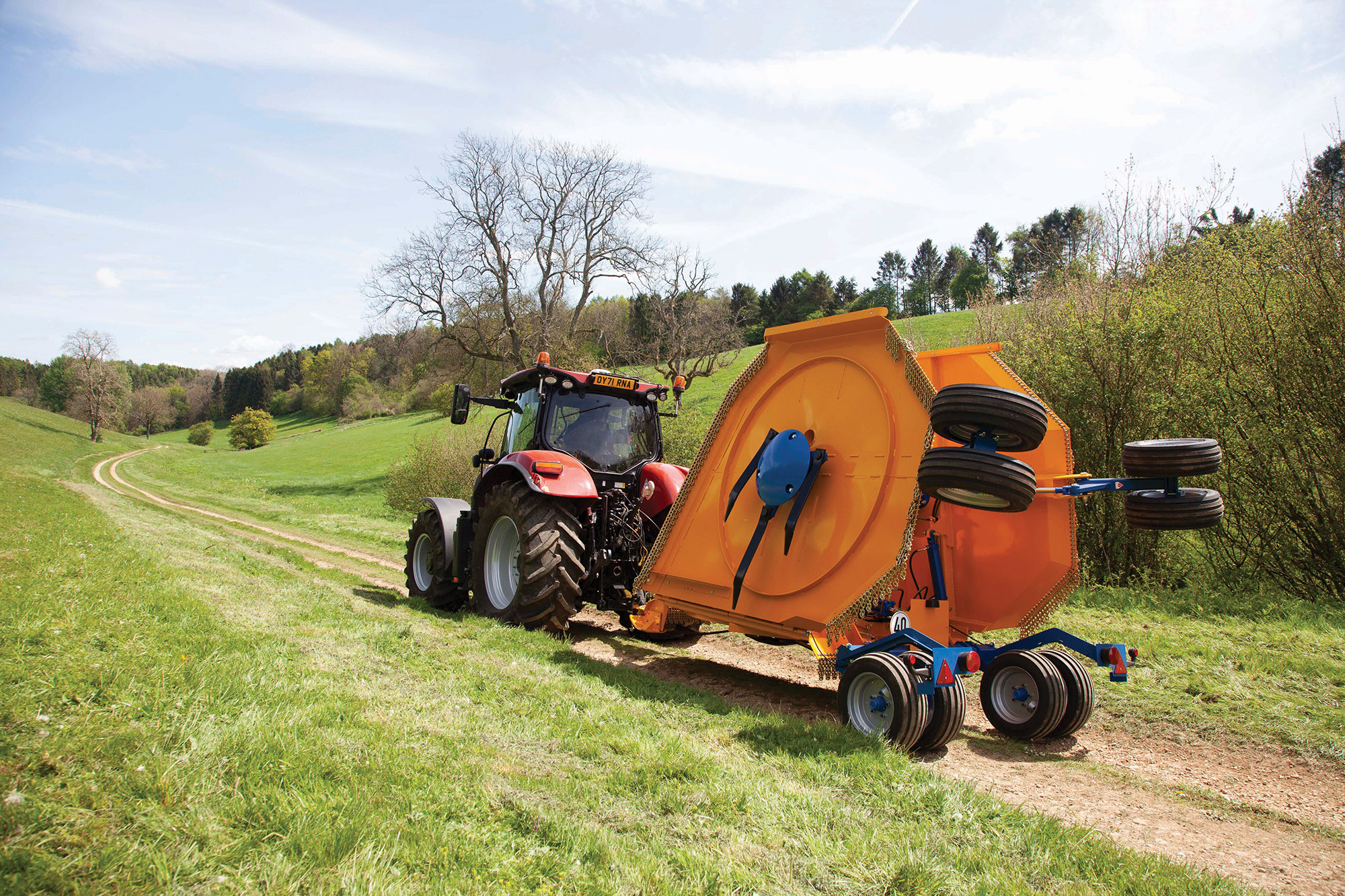

Fitted with six 200/60 – 14.5 10 ply tyres as standard, the Tri- Wing 4.6 and 6m can also be also supplied with an eight wheel option for reduced ground pressure. The hydro-suspension shock absorbing mechanism ensures a smooth ride and reduces stress within the mainframe.

Features:

4.6m and 6m cutting widths
Walking wheel kit option

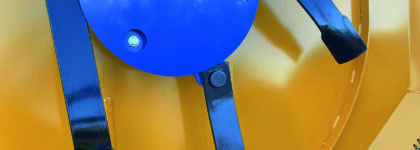

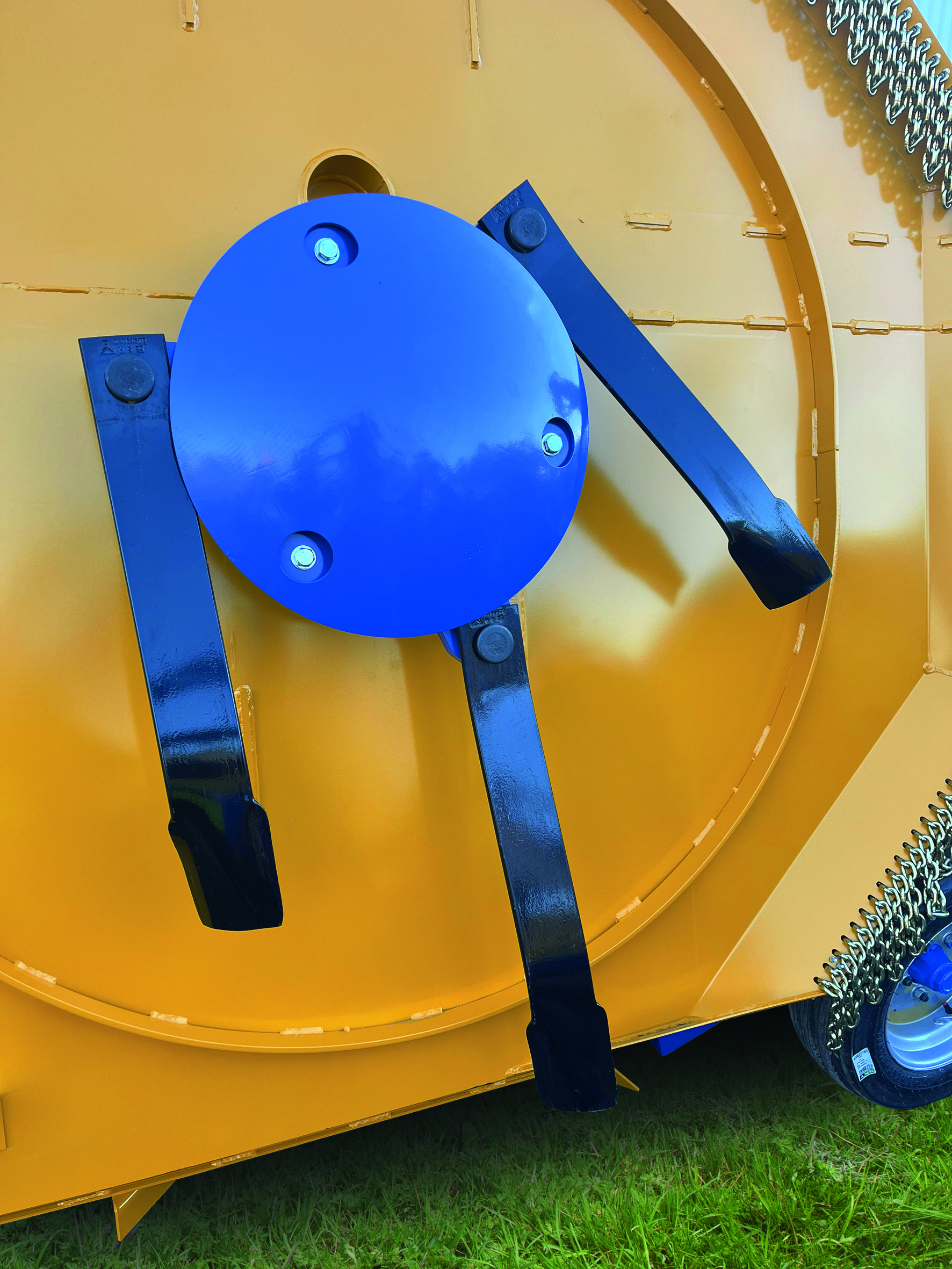

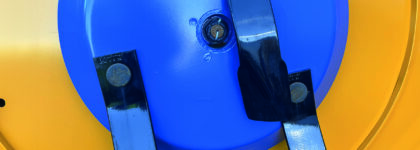

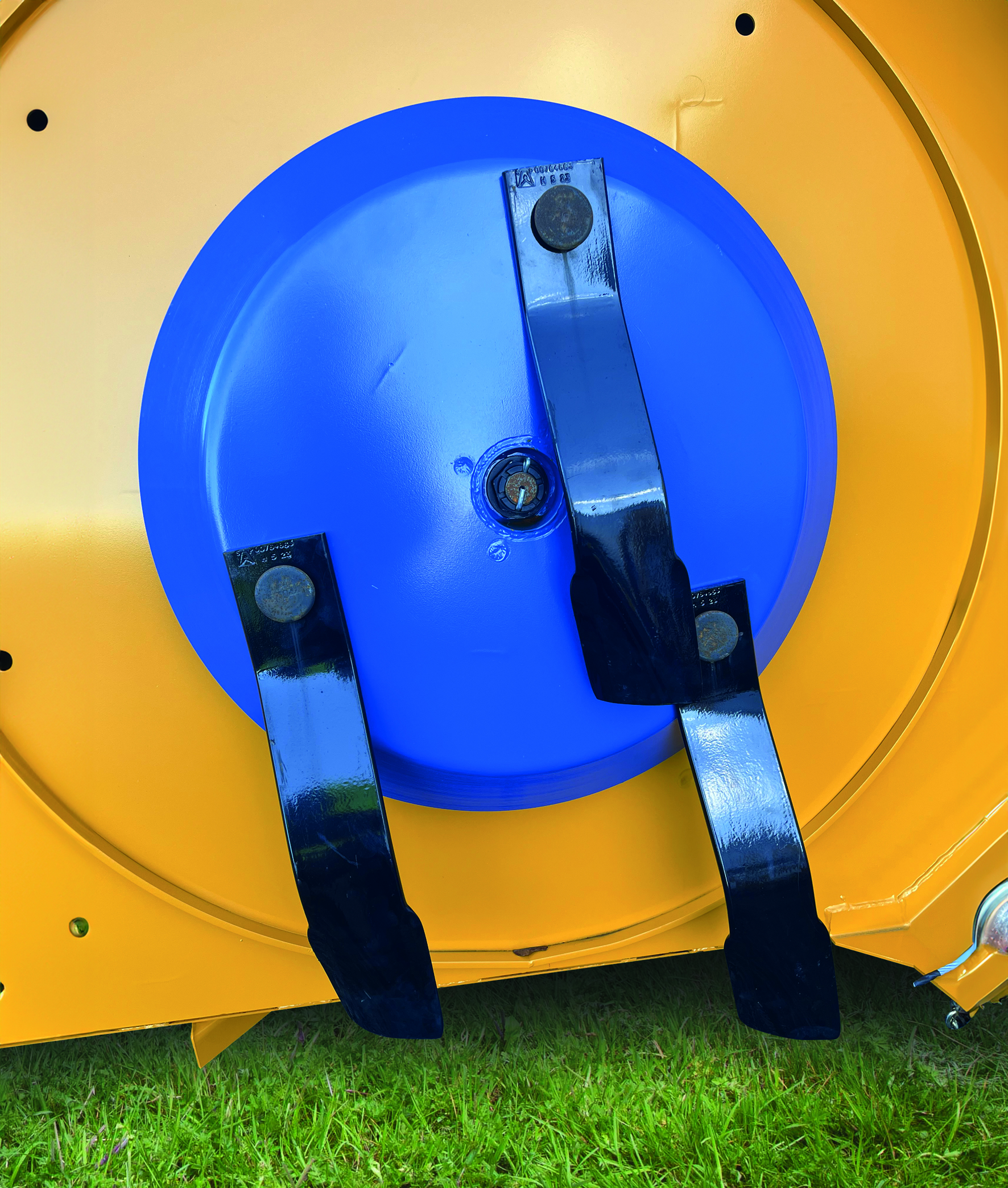

Nine heavy duty updraft blades

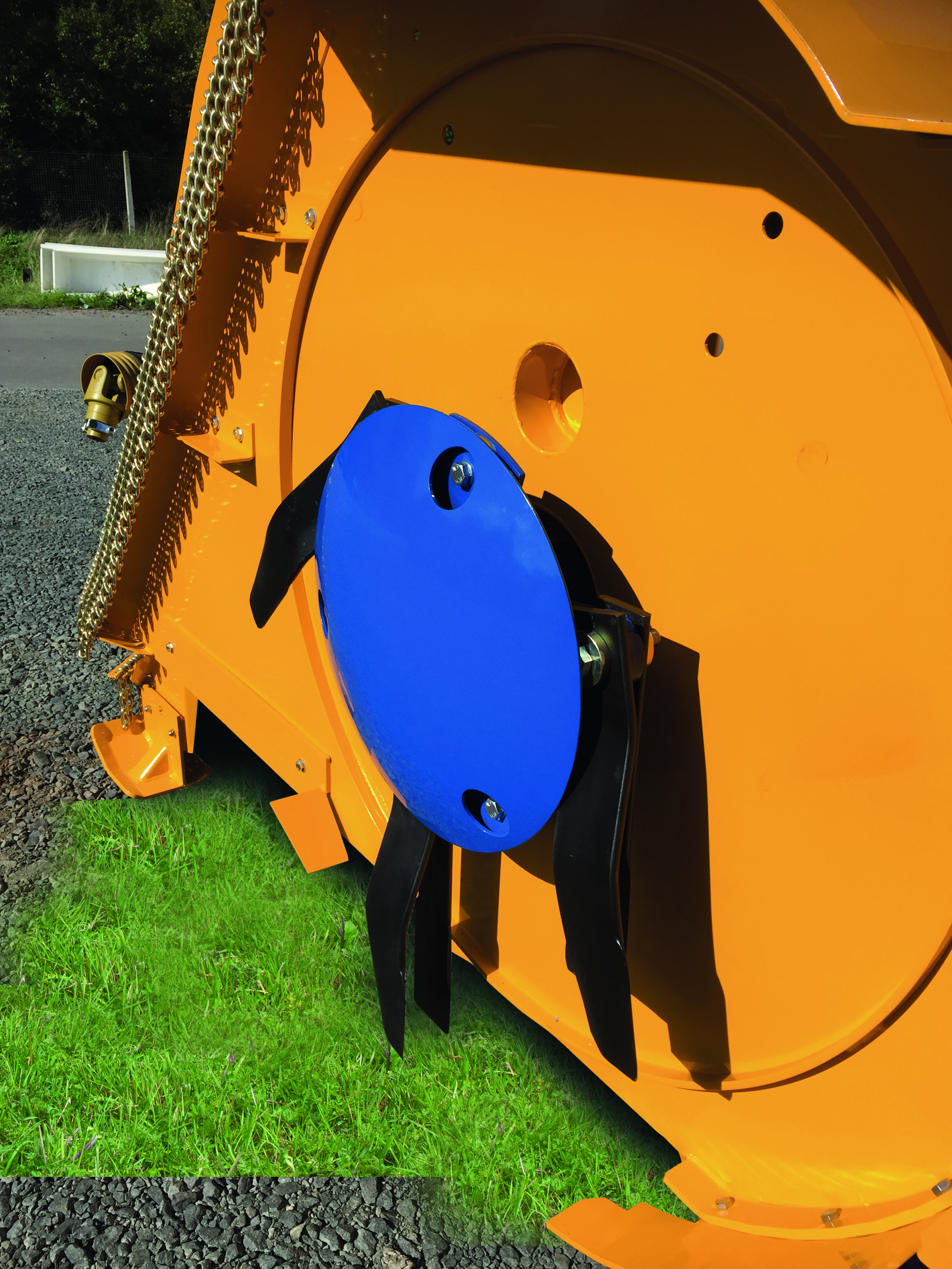

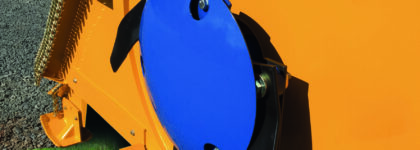

Choice of 5 blade configurations
Shredder option for maize
Hydro-suspension system
2.3m and 2.6m transport widths

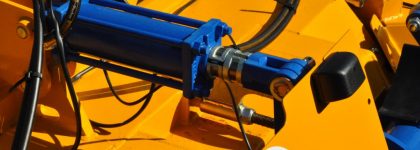

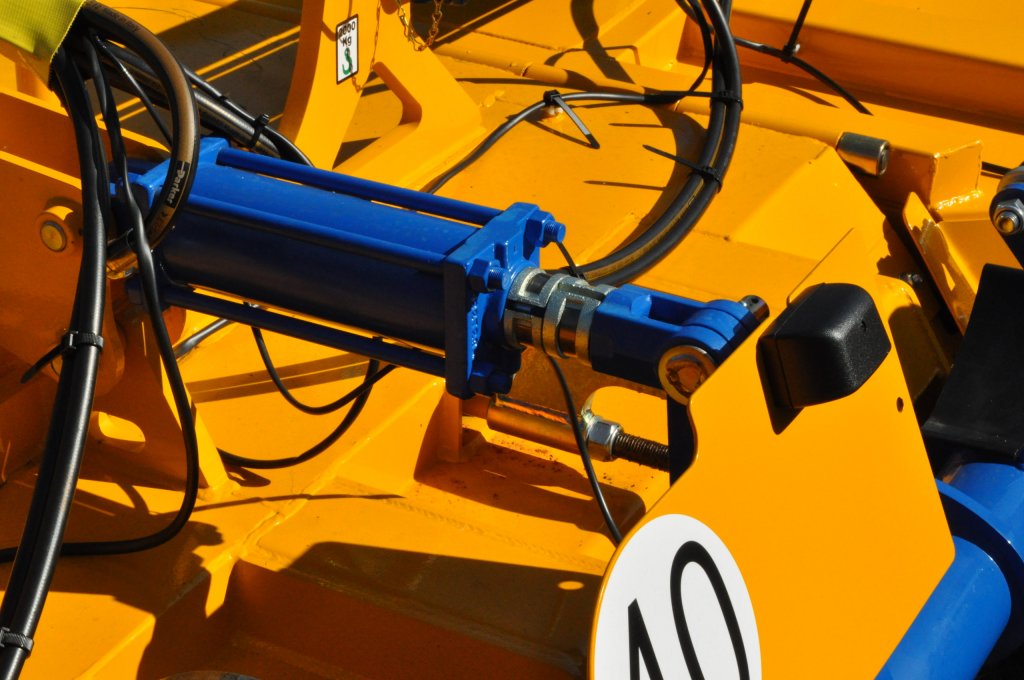

Hydraulic level lift system

Models	TW4600	TW6000
Cutting Width	4.60m / 15′	6.0m / 20′
Overall Width	4.75m / 15’7″	6.30m / 20’8″
Overall Length	4.9m / 16’4″	5.5m / 18’1″
Transport Width	2.5m / 8’2″	2.4m / 7’10”
Cutting Height	13mm – 393mm / ½” – 15″	13mm – 393mm / ½” – 15″
Horsepower (Min)	80hp	100hp
Tip Speed	80 m/s	80 m/s
PTO Speed	1000	1000
Wing Flex (Degrees)	107° up -21° down	109° up -10° down
Weight (Approx)	2385kg / 5258lbs	2775kg / 6117lbs
