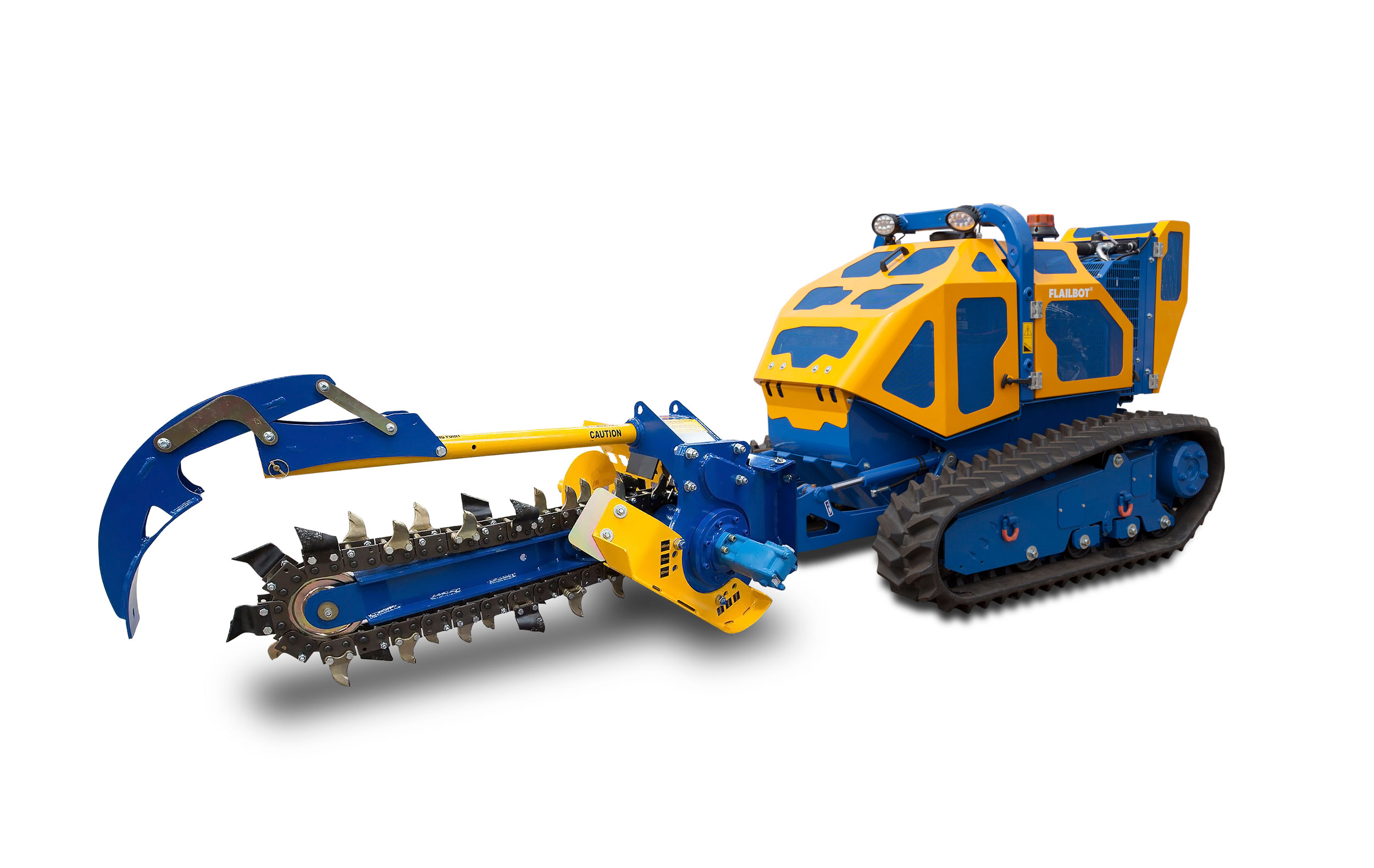

For cutting trenches in restricted areas, and on prestigious surfaces, cuts a small trench for pipes and cables to be laid.

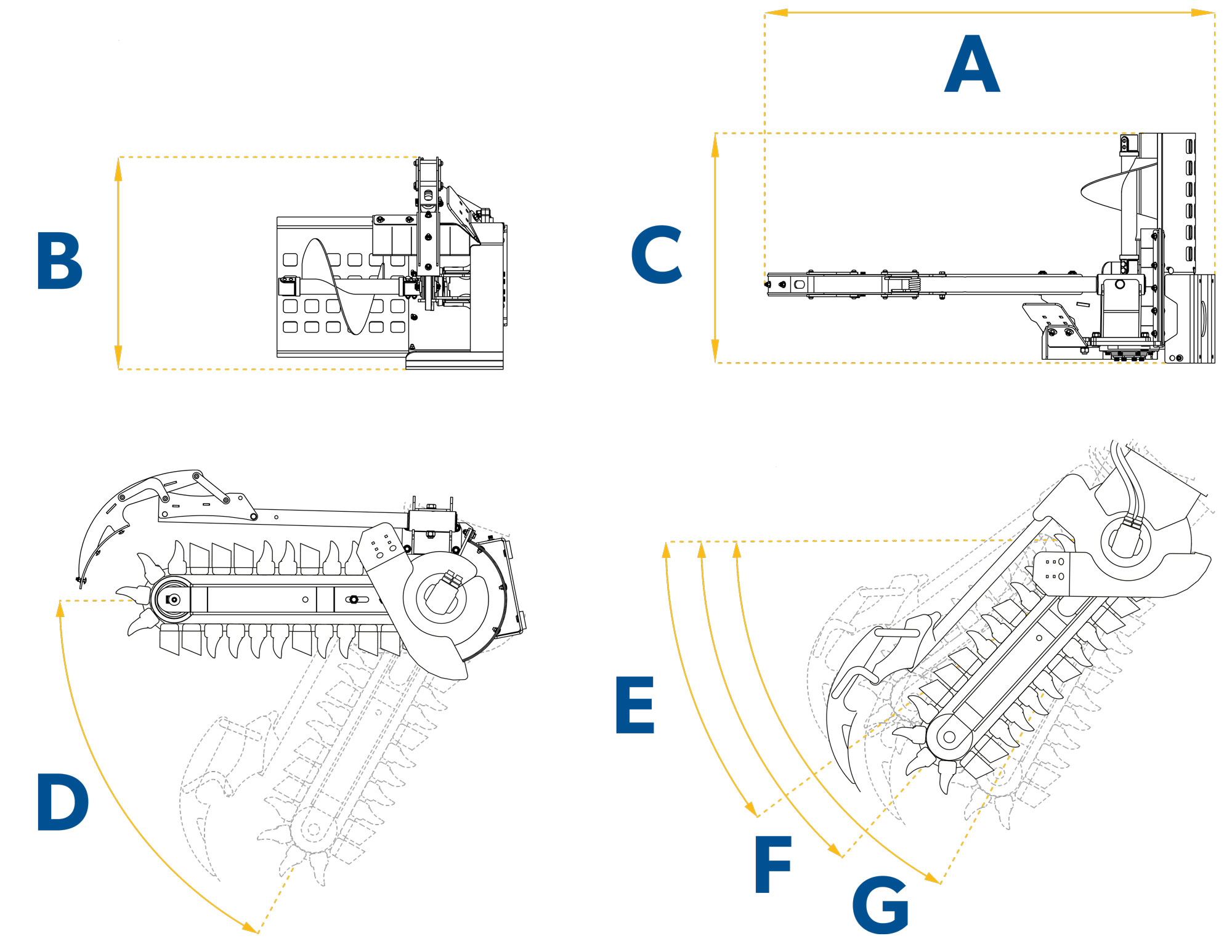

Technical Data | 600 | 900 | |
---|---|---|---|
A | Length | 1465mm | 1800mm |
B | Height | 736mm | 736mm |
C | Width | 850mm | 850mm |
D | Max Cutting Angle | 62° | 62° |
E | Cutting Depth Settings | 300mm | 600mm |
F | Cutting Depth Settings | 450mm | 750mm |
G | Cutting Depth Settings | 600mm | 900mm | Chain / Teeth Options | Earth / Tungsten / Combination | Earth / Tungsten / Combination |
Cutting Width Range (Chain Width) | 100-300mm | 100-300mm | |
Oil Pressure Range | 160-240 bar | 180-240 bar | |
Oil Flow Range | 35-65 lpm | 45-80 lpm | |
Weight | 300kg | 450kg |
