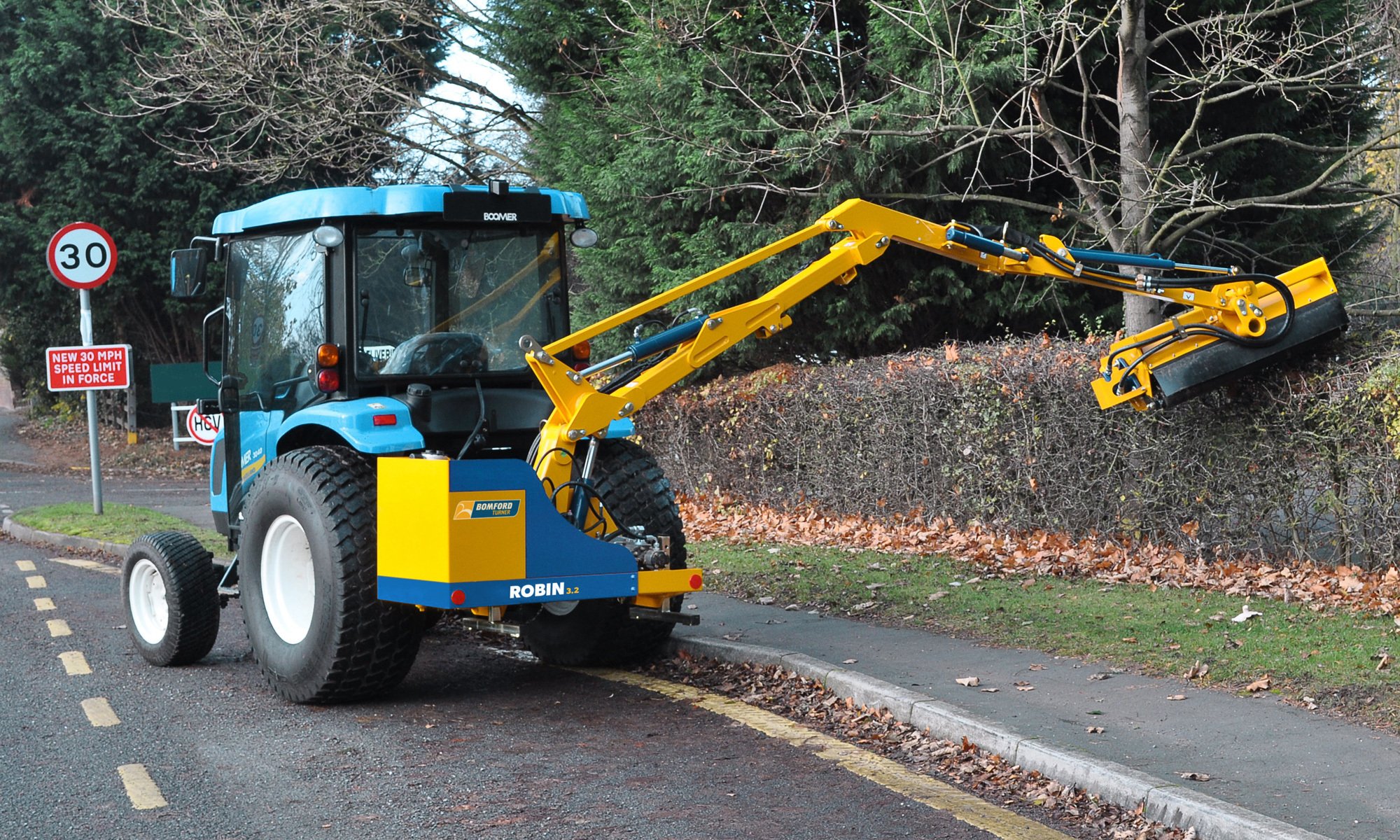

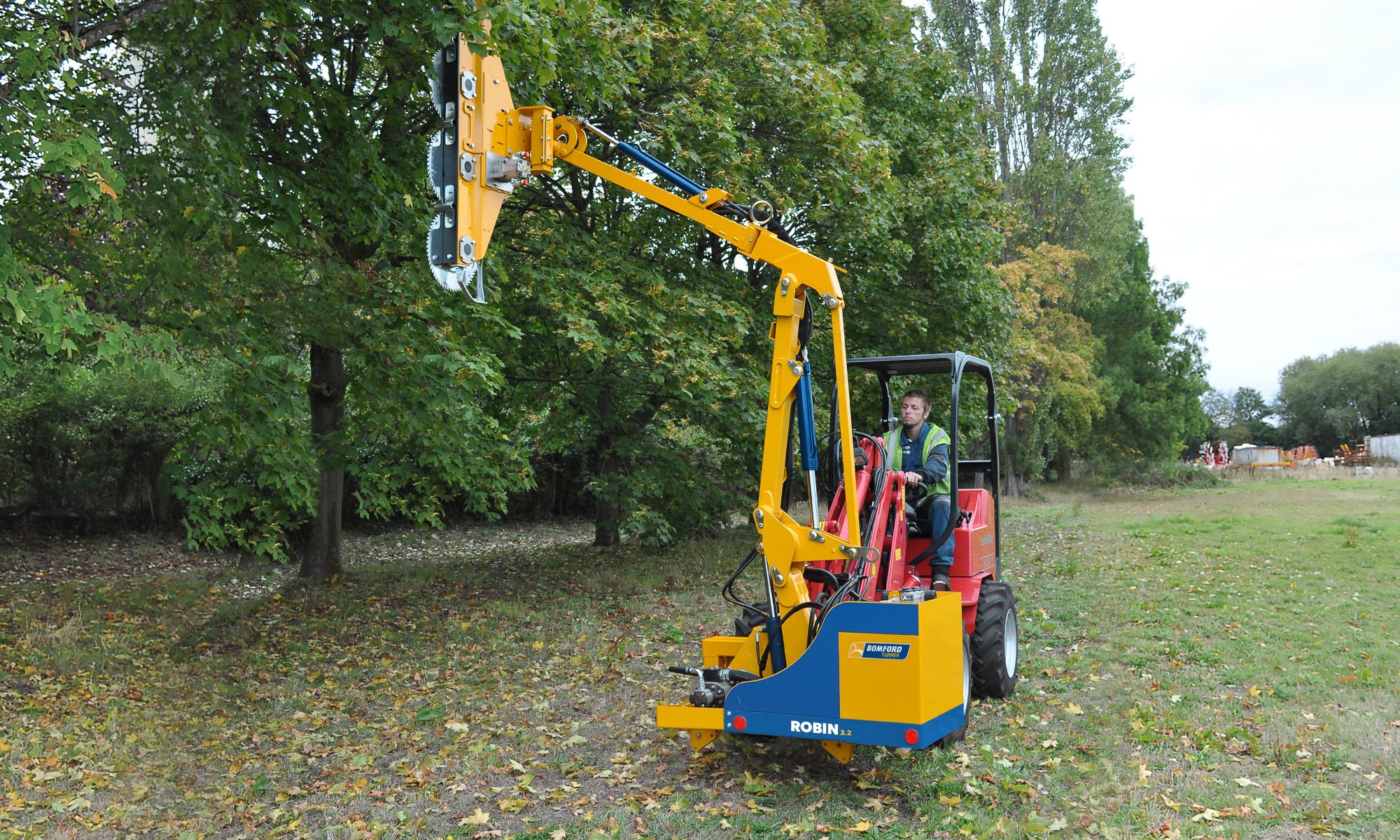

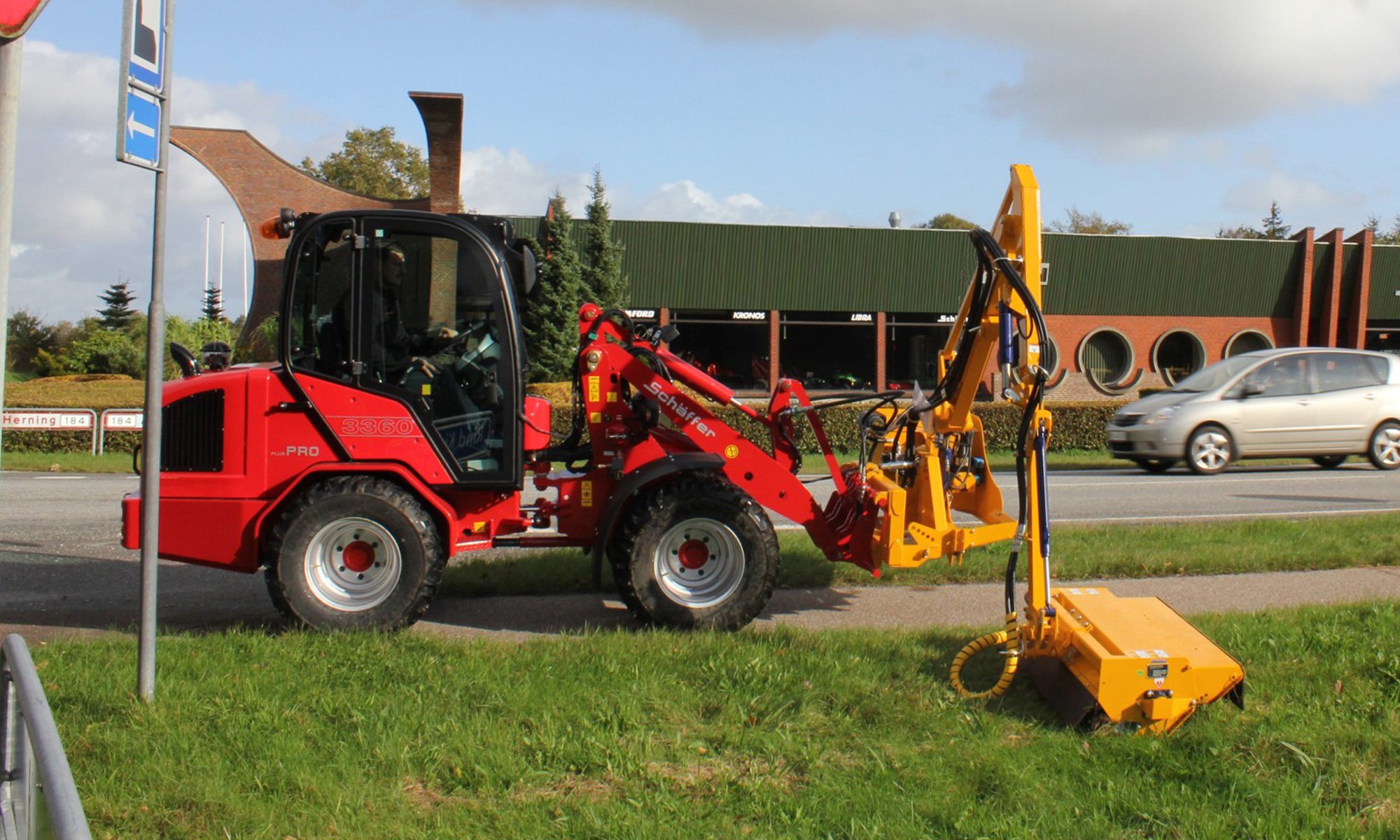

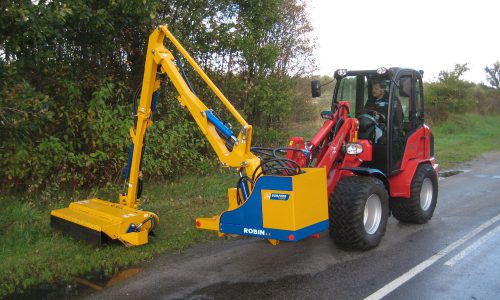

The Robin has many variants, and is available as front mount, along with small wheel loader and skid steer options.
Key Features
- 3.4m or 4.3m reach
- Parallel linkage as standard
- Hydraulic breakout on second arm standard
- End drive cutting head or cutter bar
- Electronic Proportional Controlled (EPC) optional
- Front mount option
- Low friction cable control
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Models |
3.4m (11’2″) |
4.3m (14’2″) |
Tractor Requirements
|
| Minimum Horse Power |
30-40hp |
30-40hp |
| Minimum Weight |
1300kg / 2866 Lbs |
1500kg / 3307Lbs |
Base Mounting Options
|
| Front Mount |
Optional |
Optional |
| Mid Mount |
Not Available |
Not Available |
| Rear Mount |
Standard |
Standard |
| Three Point Linkage (CAT II) |
Standard |
Standard |
| Axle Bracket |
Not Available |
Not available |
Overall Machine Parameters
|
| Machine weight |
594kg / 1310Lbs |
670kg / 1477Lbs |
| Capacity of oil tank |
80L / 17.6USG |
80L / 17.6 USG |
| Weight of machine with oil but without head |
464kg / 1023Lbs |
530kg / 1168Lbs |
Controls
|
| Cable control (CC) |
Standard |
Standard |
| Low pressure hydraulics (LPH) |
Not Available |
Not Available |
| Electronic proportional control (EPC) |
Optional |
Optional |
| Intelligent control system (ICS) |
Not Available |
Not Available |
| Cable rotor reverse |
Standard |
Standard |
| Electronic rotor reverse |
Optional |
Optional |
Hydraulic System
|
| System capability |
30hp |
30hp |
| Pump flow rate |
50L / 13.2USG |
50L / 13.2USG |
| Pump type (Gear / Piston / Helical) |
Gear |
Gear |
| Pump arrangement (Twin / Tandem Inline) |
Twin |
Twin |
| Independent hydraulics |
Standard |
Standard |
| Oil cooler |
Not Available |
Not Available |
Accessories
|
| Road lights |
Not Available |
Not Available |
| Debris blower |
Not Available |
Not Available |
| Warning arrow – Magnetic |
Optional |
Optional |
| Cab guard kit |
Standard |
Standard |
Arm features and main frame
|
| Telescopic arm |
Not Available |
Not Available |
| Telescopic arm stroke |
Not available |
Not available |
| Power slew |
Not available |
Not available |
| Power slew angle |
Not available |
Not Available |
| Gravity breakout |
Not available |
Not available |
| Hydraulic breakout |
Standard |
Standard |
| Armfloat – manual |
Optional |
Optional |
| Armfloat – electronic |
Optional |
Optional |
| Headfloat – manual |
Optional |
Optional |
| Headfloat – electronic |
Optional |
Optional |
| Left hand cutting |
Optional |
Optional |
| Right hand cutting |
Optional |
Optional |
Arm attachments available
|
| Variable track bracket (VTB) |
Not available |
Not available |
| Sheartrim cutter bar |
Optional |
Optional |
| Pro-Saw |
Optional |
Optional |
| Ditch Cleaner |
Not available |
Not available |
| Rotary head |
Not available |
Not available |
Cutting heads
|
| 1000mm flail head with 102mm roller |
Optional |
Optional |
| 1.2m and 1.5m cutterbars |
Optional |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
1000mm Head with 102mm Roller
|
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Working Reach dimensions
Head used for calcs: 905mm
| |
3.4m (11’2″) |
4.3m (14’2″) |
A
|
3.4m |
11’2″ |
4.3m |
14’2″ |
B
|
3.0m |
9’10” |
4.0m |
13’2″ |
C
|
1.98m |
6’6″ |
2.98m |
9’10” |
D
|
3.3m |
10’10” |
4.3m |
14’2″ |
E
|
4.3m |
14’11” |
5.3m |
17’5″ |
X
|
1.00m |
3’4″ |
1.00m |
3’4″ |
Y
|
1.34m |
4’7″ |
1.34m |
4’7″ |
