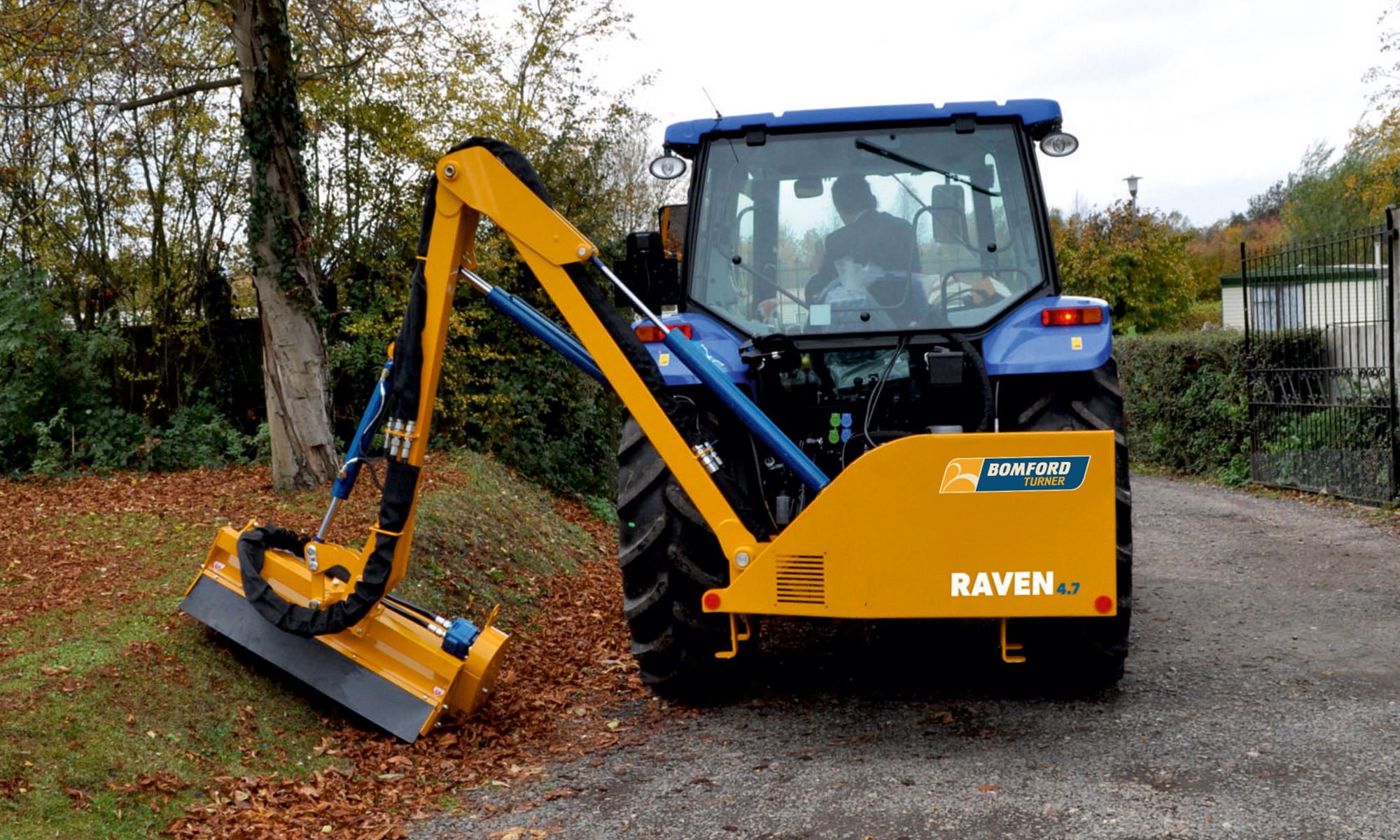

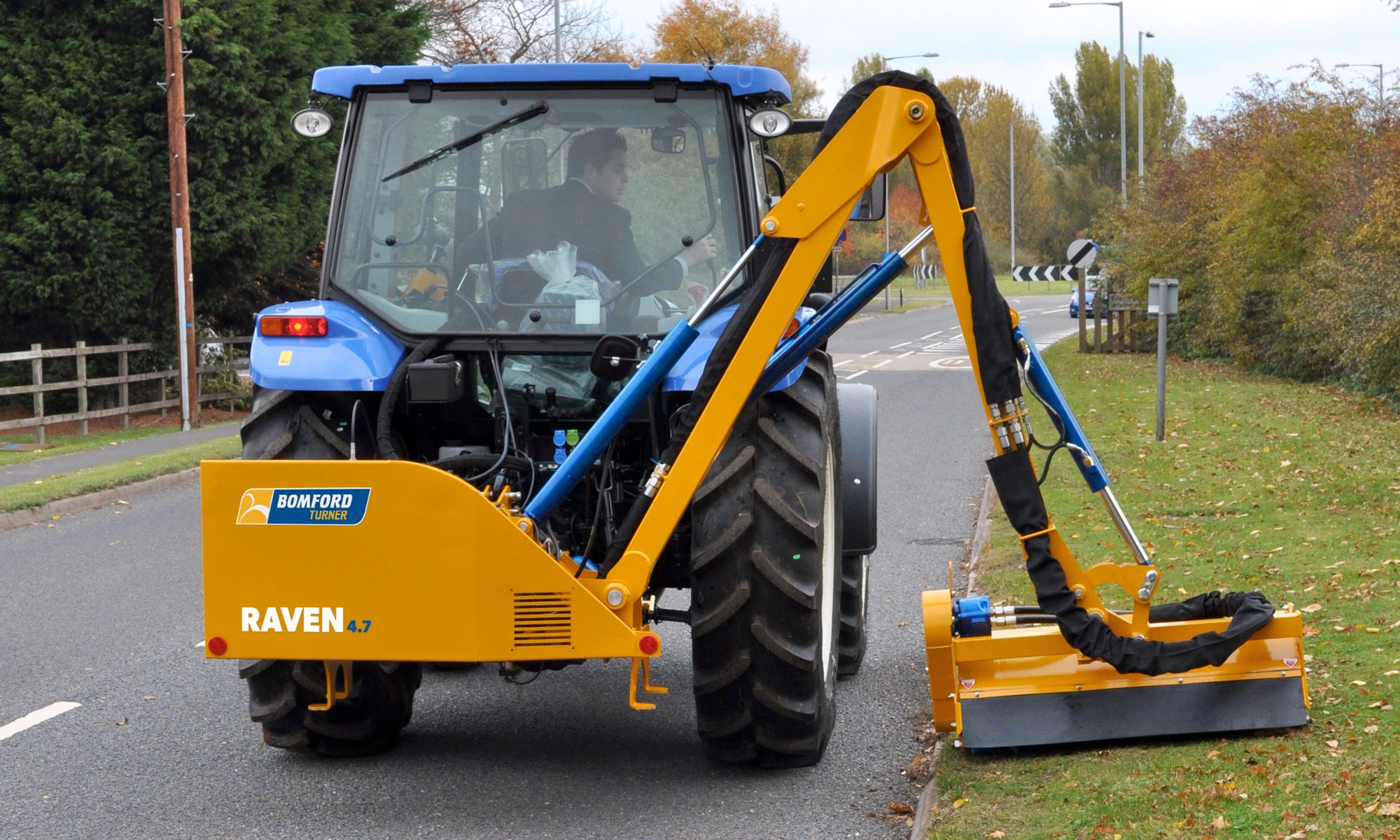

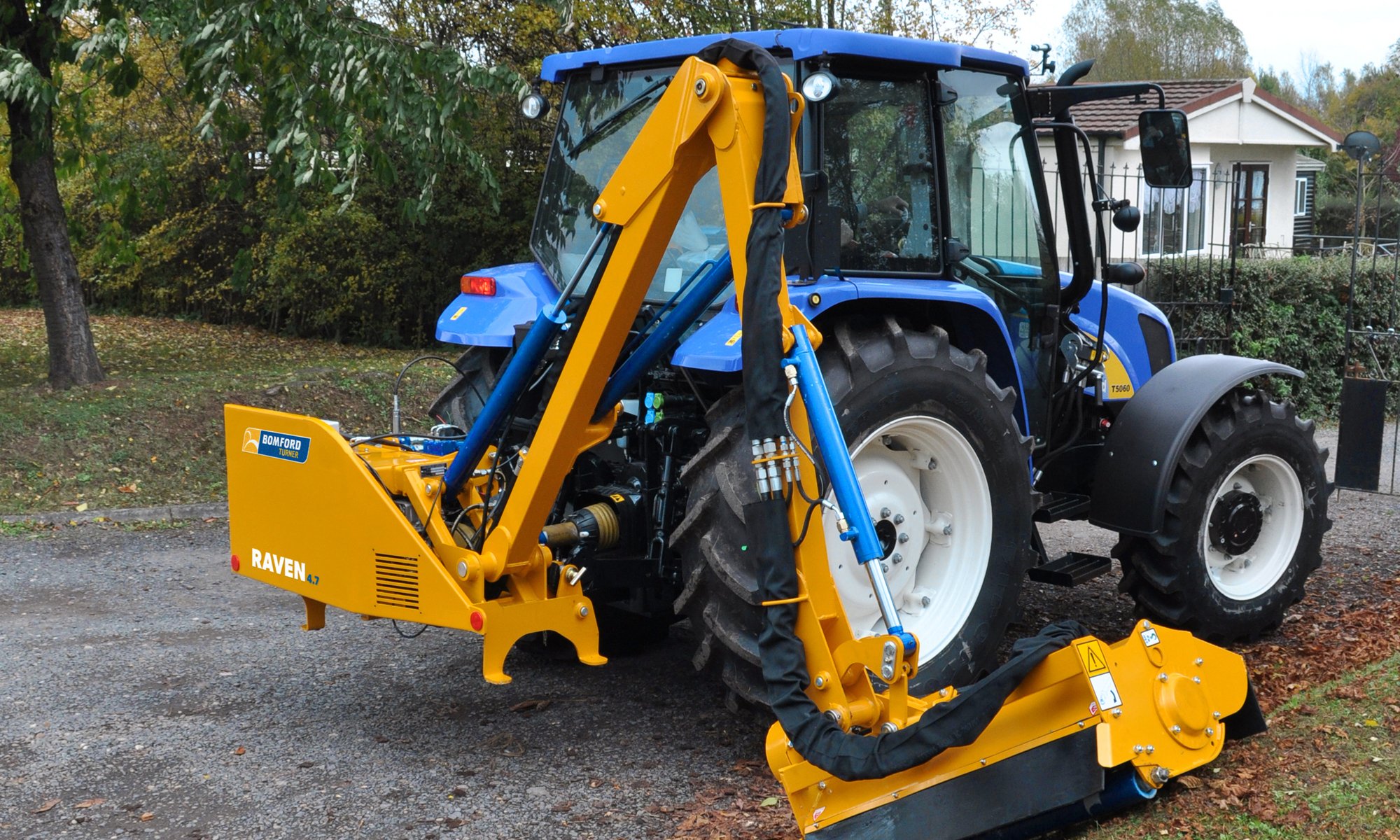

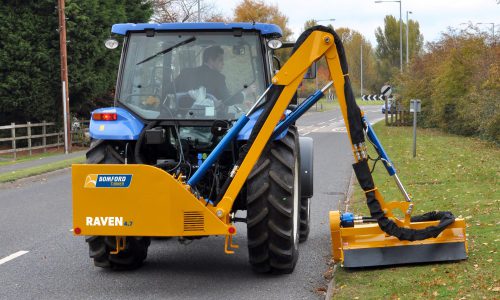

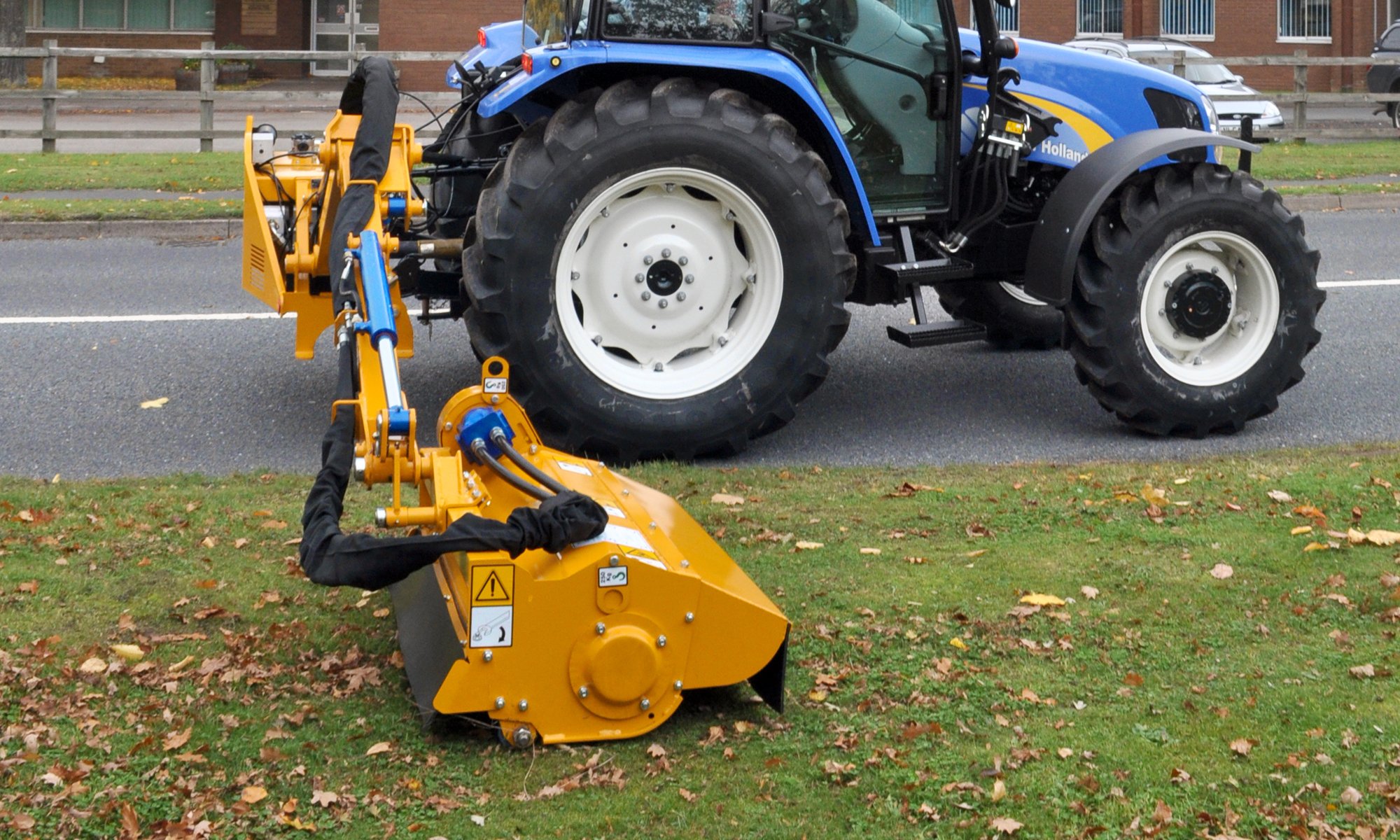

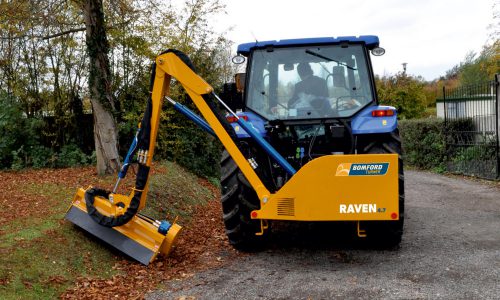

With a choice of 4.0m or 4.7m reach, and the familiar cable lever control the Raven can also be fitted with the popular LPH “Low Pressure Hydraulic” Joystick, which gives proportional control of the arm and switch control of the head angle. Arm float functions are available via buttons on the rear of the stick allowing ultimate control when operating the machinery, whether hedge cutting or verge mowing.
Key Features:
- Choice of 4.0m or 4.7m reach
- Direct drive cutting head or cutter bar
- Cable Control with options for LPH & EPP
- Chain Stabiliser kit
- Tubular 3 point linkage option
- Choice of flails
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Models |
4.0m (13’2″) |
4.7m (15’8″) |
Tractor Requirements
|
| Minimum horse power |
45hp |
45hp |
| Minimum weight |
1800kg / 3968Lbs |
2000kg / 4409Lbs |
Base Unit mounting options
|
| Front mount |
Not available |
Not available |
| Mid-mount |
Not available |
Not available |
| Rear mount |
Standard |
Standard |
| Three point linkage |
Standard |
Standard |
| Axle mount |
Not available |
Not available |
Overall machine parameters
|
| Machine weight with oil and head |
640kg / 1411Lbs |
680kg / 1499Lbs |
| Capacity of oil tank |
130L / 34.3USG |
130L / 34.3USG |
| Weight of machine with oil but without head |
545kg / 1202Lbs |
580kg / 1279Lbs |
Controls
|
| Cable Control CC |
Standard |
Standard |
| Low Pressure Hydraulic LPH |
Optional |
Optional |
| Electronic Proportional Control EPP3 |
Optional |
Optional |
| Intelligent Control System ICS |
Not available |
Not available |
| Cable Rotor Reverse |
Standard |
Standard |
| Electronic Rotor Reverse |
Optional |
Optional |
Hydraulic System
|
| System capability |
45hp |
45hp |
| Pump flow rate |
74L / 19.5USG |
74L / 19.5USG |
| Pump type (Gear G/Piston P) |
Gear |
Gear |
| Pump arrangment (Twin T/Tandem inline I) |
Twin |
Twin |
| Independant hydraulics |
Standard |
Standard |
| Oil cooler |
Optional |
Optional |
Main features
|
| Fixed forward arm |
Not Available |
Not Available |
| Folding forward arm |
Not Available |
Not Available |
| Variable forward arm |
Not Available |
Not Available |
| Telescopic arm |
Not Available |
Not Available |
| Telescopic arm stroke |
Not Available |
Not Available |
| Power slew |
Not Available |
Not Available |
| Power slew angle |
Not Available |
Not Available |
| Gravity breakout protection |
Standard |
Standard |
| Hydraulic breakout protection |
Not Available |
Not Available |
| Arm float manual operation |
Optional |
Optional |
| Arm float electronic operation |
Optional |
Optional |
| Head angle float |
Standard |
Standard |
| Left hand cutting |
Optional |
Optional |
| Right hand cutting |
Optional |
Optional |
| Twin sided cutting |
Not Available |
Not Available |
Arm attachments – compatability
|
| Variable track bracket VTB |
Not Available |
Not Available |
| Sheartrim cutter bar |
Optional |
Optional |
| Pro Saw |
Optional |
Optional |
| Ditch cleaner |
Not Available |
Not Available |
| Rotary head |
Not Available |
Not Available |
Accessories
|
| Road lights |
Not Available |
Not Available |
| Debris blower |
Not Available |
Not Available |
| Cab Guard kit |
Standard |
Standard |
Cutting heads
|
| 950mm head with 102mm roller |
Standard |
Standard |
| 1007mm head with 102mm roller |
Optional |
Optional |
| 1107mm head with 115mm roller |
Optional |
Optional |
| 1.5m sheartrim cutterbar |
Optional |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 950mm head with 102mm roller |
Not Available |
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| 1007mm head with 102mm roller |
Not Available |
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| 1107mm head with 115mm roller |
Not Available |
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Working Reach dimensions
Head used for calcs: 905mm
| |
4.0m (13’2″) |
4.7m (15’8″) |
A
|
4.0m |
13’2″ |
4.7m |
15’8″ |
B
|
3.52m |
11’7″ |
4.24m |
14′ |
C
|
2.51m |
8’3″ |
3.17m |
10’5″ |
D
|
2.77m |
9’1″ |
3.38m |
11’1″ |
E
|
4.12m |
13’6″ |
4.81m |
15’9″ |
X
|
1.00m |
3’4″ |
1.00m |
3’4″ |
Y
|
1.34m |
4’7″ |
1.34m |
4’7″ |
