Raptor

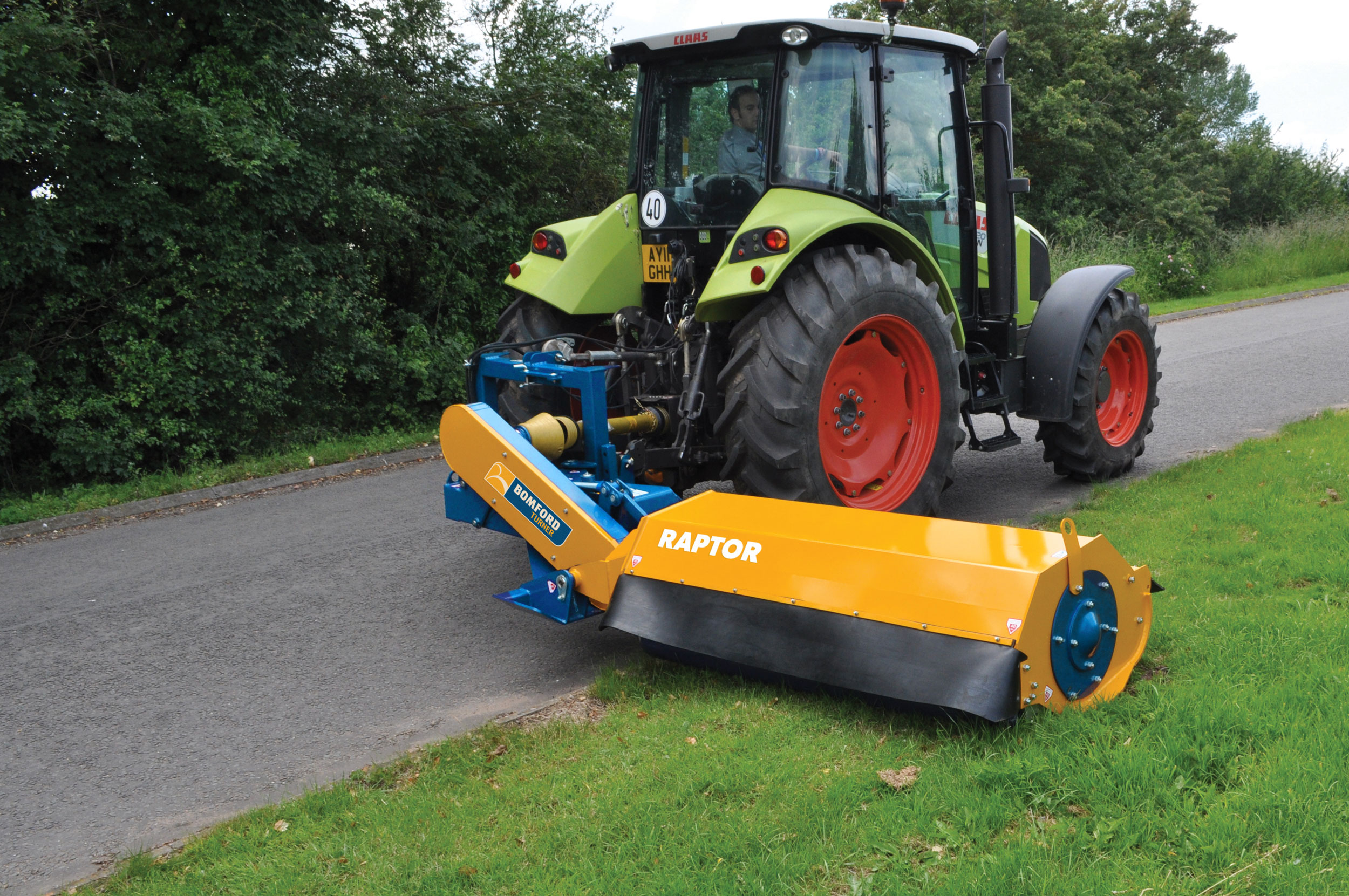

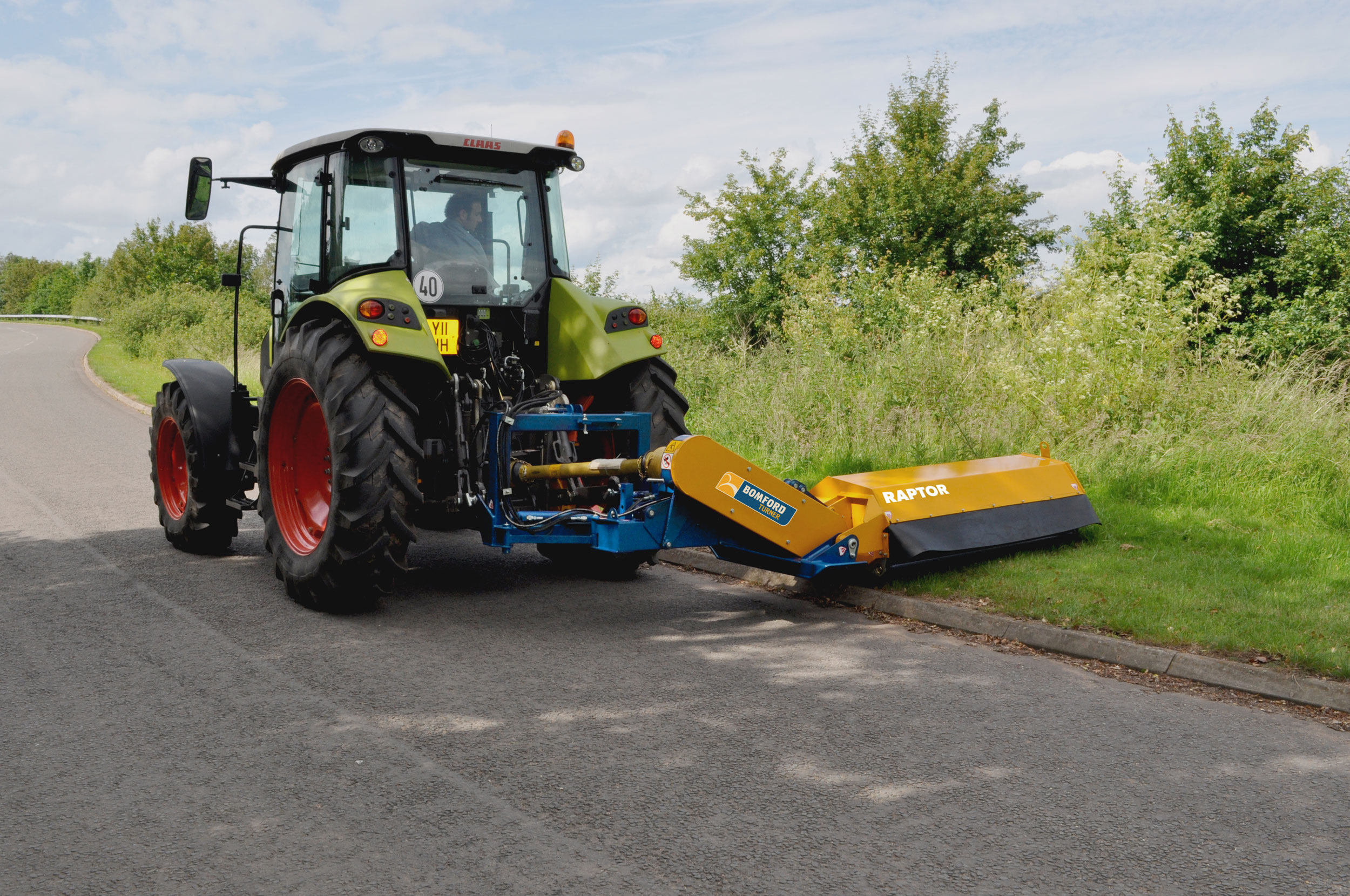

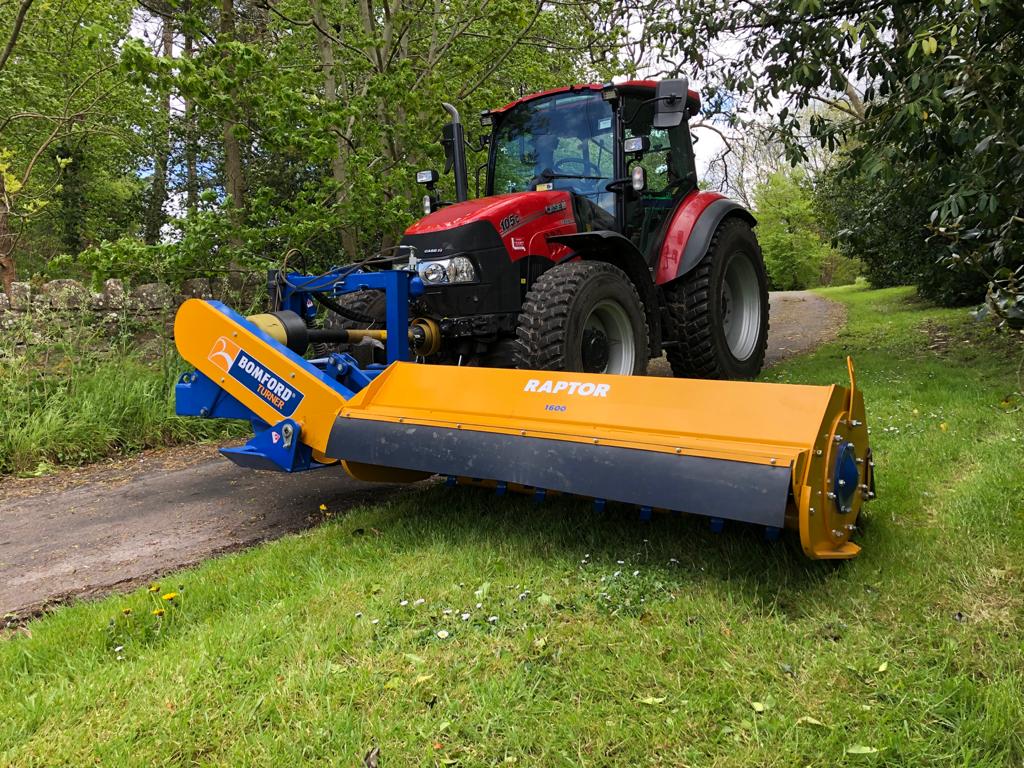

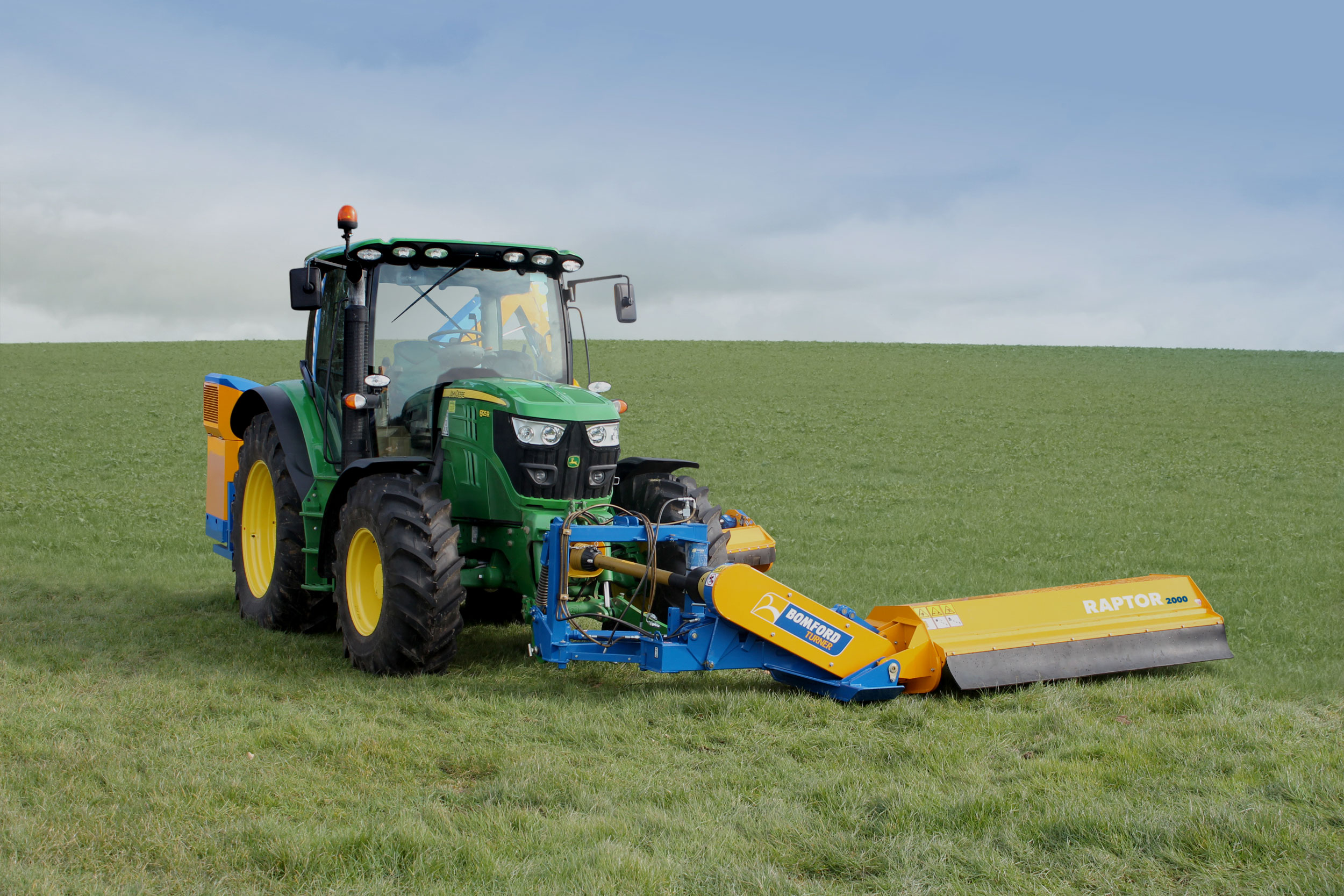

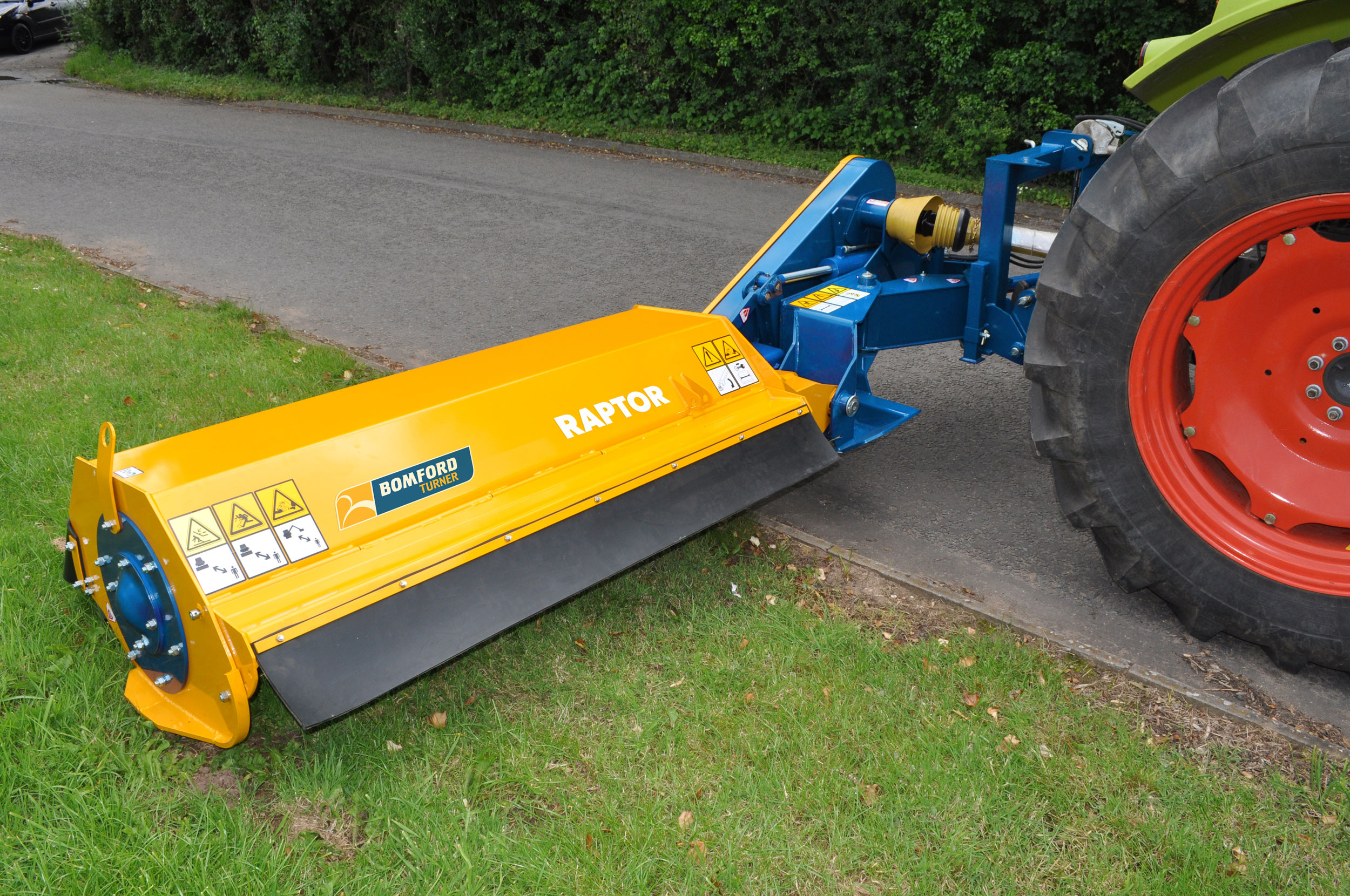

The new Raptor verge mower is the ideal choice for users who have a dedicated shoulder mowing operation to perform.

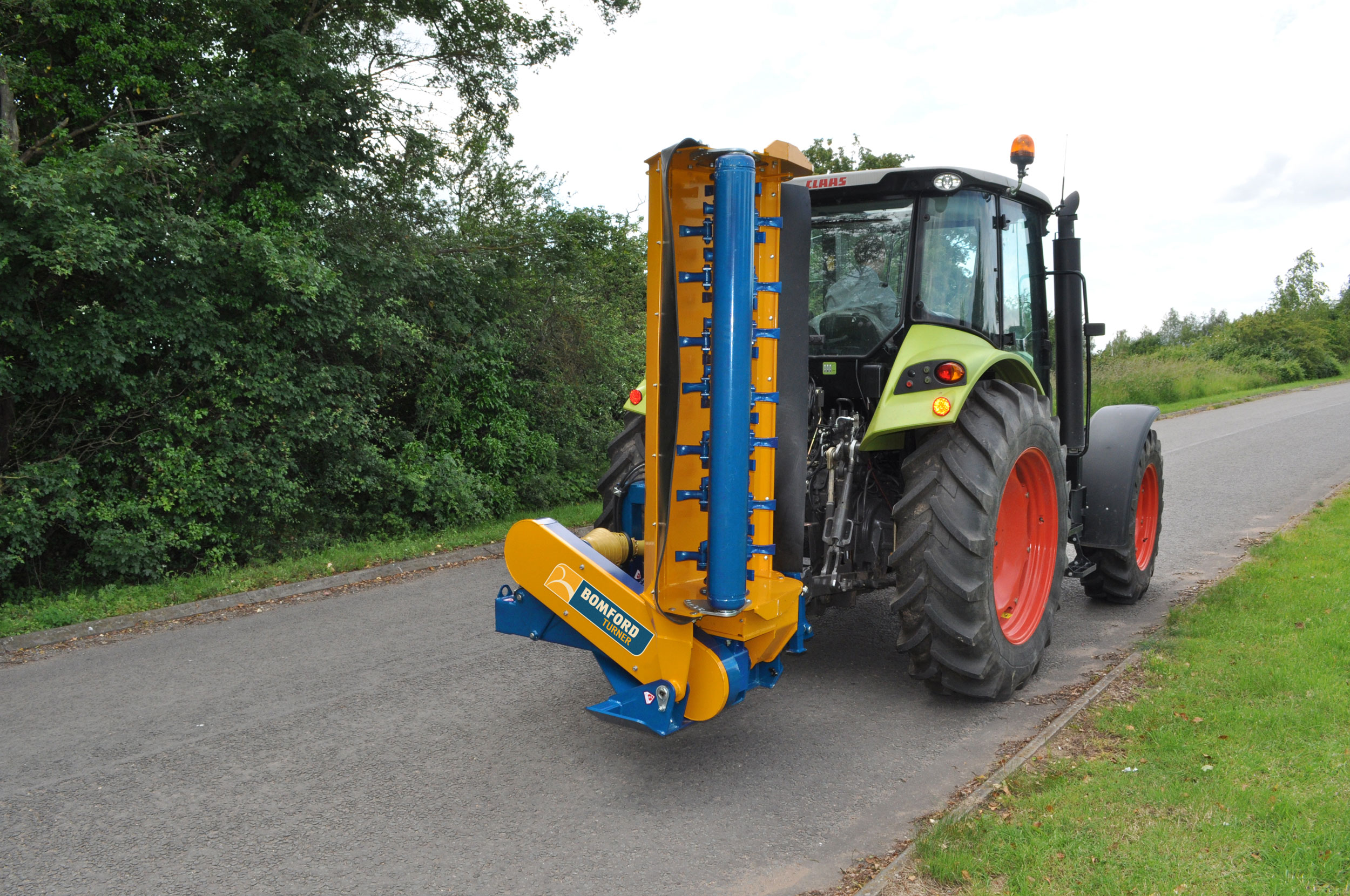

The Raptor can be front mounted allowing the fitting of a Bomford arm mower on the rear giving a 3.5m cut, in one pass. The Raptor can effortlessly work around street furniture and varying ground levels.

Key Features:

  • Cutting widths of: 1.2, 1.6 or 2.0m.
  • Front or Rear mounted options
  • Banks cutting between 90° up and 50° down

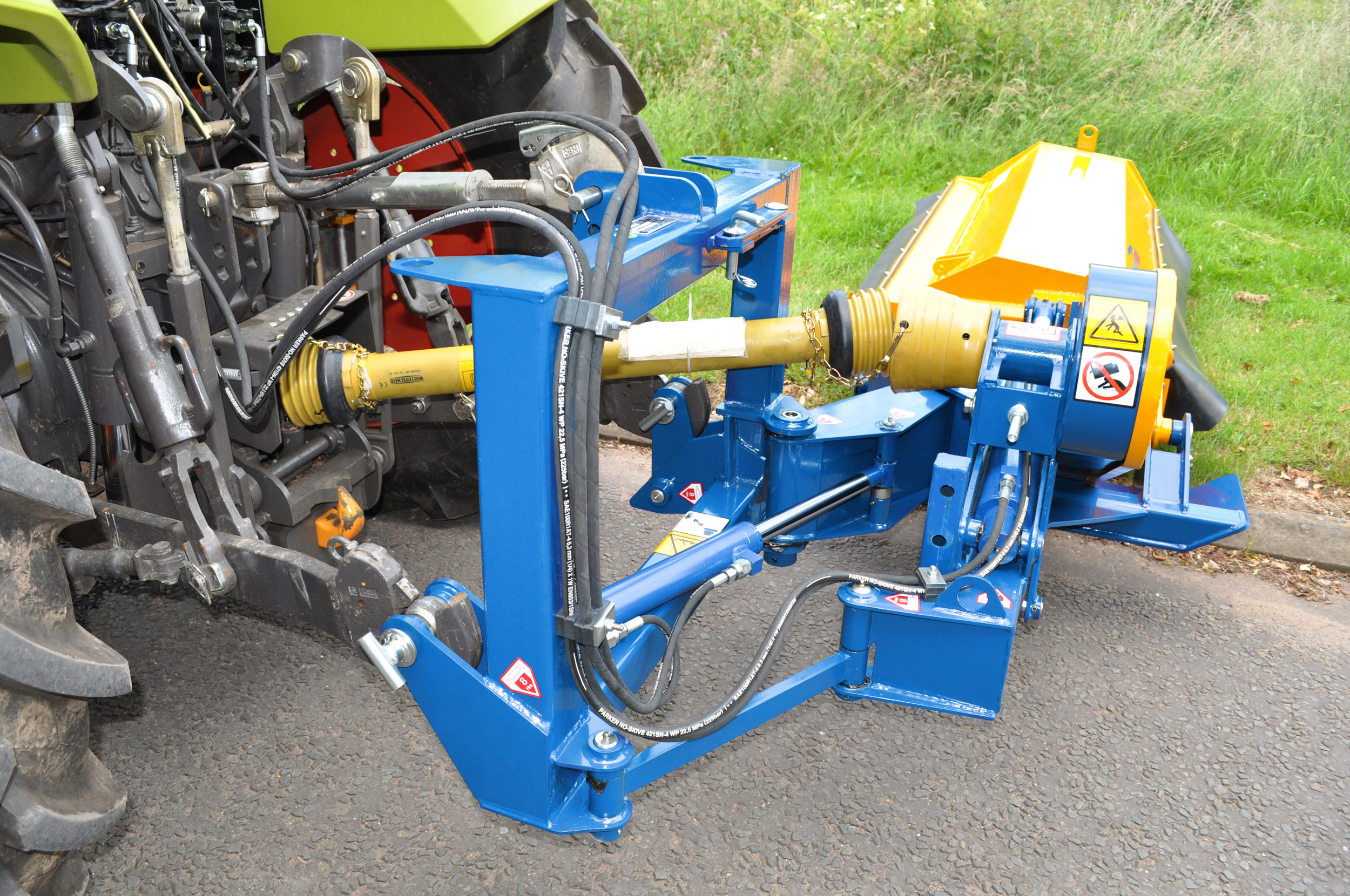

  • Cat II three point linkage
Models 1200 1600 2000
Reach 2.84m / 9’4″ 3.24m / 10’7″ 3.64m / 12″
Cutting width 1.2m / 4′ 1.6m / 5’3″ 2m / 6’6″
Max Offset 750mm / 2’6″ 750mm / 2’6″ 750mm / 2’6″
No. of Flails 32 44 54
PTO speed (rpm) 1000 / 540 1000 / 540 1000 / 540
Cowl angle movement 140° (+90° to -50°) 140° (+90° to -50°) 140° (+90° to -50°)
Power requirement 40hp 45hp 70hp
Weight (Approx) 620kg / 1367lbs 830kg / 1830lbs 900kg / 1984lbs
Front Mountable O O O
