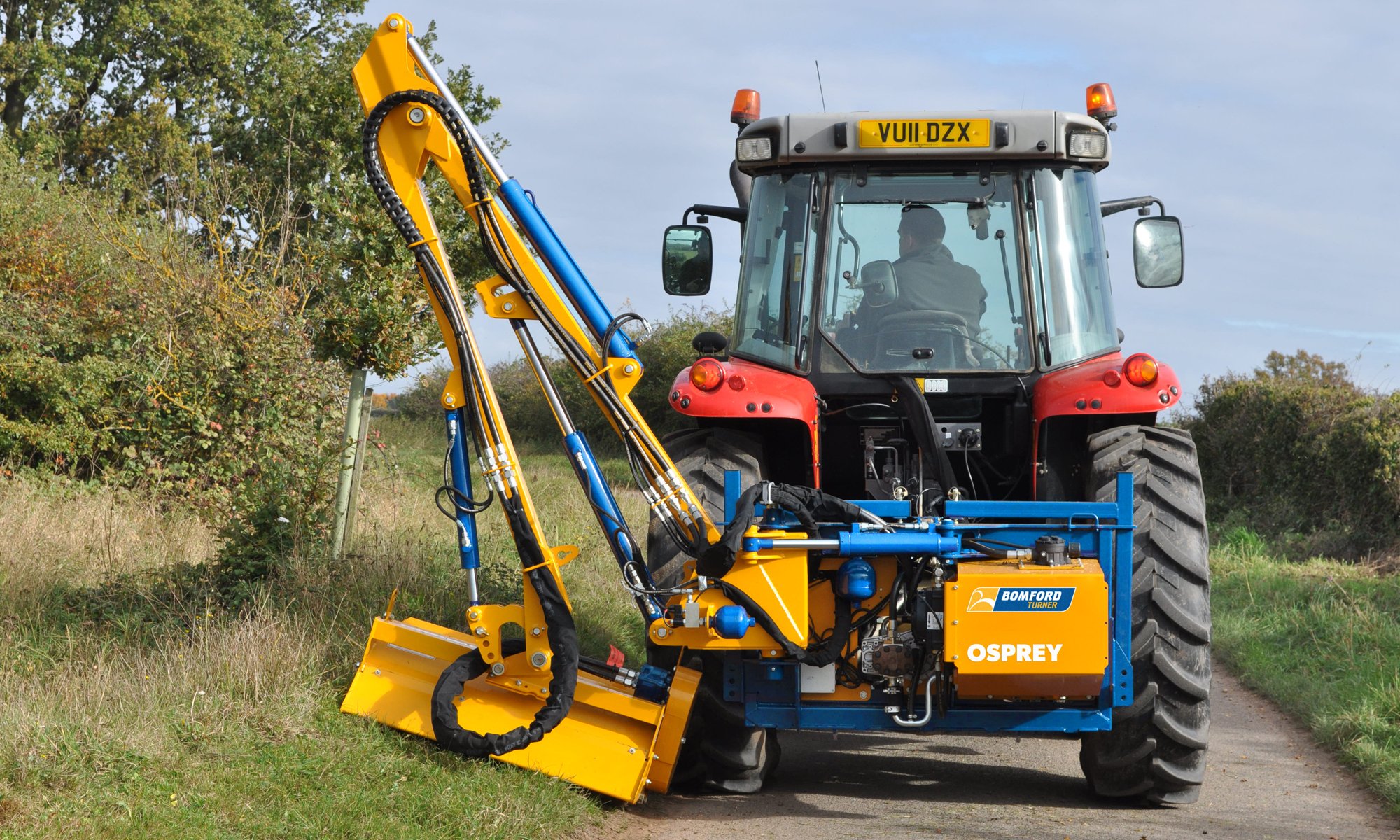

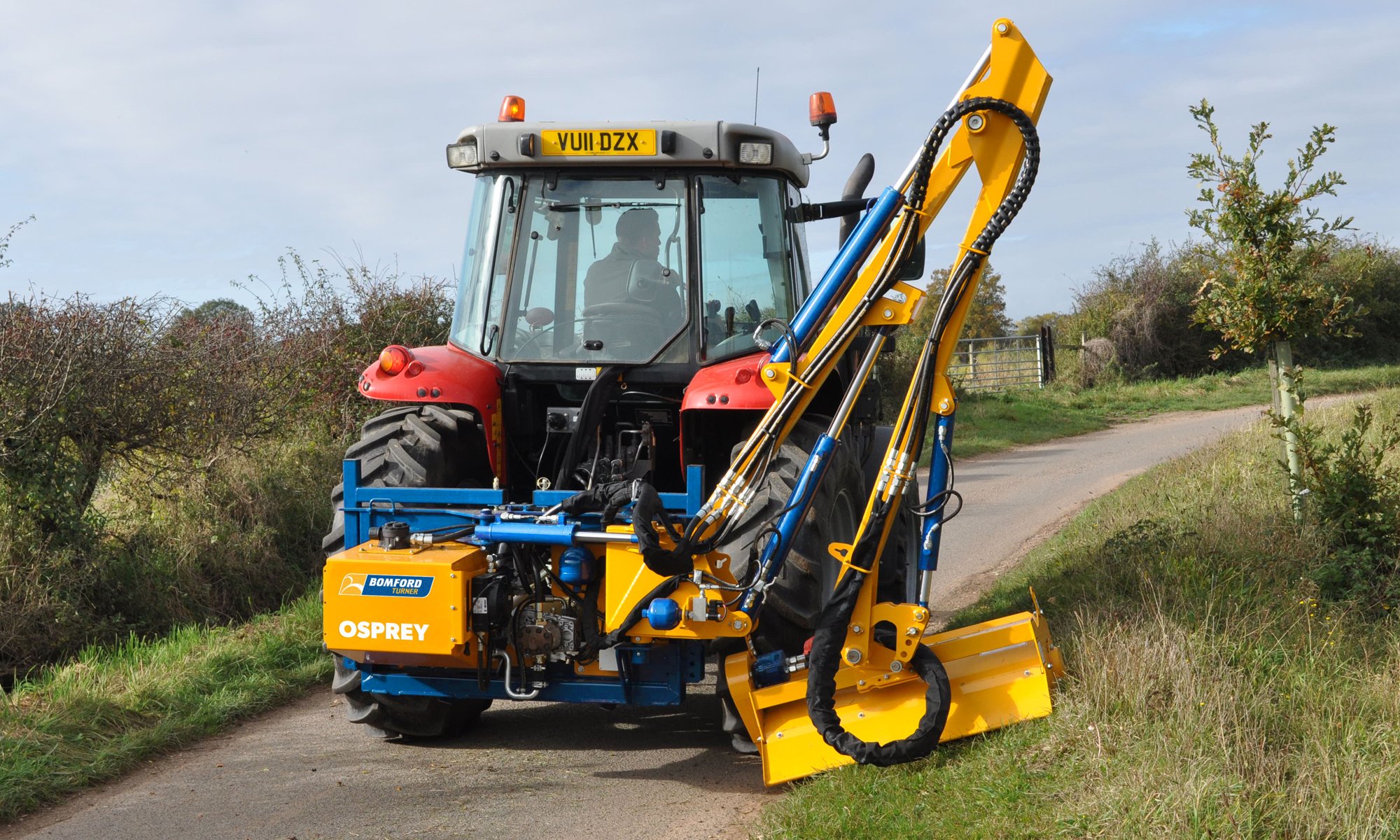

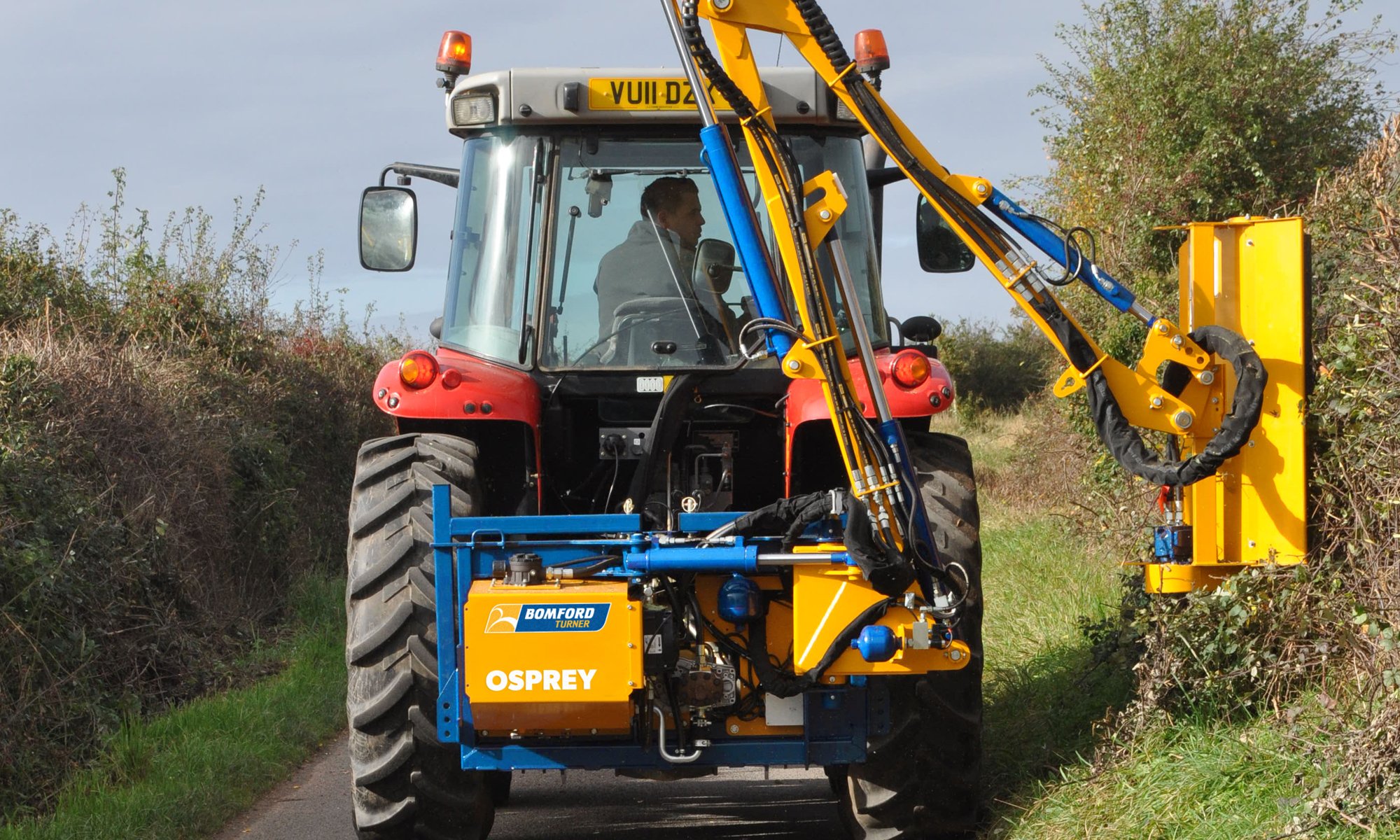

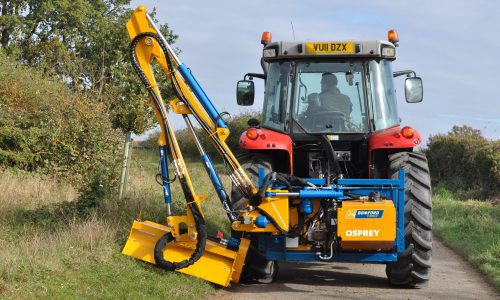

With a choice of 4.5m or 5.0m reach, with an impressive 110 degrees of power slew and hydraulic breakout as standard, the Osprey is ideal where access is a challenge to the operator. The mainframe of the machine is close coupled to the tractor and this allows the machine to be fitted to smaller tractors than most other competitor models on the market.
Arm attachments can include a choice of flail heads for control of grass, hedges and light brush along with the Sheartrim cutter bar or Pro-Saw attachments for control of heavier brush.
Key Features:
- 4.5 – 5.0m reach options
- Choice of heads
- Low friction cable,LPH or EPP controls
- Three point linkage mounted
- 110° power slew
- Hydraulic breakout protection
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Specification |
4.5m (14’9″) |
5.0m (16’5″) |
Tractor Requirements
|
| Minimum horse poser |
70hp |
75hp |
| Minimum weight |
2300kg/ 5070Lbs |
2500kg / 5512Lbs |
Base Unit mounting options
|
| Front mount |
Not available |
Not available |
| Mid-mount |
Not available |
Not available |
| Rear mount |
Standard |
Standard |
| Three point linkage (CAT II) |
Standard |
Standard |
| Axle bracket |
Not available |
Not available |
Overall machine parameters
|
| Machine weight with head and oil |
820kg / 1808Lbs |
860kg / 1896Lbs |
| Capacity of oil tank |
130L / 34.3USG |
130L / 34.3 USG |
| Weight of machine with oil but without head |
745kg / 1642Lbs |
775kg / 1709Lbs |
Controls
|
| Cable Control (CC) |
Standard |
Standard |
| Low Pressure Hydraulic (LPH) |
Optional |
Optional |
| Electronic Proportional Control (EPP) |
Optional |
Optional |
| Intelligent Control System (ICS) |
Not available |
Not available
|
| Cable rotor reverse |
Standard |
Standard |
| Electronic rotor reverse |
Optional |
Optional |
Hydraulic System
|
| System capability |
45hp |
45hp |
| Pump flow rate |
74L / 19.5USG |
74L / 19.5USG |
| Pump type (Gear / Piston / Helical) |
Gear |
Gear |
| Pump arrangment (Twin/Tandem Inline) |
Twin |
Twin |
| Independant hydraulics |
Standard |
Standard |
| Oil cooler |
Optional |
Optional |
Main features
|
| Fixed forward arm |
Not Available |
Not Available |
| Folding forward arm |
Not Available |
Not Available |
| Variable folding arm |
Not Available |
Not Available |
| Telescopic arm |
Not Available |
Not Available |
| Telescopic arm stroke |
Not Available |
Not Available |
| Power slew |
Standard |
Standard |
| Power slew angle |
110° |
110° |
| Gravity breakout protection |
Not Available |
Not Available |
| Hydraulic breakout protection |
Standard |
Standard |
| Arm float – manual operation |
Optional |
Optional |
| Arm float – electronic operation |
Optional |
Optional |
| Head angle float |
Standard |
Standard |
| Left hand cutting |
Optional |
Optional |
| Right hand cutting |
Optional |
Optional |
| Left and right hand cutting |
Not Available |
Not Available |
Arm attachments – compatability
|
| Variable track bracket (VTB) |
Not Available |
Not Available |
| Sheartrim cutter bar |
Optional |
Optional |
| Pro-Saw |
Optional |
Optional |
| Ditch cleaner |
Not Available |
Not Available |
| Rotary head |
Not Available |
Not Available |
Accessories
|
| Road lights |
Not Available |
Not Available |
| Debris blower |
Not Available |
Not Available |
| Cab guard kit |
Standard |
Standard |
Cutting heads
|
| 950mm head 102mm roller |
Standard |
Standard |
| 1000mm head 102mm roller |
Optional |
Optional |
| 1257mm head 102mm roller |
Optional |
Optional |
| 1257mm head 150mm roller |
Optional |
Optional |
| 1107mm head 115mm roller |
Optional |
Optional |
| 1.5m sheartrim cutterbar |
Optional |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 905mm Head with 102mm Roller |
Not Available |
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Optional |
Not Available |
1000mm Head with 102mm Roller
|
Not Available |
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Optional |
Not Available |
| 1257mm head with 102mm roller |
Not Available |
Standard |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| 1257mm head with 150mm roller |
Not Available |
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| 1107mm head with 115mm roller |
Not Available |
Not Available |
Standard |
Not Available |
Not Available |
Not Available |
Optional |
Not Available |
Working Reach dimensions
Head used for calcs: 950mm
| |
4.5m (14’9″) |
5.0m (16’5″) |
A
|
4.55m |
14’11” |
5.0m |
16’5″ |
B
|
4.33m |
14’2″ |
4.8m |
15’9″ |
C
|
2.3m |
7’6″ |
2.8m |
9’6″ |
D
|
3.7m |
12’1″ |
4.2m |
13’9″ |
E
|
4.7m |
15’5″ |
5.2m |
17″ |
X
|
1.00m |
3’4″ |
1.00m |
3’4″ |
Y
|
1.34m |
4’7″ |
1.34m |
4’7″ |
