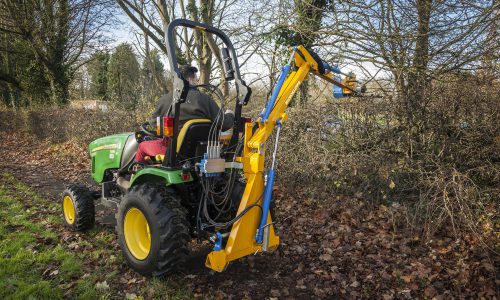

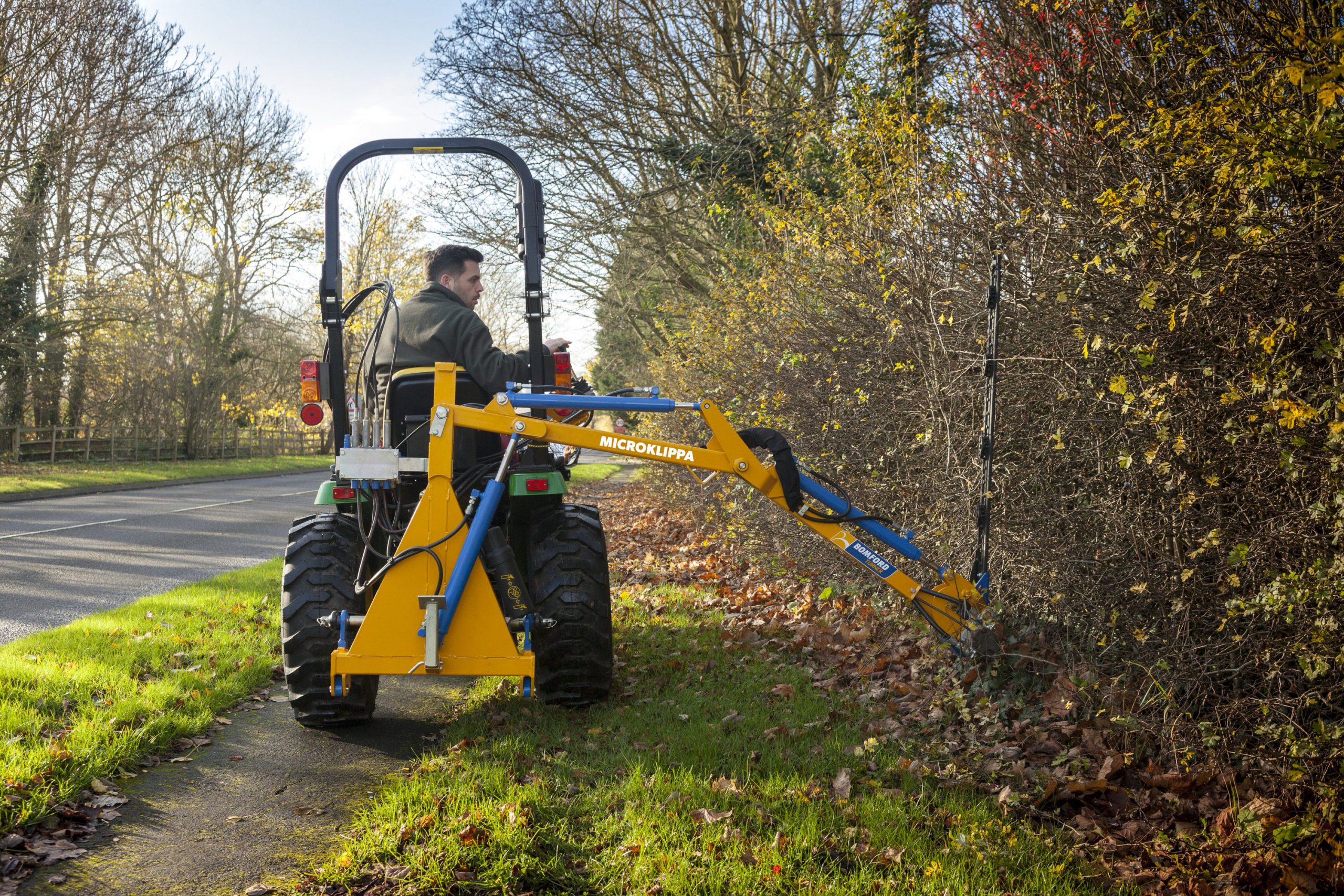

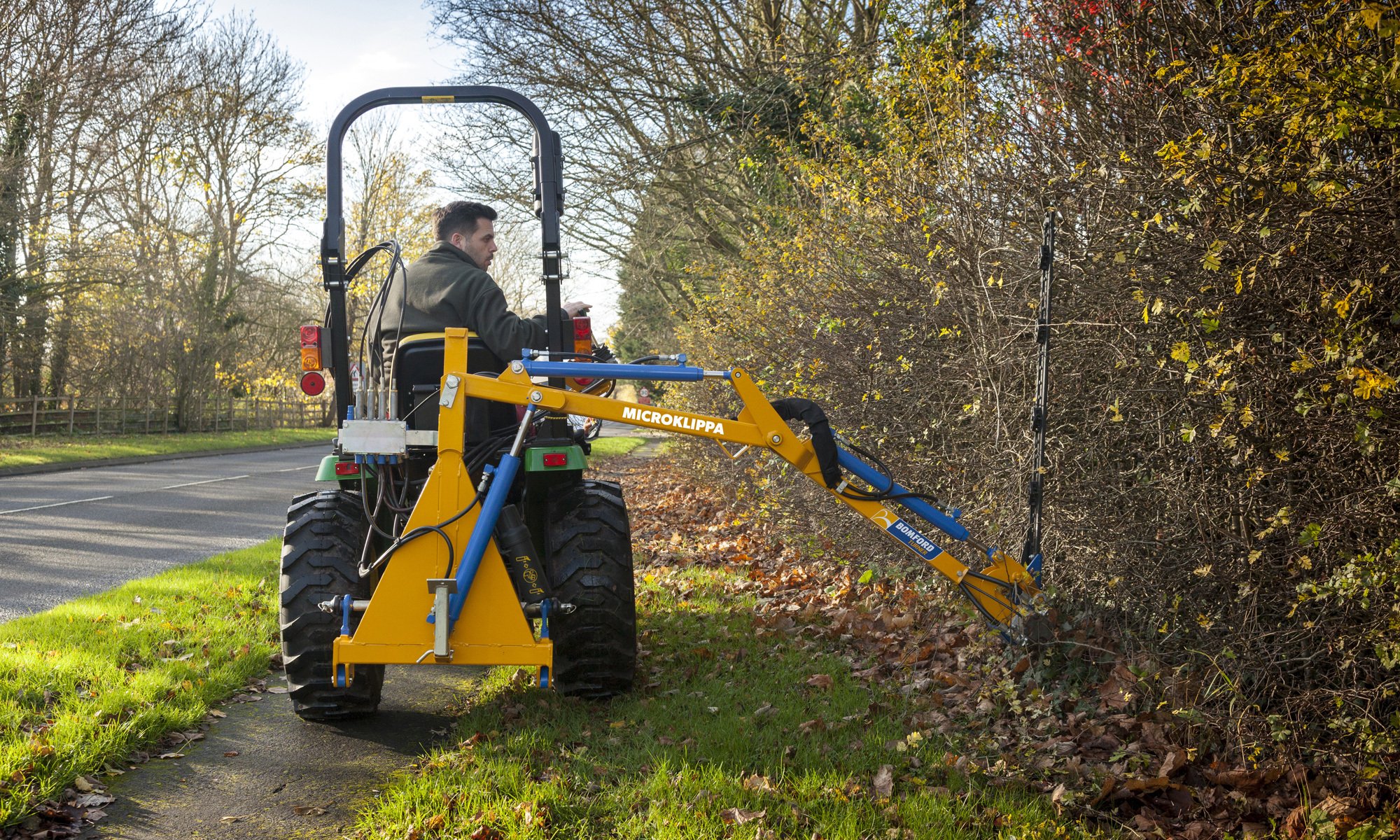

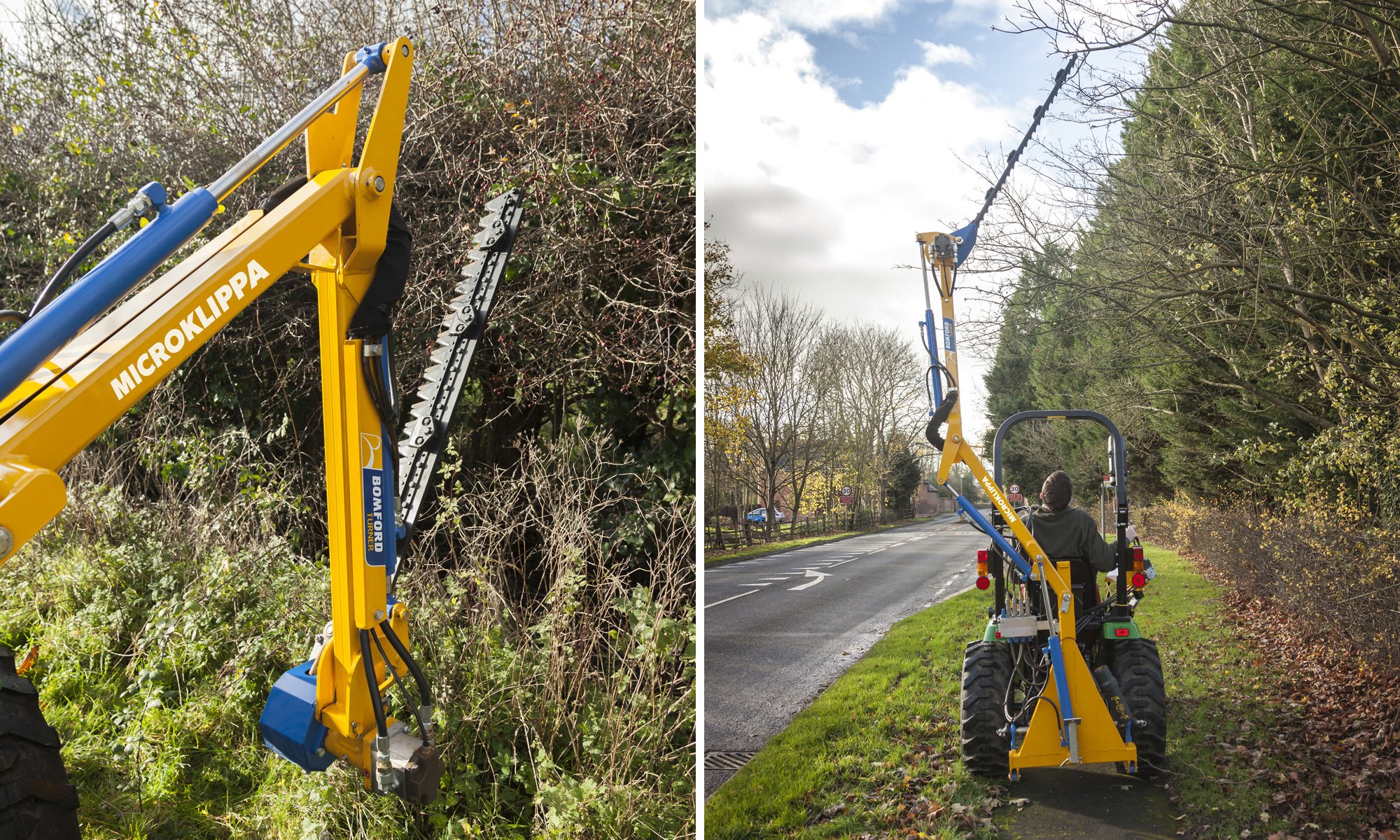

The Microklippa is very popular with estate managers and horticulturists who admire the Microklippa’s fine cutting capabilities when hedge trimming and the versatility of the right or left hand cutting.

The Microklippa can be used on a range of power units from small compact tractors to small pivot steer loaders, in conjunction with a front mount kit.

Key Features:

3.2m or 3.5m reach
Left or Right hand cutting (swing over capability)
Cable or Electronic Proportional Controlled (EPC) options
Front mount option and 16-22 litres per minute.

Product Specifications

Standard = Standard Optional = Optional Not Available = Not Available

Models	3.2m (10’5″)	3.5m (11’5″)
Tractor Requirements
Minimum Horse Power	15hp	15hp
Minimum Weight	550kg / 1213lbs	550kg / 1213lbs
Base Mounting Options
Front Mount	Not available	Not available
Mid Mount	Not available	Not available
Rear Mount	Standard	Standard
Three Point Linkage (CAT II)	Standard	Standard
Axle Bracket	Not available	Not available
Overall Machine Parameters
Machine weight	192kg / 423lbs	201kg / 443lbs
Capacity of oil tank	Not available	Not available
Controls
Cable control (CC)	Standard	Standard
Low pressure hydraulics (LPH)	Not available	Not available
Electronic proportional control (EPC)	Optional	Optional
Intelligent control system (ICS)	Not available	Not available
Cable rotor reverse	Not available	Not available
Electronic rotor reverse	Not available	Not available
Arm features and main frame
Telescopic arm	Not available	Not available
Telescopic arm stroke	Not available	Not available
Power slew	Not available	Not available
Power slew angle	Not available	Not available
Gravity breakout	Standard	Standard
Hydraulic breakout	Not available	Not available
Armfloat – manual	Not available	Not available
Armfloat – electronic	Not available	Not available
Headfloat – manual	Not available	Not available
Headfloat – electronic	Not available	Not available
Left hand cutting	Not available	Not available
Right hand cutting	Not available	Not available
Left and right hand cutting	Standard	Standard
Cutting heads
Rotary Head	Not available	Not available
1.2m and 1.5m cutterbars	Optional	Optional
Ditch cleaner	Not available	Not available

Working Reach dimensions

Head used for calculations: 1.2m Cutterbar

	3.2m (10’5)		3.5m (11’5)
A	3.10m	10’2″	3.4m	11’2″
B	3.20m	10’6″	3.50m	11’6″
C	2.00m	6’6″	2.30m	7’7″
D	3.10m	10’2″	3.50m	11’6″
E	4.20m	13’9″	4.50m	14’9″
X	1.00m	3’4″	1.00m	3’4″
Y	1.34m	4’7″	1.34m	4’7″
