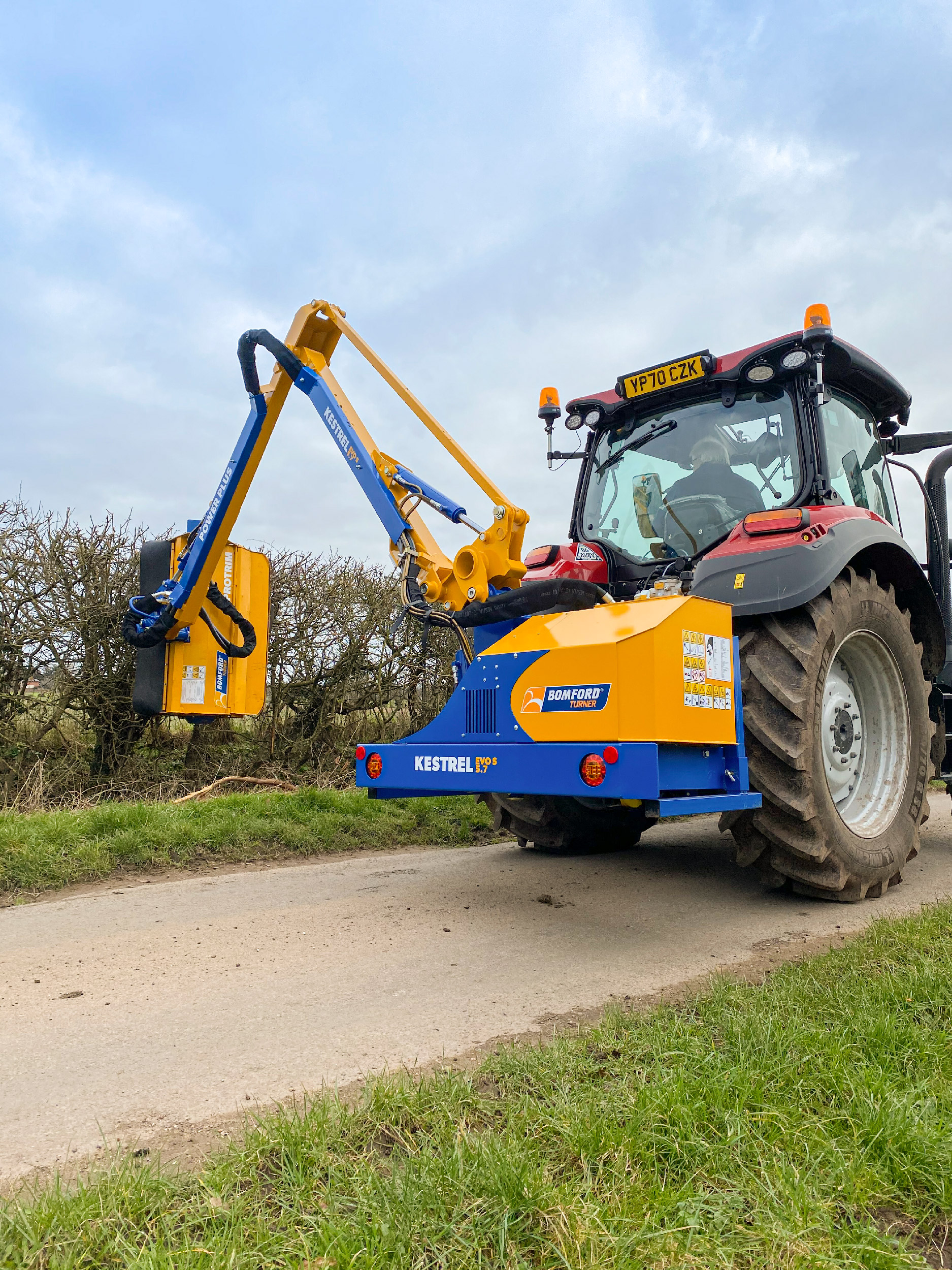

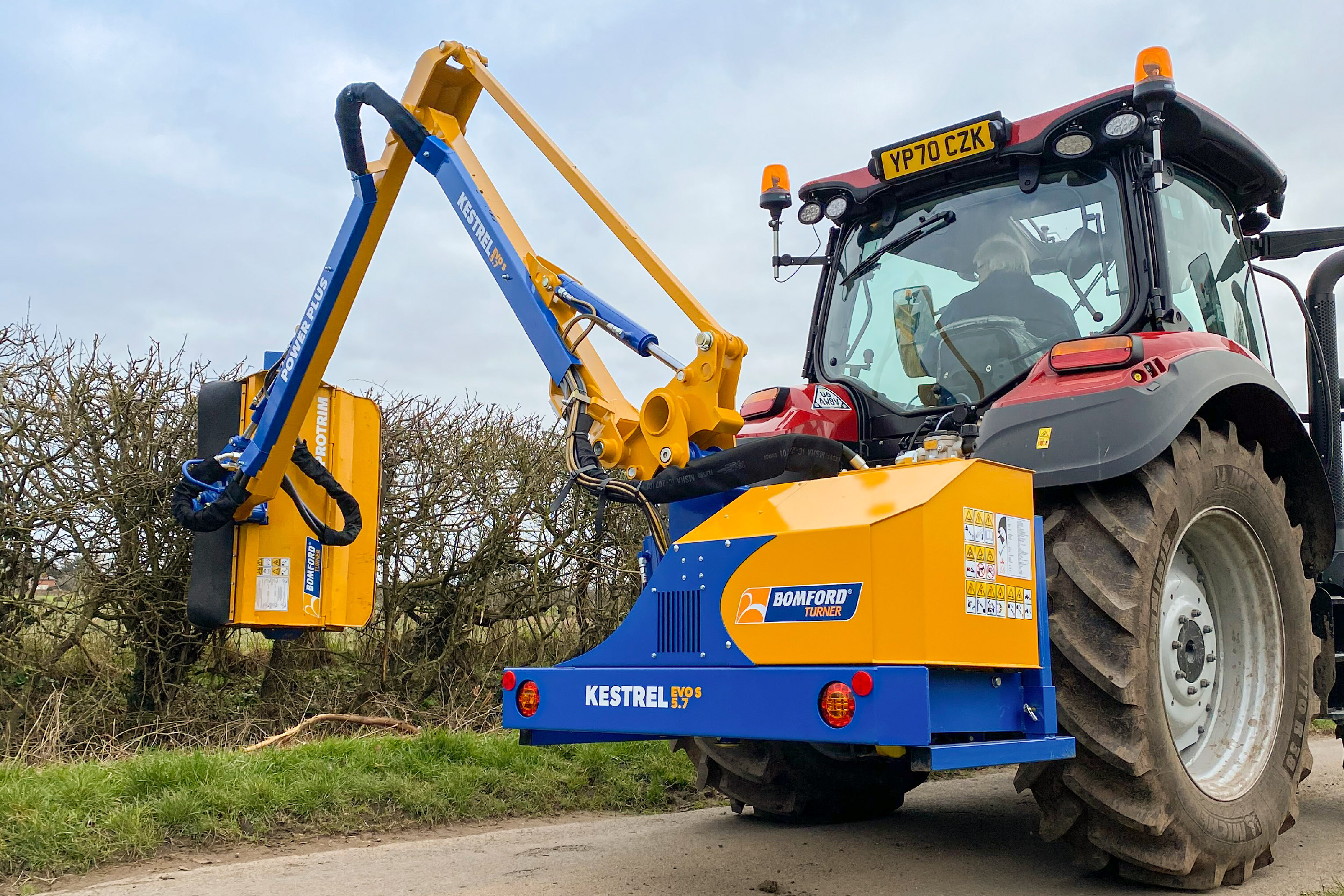

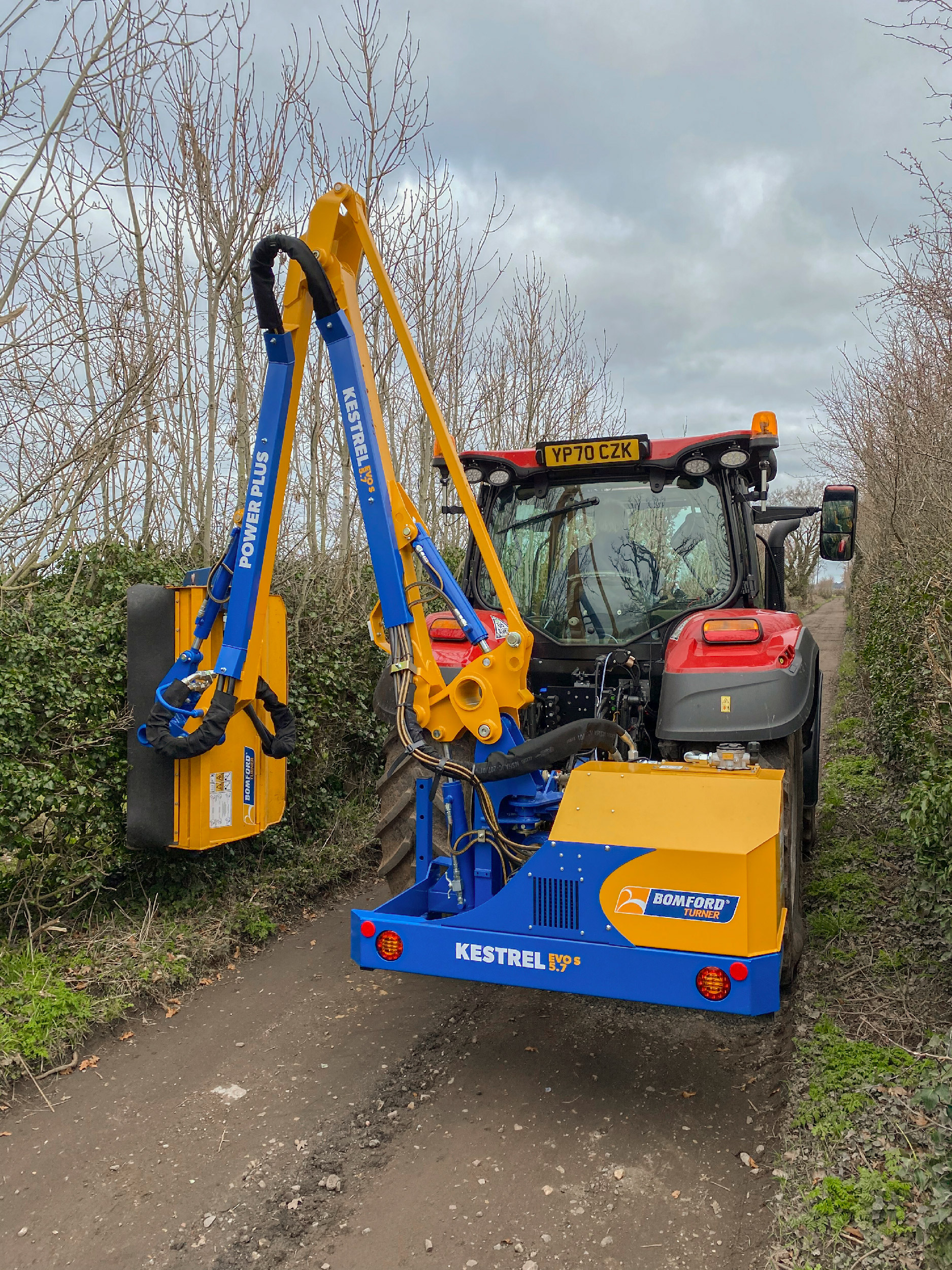

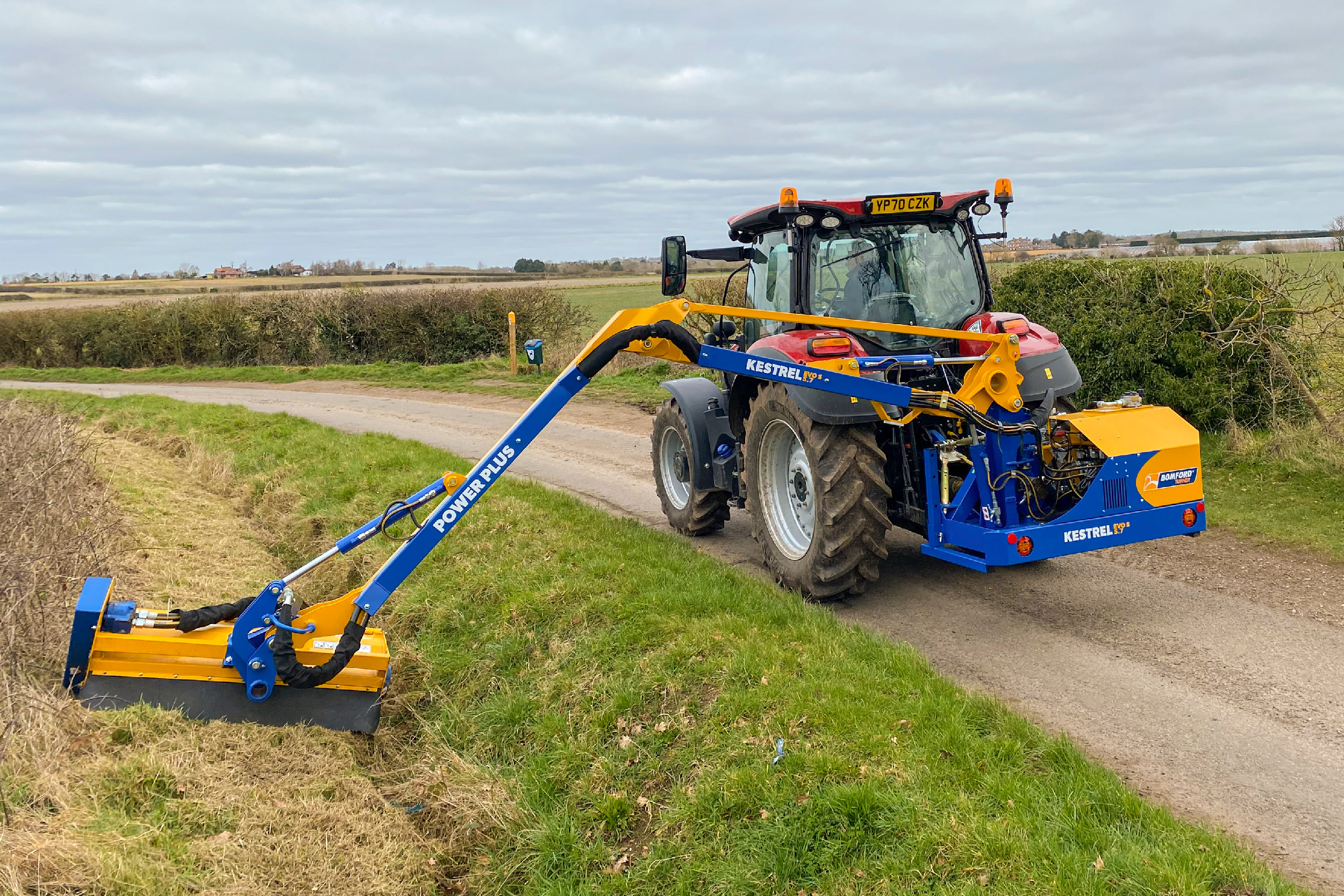

These features include integral road lighting, tubular 3 point linkage and power slew with hydraulic breakout.
Key Features:
- 5.0m & 5.7m reaches
- 60hp gear pumps
- Parallel arm standard
- Choice of flails, heads and cutter bars
- Power slew
- Steel hose covers standard
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Specification |
5.0m P (16’5″) |
5.7m P (18’8″) |
Tractor Requirements
|
| Minimum horse power |
50hp |
60hp |
| Minimum weight |
3000kg / 6614Lbs |
3500kg / 7716Lbs |
Base Unit mounting options
|
| Front mount |
Optional |
Optional |
| Mid-mount |
Not available |
Not available |
| Rear mount |
Standard |
Standard |
| Three point linkage (CAT II) |
Standard |
Standard |
| Axle bracket |
Not available |
Not available |
| Sub Frame |
Not available |
Not available |
| Yoke |
Not available |
Not available |
Overall machine parameters
|
| Machine weight with head and oil |
1180kg / 2601Lbs |
1210kg / 2268Lbs |
| Capacity of oil tank |
160L / 42.3USG |
160L / 42.3USG |
| Weight of machine with oil but without head |
940kg / 2072Lbs |
970kg / 2139Lbs |
Controls
|
| Cable Control (CC) |
Optional |
Optional |
| Low Pressure Hydraulic (LPH) |
Optional |
Optional |
| Electronic Proportional Control (EPP) |
Optional |
Optional |
| Intelligent Control System (ICS) |
Standard |
Standard |
| Cable rotor reverse |
Optional |
Optional |
| Electronic rotor reverse |
Optional |
Optional |
Hydraulic System
|
| System capability |
60hp |
60hp |
| Pump flow rate |
100L / 26.4Usg |
100L / 26.4Usg |
| Pump type (Gear / Piston / Helical) |
Gear |
Gear |
| Pump arrangment (Twin / Tandem Inline) |
Twin |
Twin |
| Independant hydraulics |
Standard |
Standard |
| Oil cooler |
Optional |
Optional |
Arm features and main frame
|
| Forward arm |
Optional |
Not Available |
| Telescopic arm |
Not Available |
Not Available |
| Telescopic arm stroke |
Not Available |
Not Available |
| Power slew |
Standard |
Standard |
| Power slew angle |
94° |
94° |
| Gravity breakout protection |
Not available |
Not available |
| Hydraulic breakout protection |
Standard |
Standard |
| Arm float – manual operation |
Optional |
Optional |
| Arm float – electronic operation |
Optional |
Optional |
| Head float – manual operation |
Standard |
Standard |
| Head float – electronic operation |
Optional |
Optional |
| Left hand cutting |
Optional |
Optional |
| Right hand cutting |
Optional |
Optional |
| Left and right hand cutting |
Not Available |
Not Available |
Arm attachments available
|
| Variable track bracket (VTB) |
Not Available |
Not Available |
| Sheartrim cutter bar |
Optional |
Optional |
| Pro-Saw |
Optional |
Optional |
| Ditch cleaner |
Not Available |
Not Available |
| Rotary head |
Optional |
Optional |
Accessories
|
| Road lights |
Standard |
Standard |
| Debris blower |
Optional |
Optional |
| Cab Guard kit |
Standard |
Standard |
Cutting heads
|
| 1.2m Pro Trim head with 115mm roller |
Standard |
Standard |
| 1.2m Pro Trim head with 150mm roller |
Standard |
Standard |
| 1.2m Pro-Trim ISMP with 115mm Roller |
Optional |
Optional |
| 1.2m Pro-Trim ISMP with 150mm Roller |
Optional |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 1.2m Pro-Trim head with 102mm roller |
Optional |
Optional |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| 1.2m Pro-Trim head with 150mm roller |
Optional |
Standard |
Optional |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| 1.2m Pro Trim ISMP with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Not Available |
| 1.2m Pro Trim ISMP with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Not Available |
Working Reach dimensions
Head used for calcs: 1.2m Pro-Trim
| |
5.0m P (16’5″) |
5.7m P (18’8″) |
| A |
4.87m |
15’12” |
5.7m |
18’8″ |
| B |
4.94m |
16’3″ |
5.87m |
19’3″ |
| C |
3.3m |
10’10” |
4.08m |
13’5″ |
| D |
3.97m |
13′ |
4.77m |
15’8″ |
| E |
5.62m |
18’5″ |
6.45m |
21’2″ |
| X |
1.3m |
4’1″ |
1.3m |
4’1″ |
| Y |
1.0m |
3’4″ |
1.0m |
3’4″ |
