Bomford Turner
Landscape • Arm Mowers

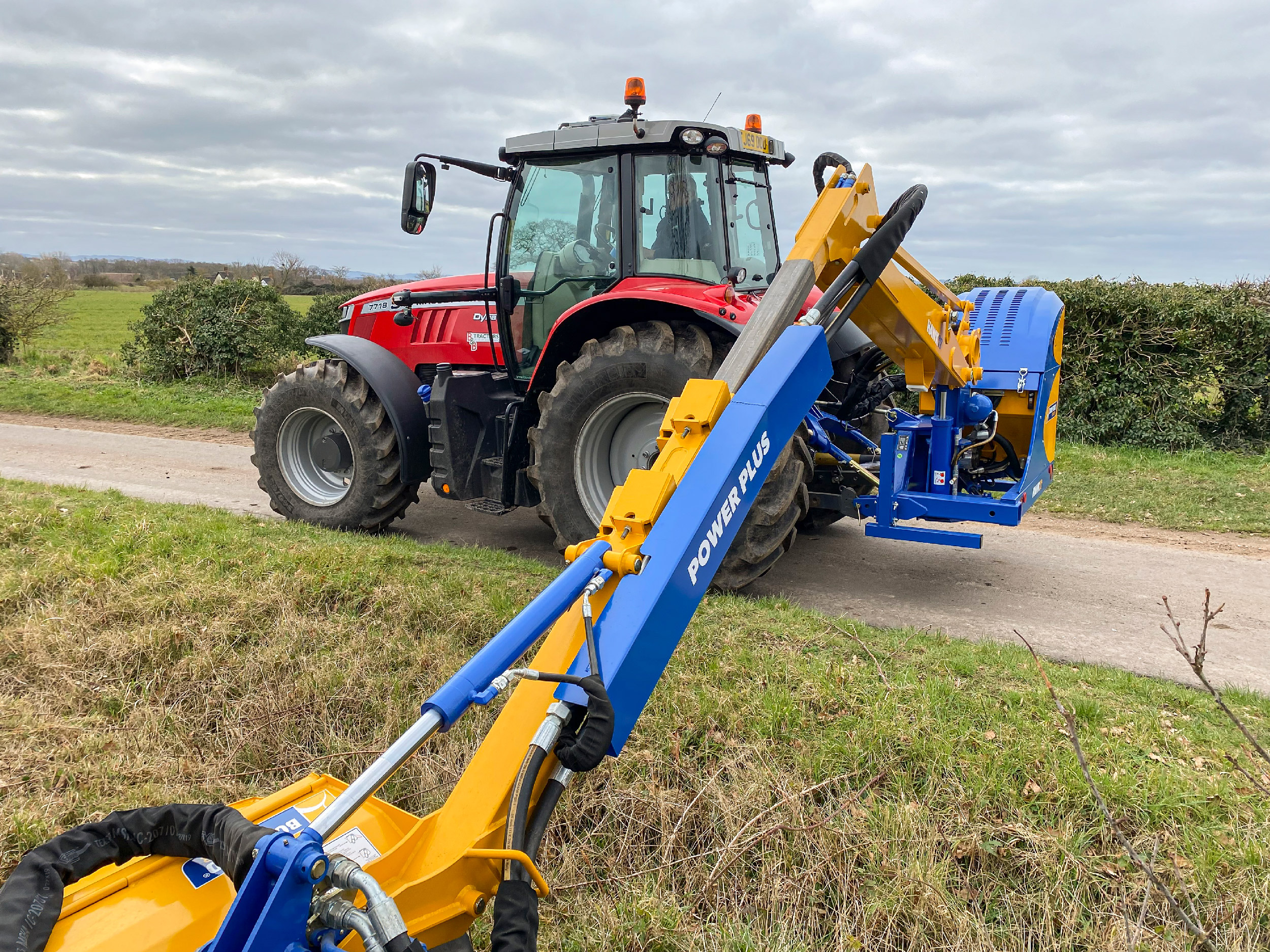

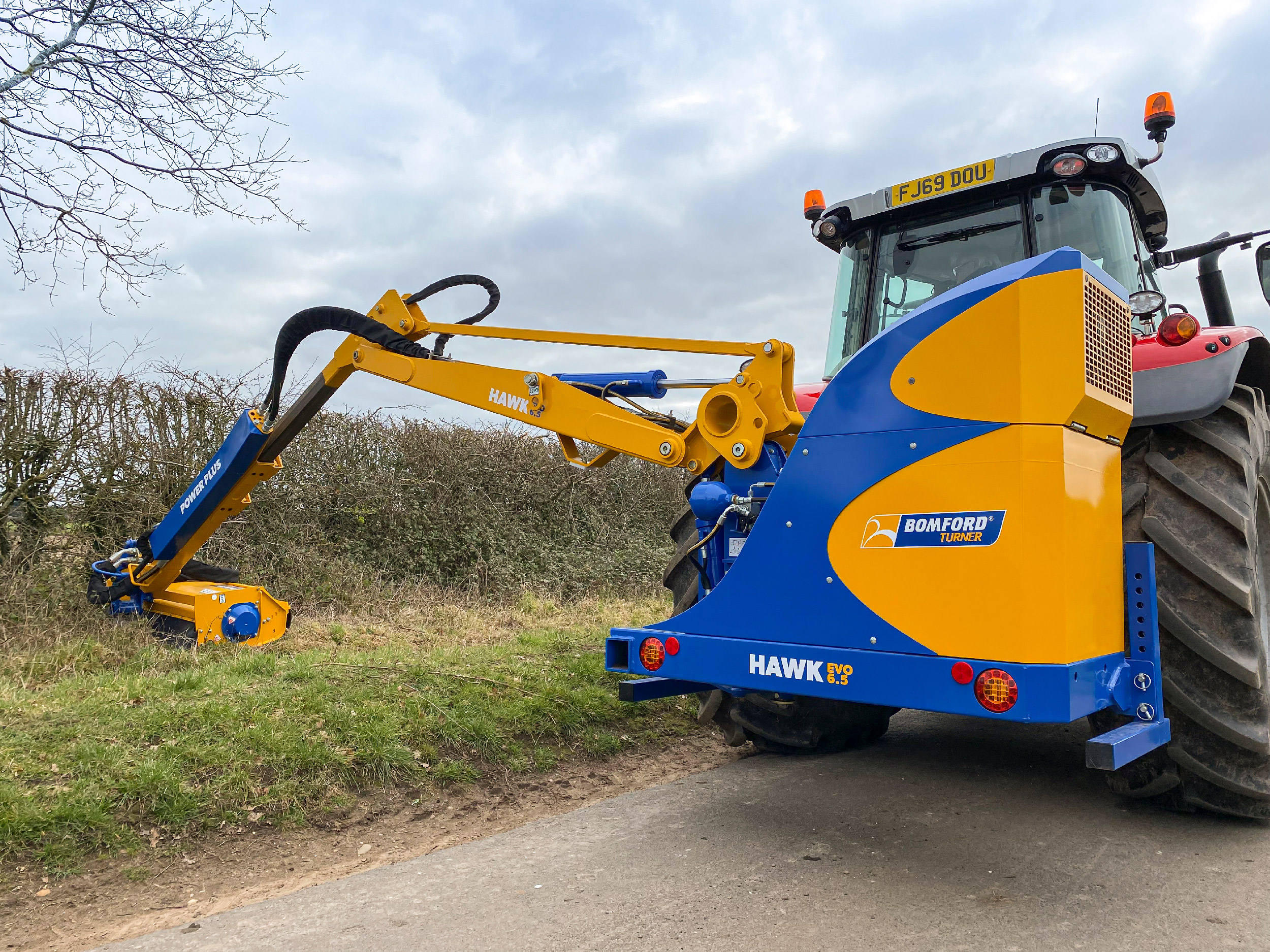

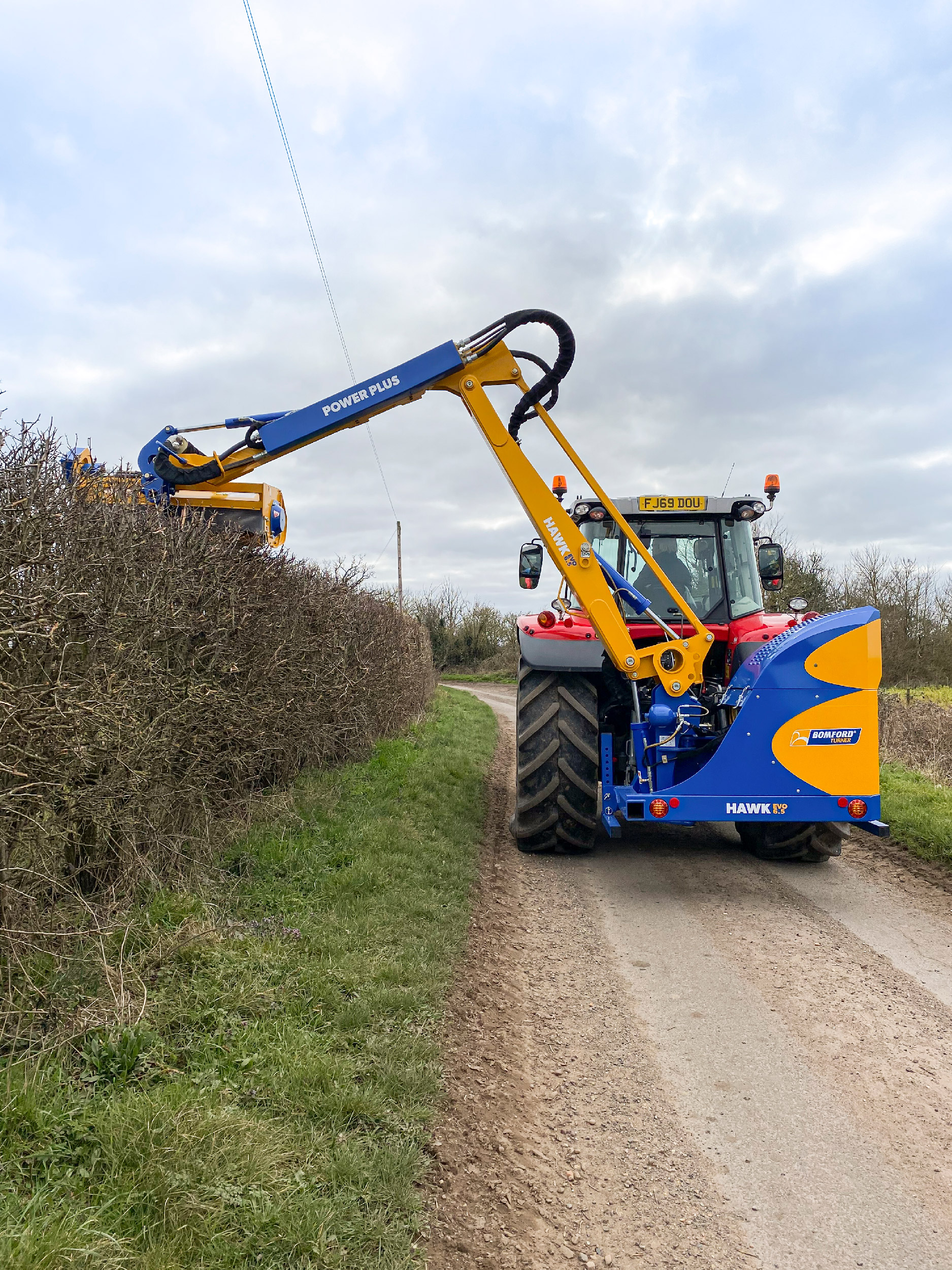

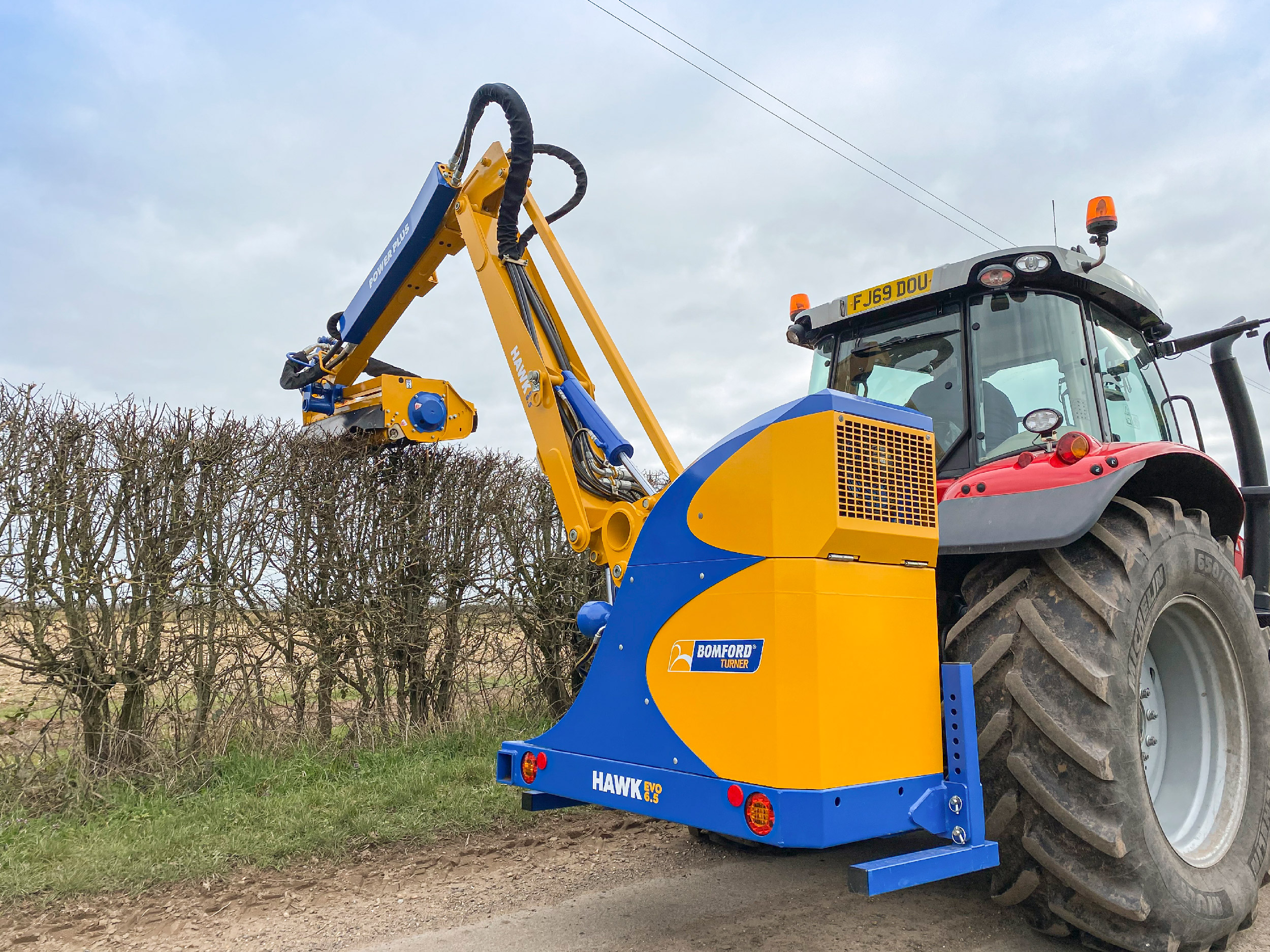

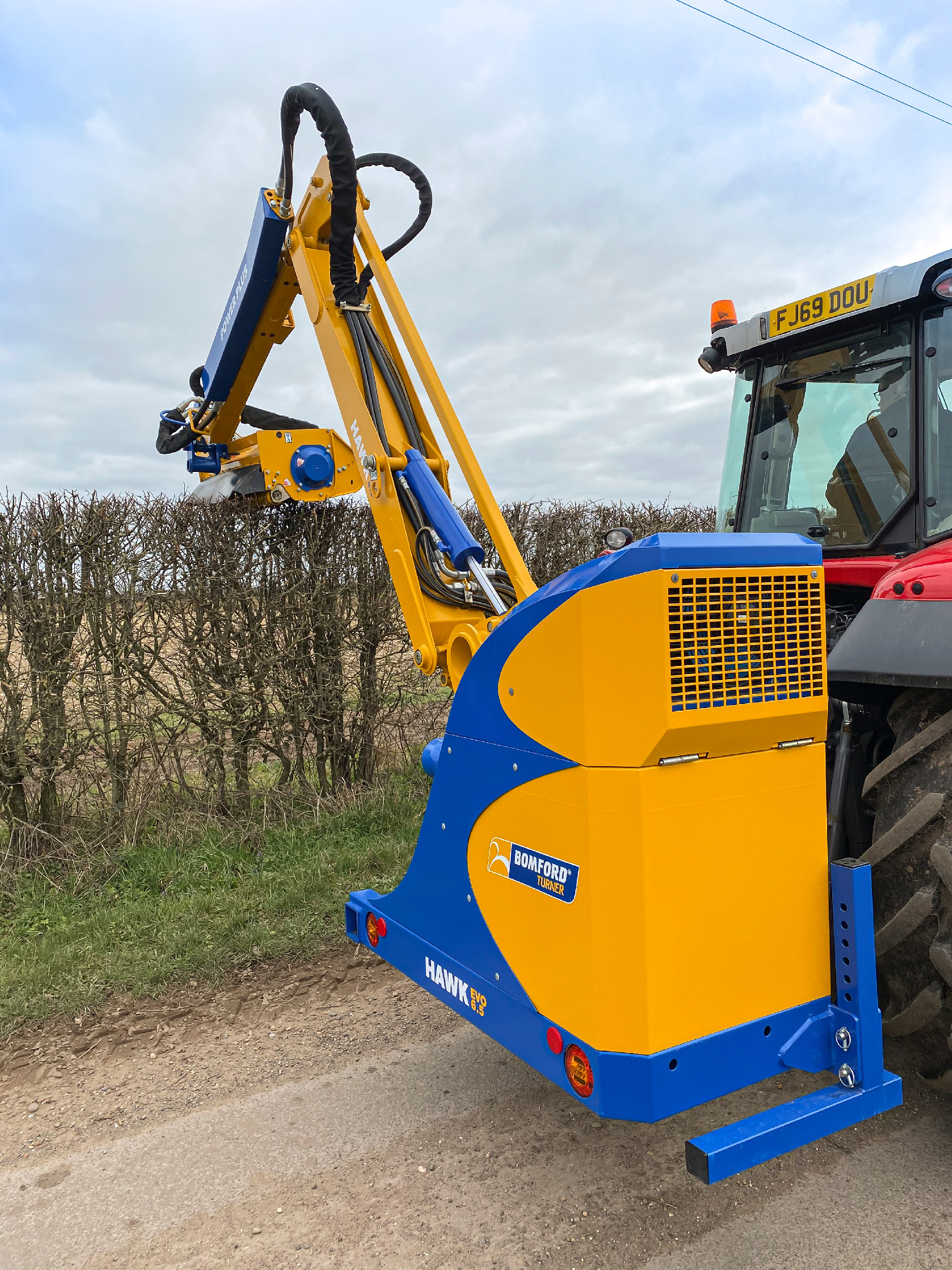

Hawk Evo Power Plus

The Hawk Evo Power Plus is perfect for contractors and municipal environments.

Download Datasheet

These features include integral road lighting, tubular 3 point linkage and power slew with hydraulic breakout.

Key Features:

  • 6.5m, 7.0m and 7.5m reach options
  • Parallel arm standard
  • Steel hose covers
  • Choice of flails, heads and cutter bars
  • Power slew
  • Oil cooler standard

Product Specifications

Standard = Standard   Optional = Optional   Not Available = Not Available

Model 6.5m P (21’4″) 7.0m P (23′) 7.5m P (24’7″)

Tractor Requirements
Minimum horse power 100hp 100hp 120hp
Minimum weight 5500kg / 12125Lbs 5500kg / 12125Lbs 5800kg / 12786Lbs

Base Unit Mounting Options
Front mount Not Available Not Available Not Available
Mid-mount Not Available Not Available Not Available
Rear mount Standard Standard

Standard
Three point linkage (Cat 11) Standard Standard

Standard
Axle Bracket Optional Optional Optional

Overall machine parameters
Machine weight with head and oil 1740kg / 3836Lbs 1780kg / 3924Lbs 1840kg / 4056Lbs
Capacity of oil tank 200L / 52.8USG 200L / 52.8USG 200L / 52.8USG
Weight of machine with oil but without head 1500kg / 3307Lbs 1540kg / 3395Lbs 1600kg / 3527Lbs

Controls
Cable control (CC) Optional Optional Optional
Low pressure hydraulics (LPH) Optional Optional Optional
Electronic proportional control (EPP) Optional Optional Optional
Intelligent control system (ICS) Standard Standard Standard
Cable rotor reverse Optional Optional Optional
Electronic rotor reverse Optional Optional Optional

Hydraulic system
System capability 74hp 74hp 74hp
Pump flow rate 125L / 33USG 125L / 33USG 125L / 33USG
Pump type (Gear / Piston / Helical) Gear Gear Gear
Pump arrangement (Twin / Tandem Inline) Twin Twin Twin
Independent hydraulics Standard Standard Standard
Oil Cooler Optional Optional Optional

Arm features and main frame
Telescopic arm Standard Standard Standard
Telescopic arm stroke 900mm / 3′ 900mm / 3′ 900mm / 3′
Power slew Standard Standard Standard
Power slew angle 94° 94° 94°
Gravity breakout protection Not Available Not Available Not Available
Hydraulic breakout protection Standard Standard Standard
Arm float – manual operation Optional Optional Optional
Arm float – electronic operation Optional Optional Optional
Head float – manual operation Optional Optional Optional
Head float – electronic operation Standard Standard Standard
Left hand cutting Optional Optional Optional
Right hand cutting Optional Optional Optional
Left and right hand cutting Not Available Not Available Not Available

Arm attachments available
Variable track bracket (VTB) Not Available Not Available Not Available
Sheartrim cutter bar Optional Optional Optional
Pro-Saw Optional Optional Optional
Ditch cleaner Optional Optional Optional
Rotary head Optional Optional Optional

Accessories
Road lights Standard Standard Standard
Debris blower Optional Optional Optional
Cab guard kit Standard Standard Standard

Cutting Heads
1.2m Pro-Trim with 115/150mm roller Standard Standard Standard
1.2m Pro-Trim ISMP with 115/150mm roller Optional Optional Optional
1.5m Pro-Trim with 115/150mm roller Optional Optional Optional

Flails

See the table below to see which flail heads are available for the different cutting heads listed above.

  No of Flails BB MP44 HS60 Pro Flail T40 T60 True Cut Match Cut Bushmaster Open Bushmaster Closed
1.2m Pro-Trim with 115/150mm roller 32 Optional Optional Optional Optional Optional Optional Optional Optional Not Available Not Available
1.2m Pro-Trim ISMP with 115/150mm roller 24 Optional Optional Optional Optional Optional Optional Optional Optional Standard Standard
1.5m Pro-Trim with 115/150mm roller 40 Optional Optional Optional Optional Optional Optional Optional Optional Not Available Not Available

Working Reach Dimensions

Head used to calculations: 1.2 Pro-Trim


  6.5m P (21’4″) 7.0m P (23′) 7.5m P (24’7″)
A 6.47m 21’3″ 7.03m 22’1″ 7.52m 24’8″
B 6.21m 20’11” 6.91m 22’8″ 7.40m 24’3″
C 4.68m 15’4″ 4.83m 15’10” 5.35m 17’7″
D 4.97m 16’4″ 5.69m 18’8″ 6.21m 20’4″
E 6.62m 21’9″ 7.40m 24’3″ 7.90m 25’11”
X 1.35m 4’5″ 1.35m 4’5″ 1.35m 4’5″
Y 1.0m 3’4″ 1.0m 3’4″ 1.0m 3’4″

Our range of Accessories for the Hawk Evo Power Plus

Attachments

A wide selection of attachments is available to improve the versatility and therefore the profitability of the Bomford arm mowers range.

Attachments

Controls

Every machine has a choice of tailormade control systems available on most arm mowers.

Controls

Flails

The vast majority of our heads now offer the ability to fit any one of ten flail designs.

Flails

Heads

Most heads offer a choice of flails and ability to adjust rotor speed to suit verge or hedge.

Heads
