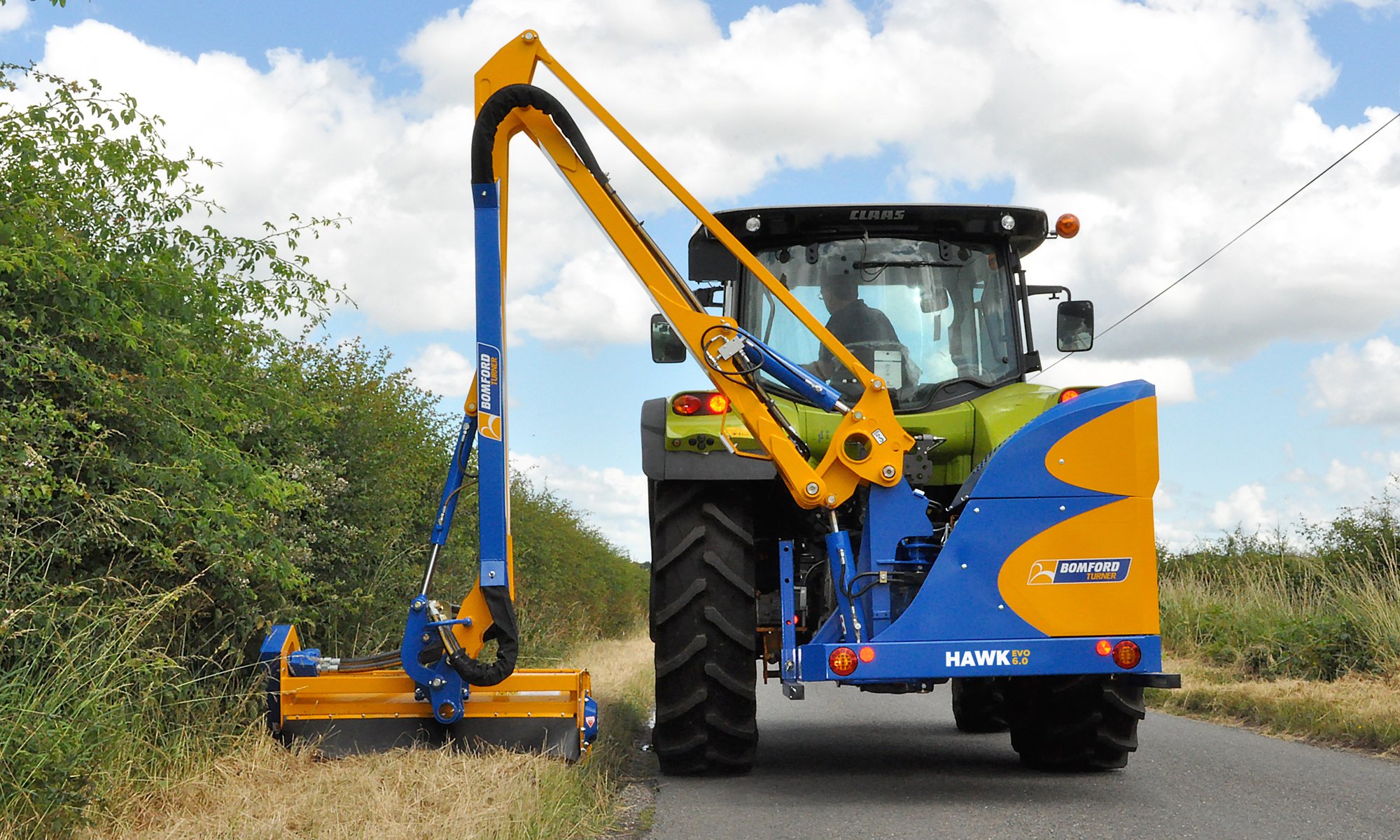

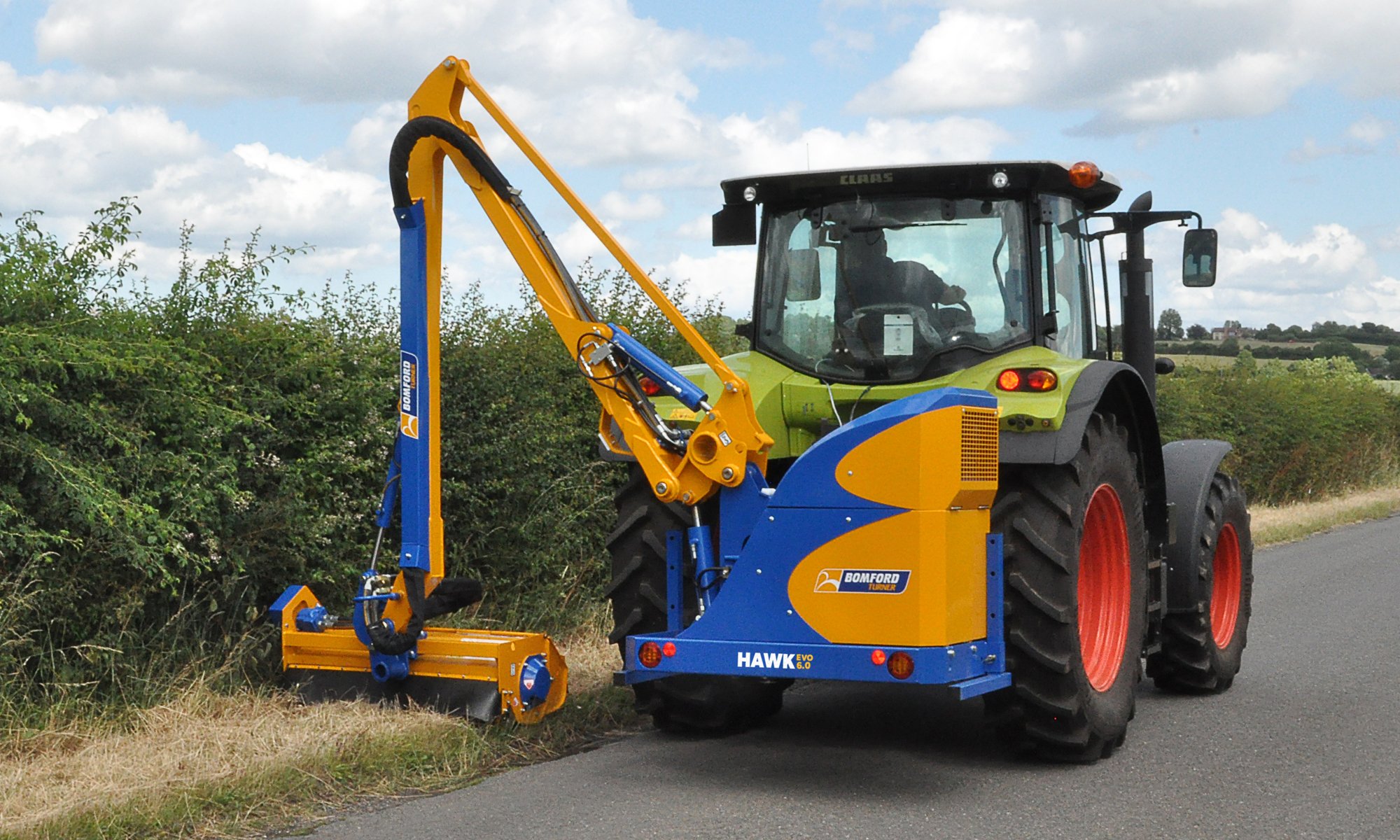

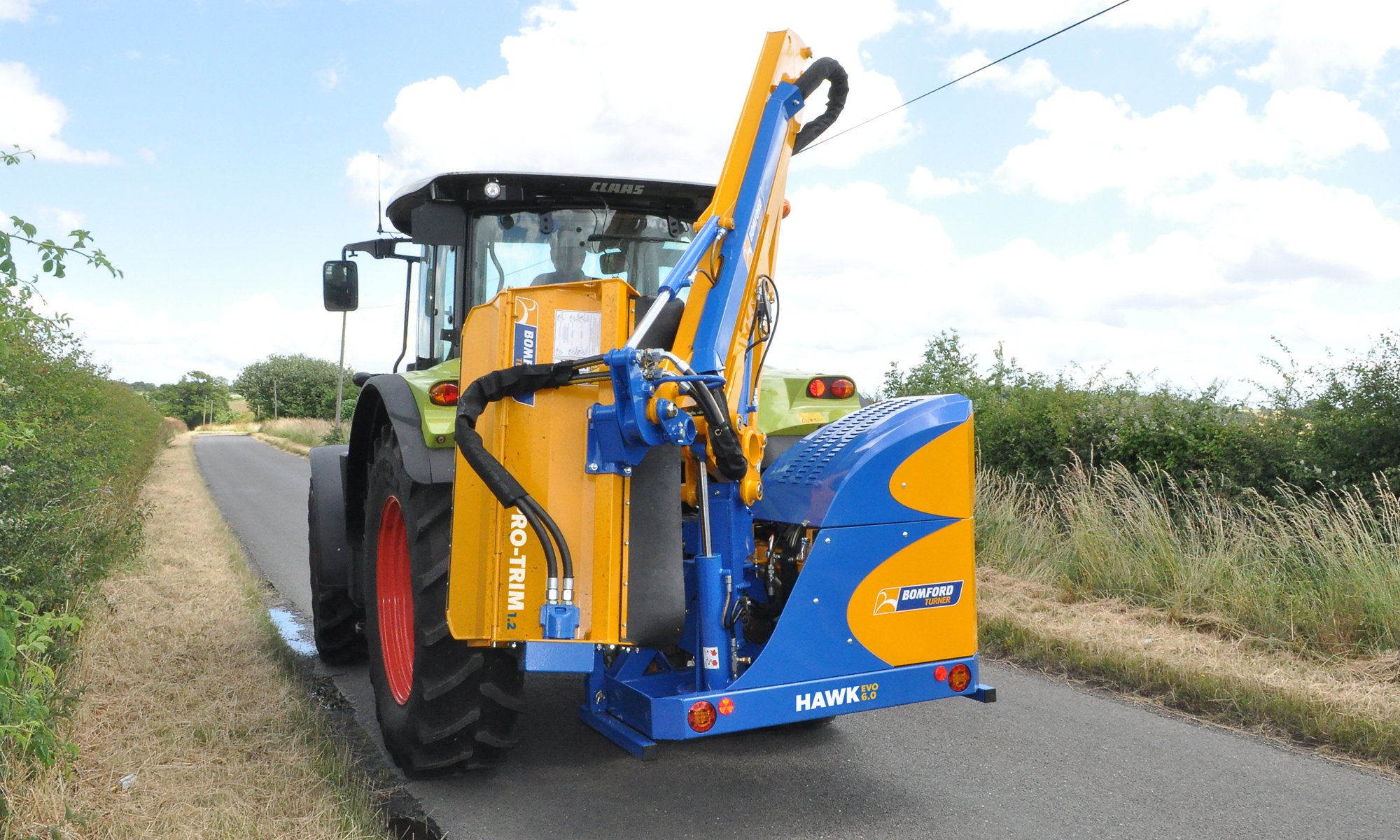

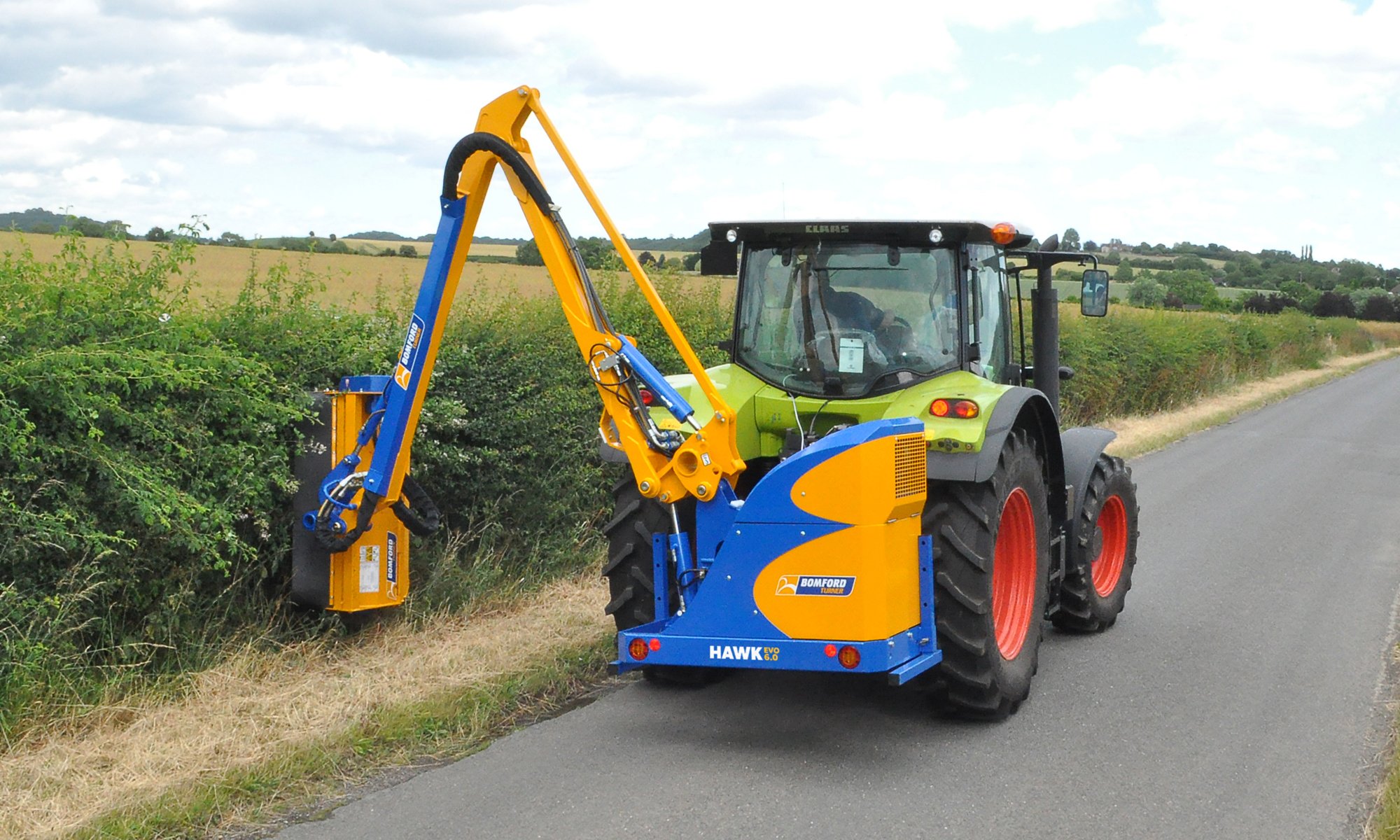

Fitted with a powerful 104 litre drive system, and options to upgrade to 125 litre, the Hawk Evo offers a machine for every application.
Key Features:
- 5.4m or 6.0m reach
- 1.2m or 1.5m Pro Trim head option
- 104 l/min independent hydraulic system
- 94º of slew (max non parallel systems)
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
<
| Model |
Evo 5.4m P (17’9″) |
Evo 6.0m P (19’8″) |
Tractor Requirements
|
| Minimum horse power |
65hp |
65hp |
| Minimum weight |
4500kg / 9921Lbs |
5000kg / 11023Lbs |
Base Unit Mounting Options
|
| Front mount |
Not Available |
Not Available |
| Mid-mount |
Not Available |
Not Available |
| Rear mount |
Standard |
Standard |

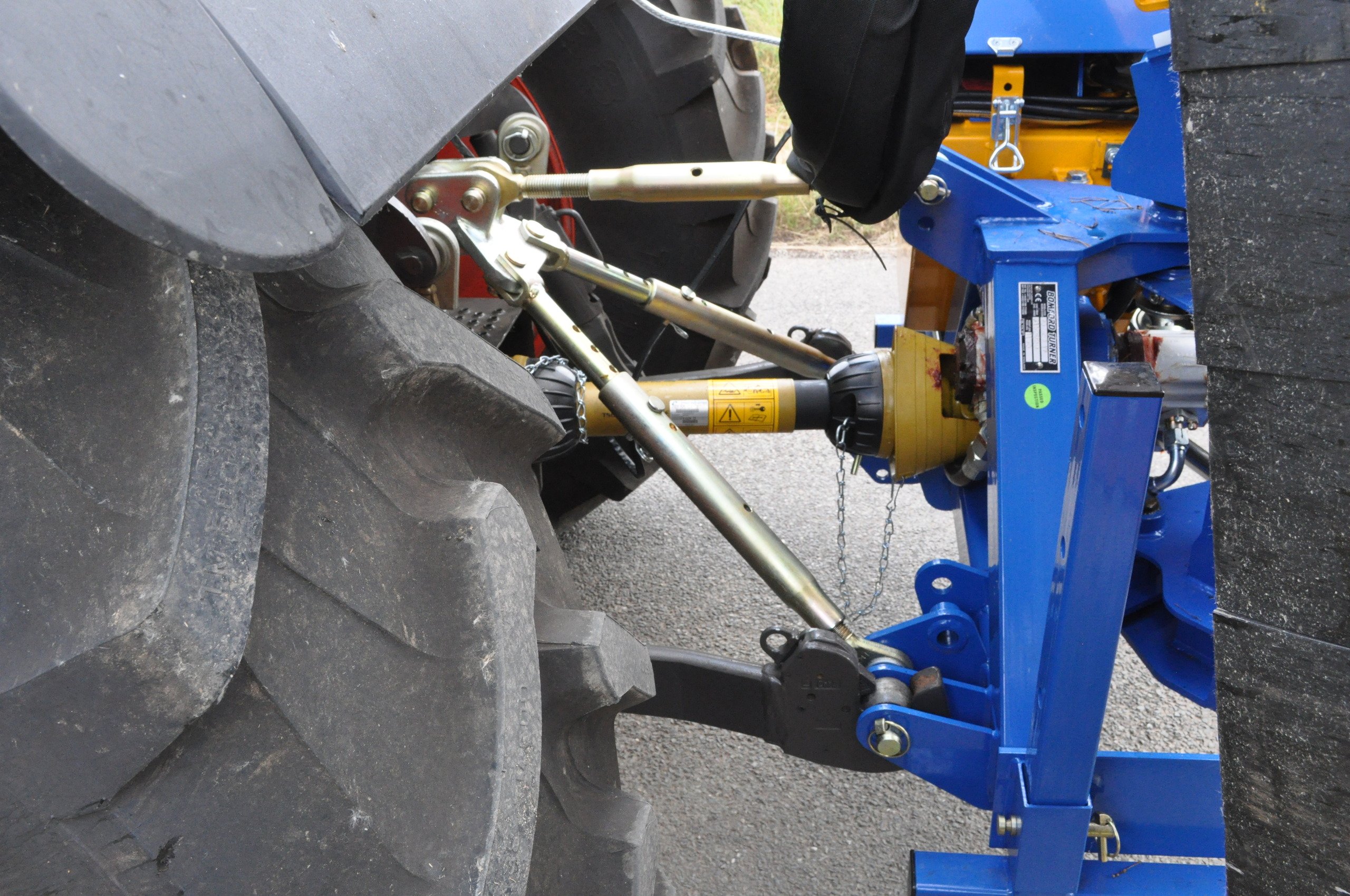

| Three point linkage (CAT II) |
Standard |
Standard |
| Axle Bracket |
Optional |
Optional |
Overall machine parameters
|
| Machine weight with head and oil |
1340kg / 2954Lbs |
1490kg / 3285Lbs |
| Capacity of oil tank |
180L / 47.6USG |
180L / 47.6USG |
| Weight of machine with oil but without head |
1100kg / 2425Lbs |
1250kg / 2756Lbs |
Controls
|
| Cable control (CC) |
Standard |
Standard |
| Low pressure hydraulics (LPH) |
Optional |
Optional |
| Electronic proportional control (EPP) |
Optional |
Optional |
| Intelligent control system (ICS) |
Optional |
Optional |
| Cable rotor reverse |
Optional |
Optional |
| Electronic rotor reverse |
Optional |
Optional |
Hydraulic system
|
| System capability |
60hp |
60hp |
| Pump flow rate |
104L / 27.5USG |
104L / 27.5USG |
| Pump type (Gear / Piston / Helical) |
Gear |
Gear |
| Pump arrangement (Twin / Tandem Inline) |
Twin |
Twin |
| Independent hydraulics |
Standard |
Standard |
| Oil Cooler |
Optional |
Optional |
Arm features and main frame
|
| Telescopic arm |
Not Available |
Not Available |
| Telescopic arm stroke |
Not Available |
Not Available |

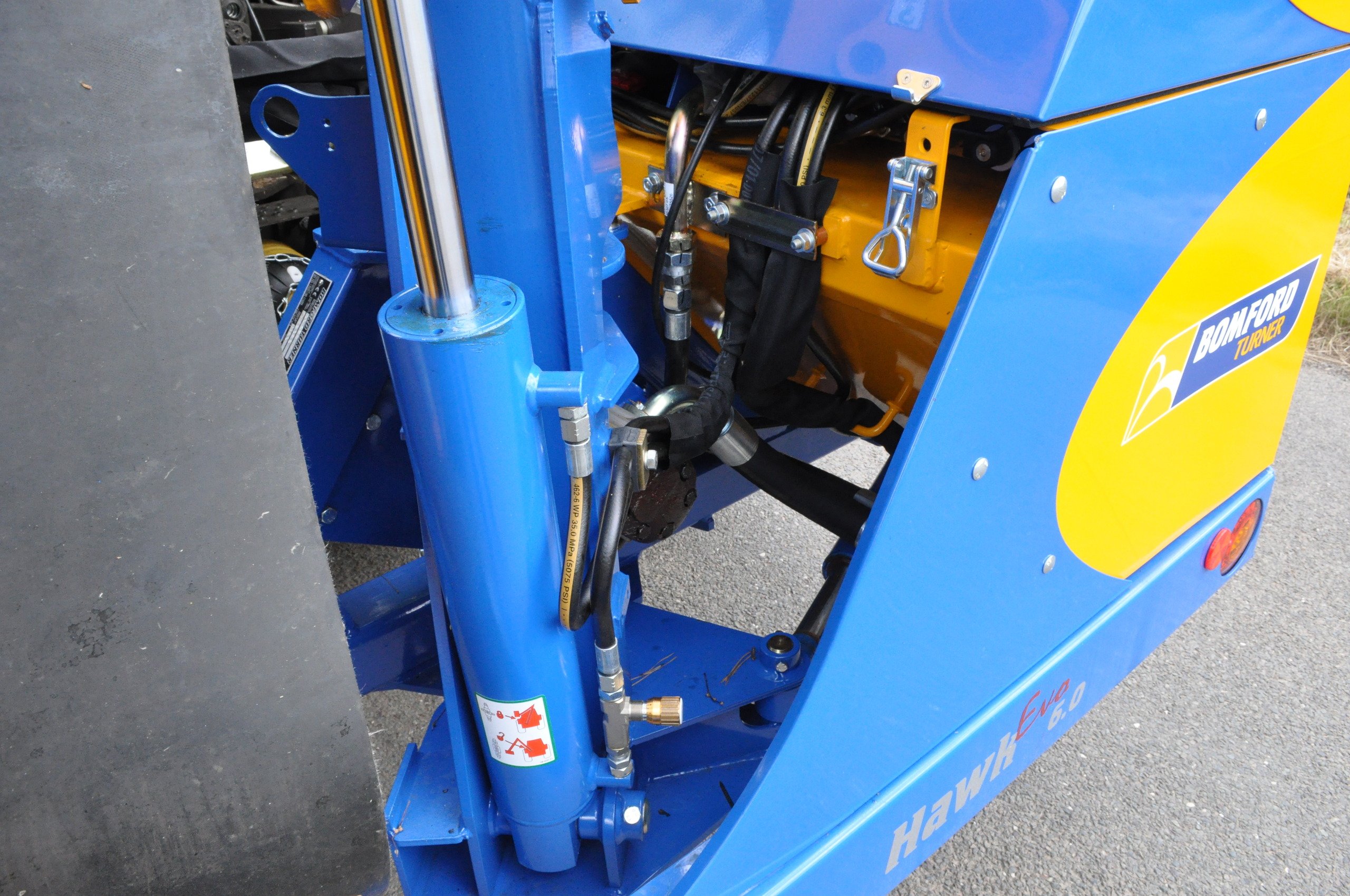

| Power slew |
Standard |
Standard |
| Power slew angle |
94° |
94° |
| Gravity breakout protection |
Not Available |
Not Available |
| Hydraulic breakout protection |
Standard |
Standard |
| Arm float – Manual operation |
Optional |
Optional |
| Arm float – Electronic operation |
Optional |
Optional |
| Head float – Manual operation |
Standard |
Standard |
| Head float – Electronic operation |
Optional |
Optional |
| Left hand cutting |
Optional |
Optional |
| Right hand cutting |
Optional |
Optional |
| Left and right hand cutting |
Not Available |
Not Available |
Arm attachments available
|
| Variable track bracket (VTB) |
Not Available |
Not Available |
| Sheartrim cutter bar |
Optional |
Optional |
| Pro-Saw |
Optional |
Optional |
| Ditch cleaner |
Optional |
Optional |
| Rotary head |
Not Available |
Not Available |
Accessories
|
| Road lights |
Standard |
Standard |
| Debris blower |
Optional |
Optional |
| Cab guard kit |
Standard |
Standard |
Cutting Heads
|
| 1.2m Pro-Trim with 115mm roller |
Standard |
Standard |
| 1.2m Pro-Trim with 150mm roller |
Standard |
Standard |
| 1.2m Pro-Trim ISMP with 115mm roller |
Optional |
Optional |
| 1.2m Pro-Trim ISMP with 150mm roller |
Optional |
Optional |
| 1.5m Pro-Trim with 115mm roller |
Optional |
Optional |
| 1.5m Pro-Trim with 150mm roller |
Optional |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 1.2m Pro-Trim with 115mm Roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Not Available |
| 1.2m Pro-Trim with 150mm Roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Not Available |
| 1.2m Pro-Trim ISMP with 115mm Roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Standard |
| 1.2m Pro-Trim ISMP with 150mm Roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Standard |
| 1.5m Pro-Trim with 115mm Roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Not Available |
| 1.5m Pro-Trim with 150mm Roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Not Available |
Working Reach Dimensions
Head used to calculations: 1.2 Pro-Trim
| |
Evo 5.4m P (17’9″) |
Evo 6.0m P (19’8″) |
| A |
5.35m |
17’7″ |
5.95m |
19’6″ |
| B |
5.39m |
17’8″ |
6.11m |
20’1″ |
| C |
3.64m |
11’11” |
4.32m |
14’2″ |
| D |
4.25m |
13’11” |
4.74m |
15’7″ |
| E |
5.89m |
19’4″ |
6.39m |
21′ |
| X |
1.35m |
4’5″ |
1.35m |
4’5″ |
| Y |
1.0m |
3’3″ |
1.0m |
3’3″ |
