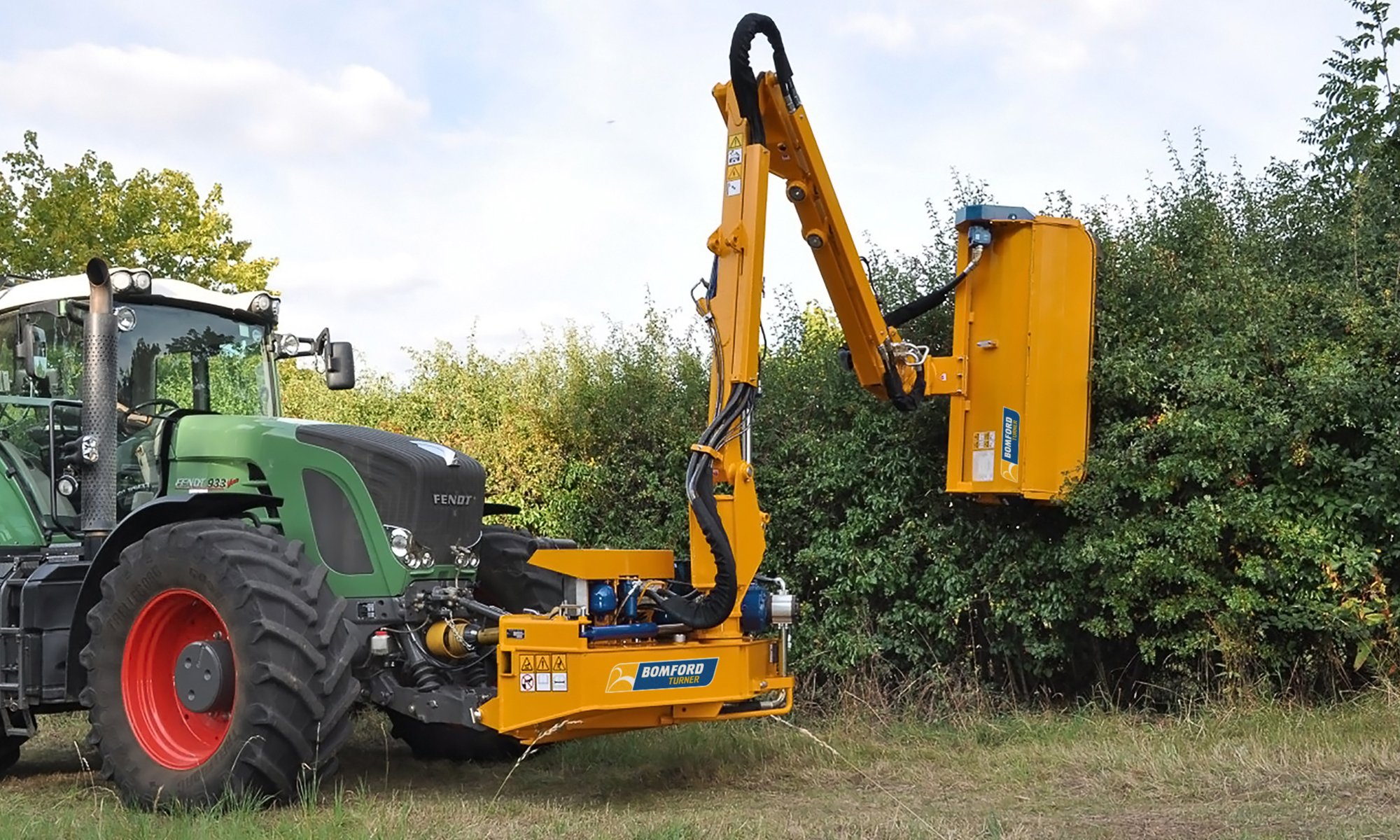

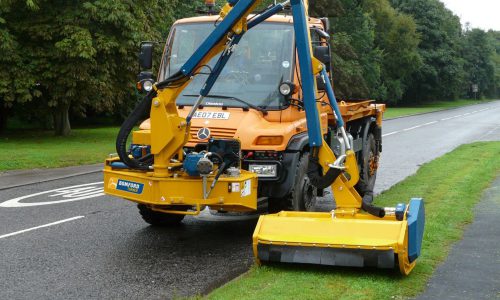

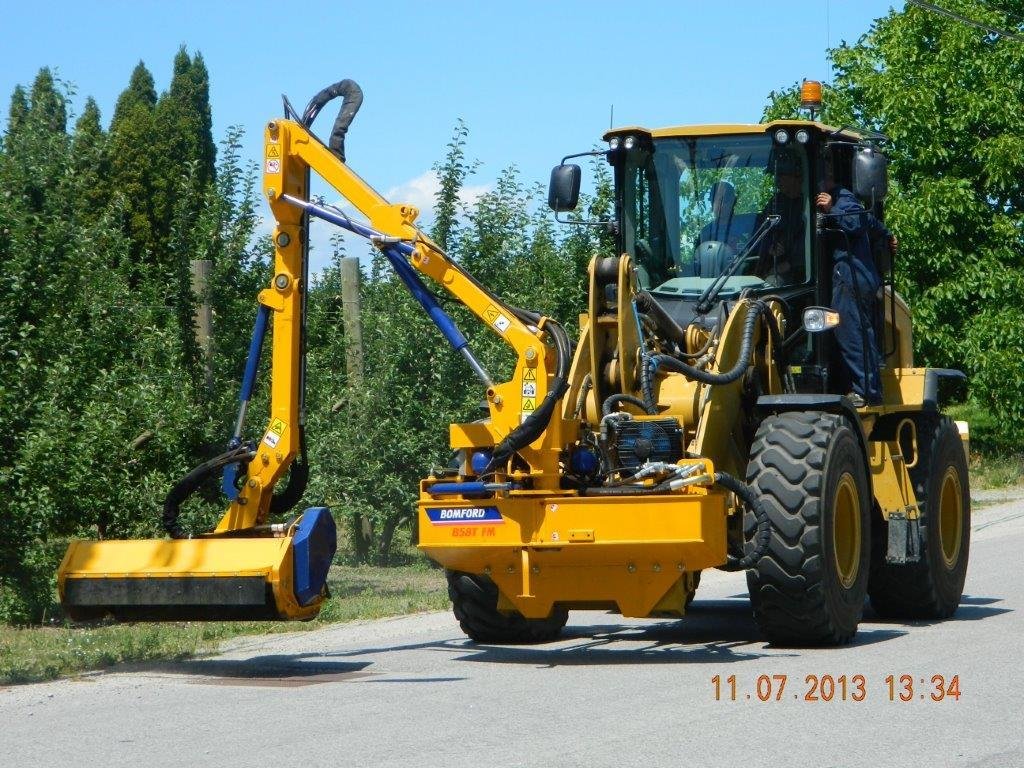

There are numerous fitting options on this machine, for tractors, trucks and loading shovels.
B49FM / B54FM / B58TFM
Key Features:
- 4.9m, 5.4m or 5.8m reach options

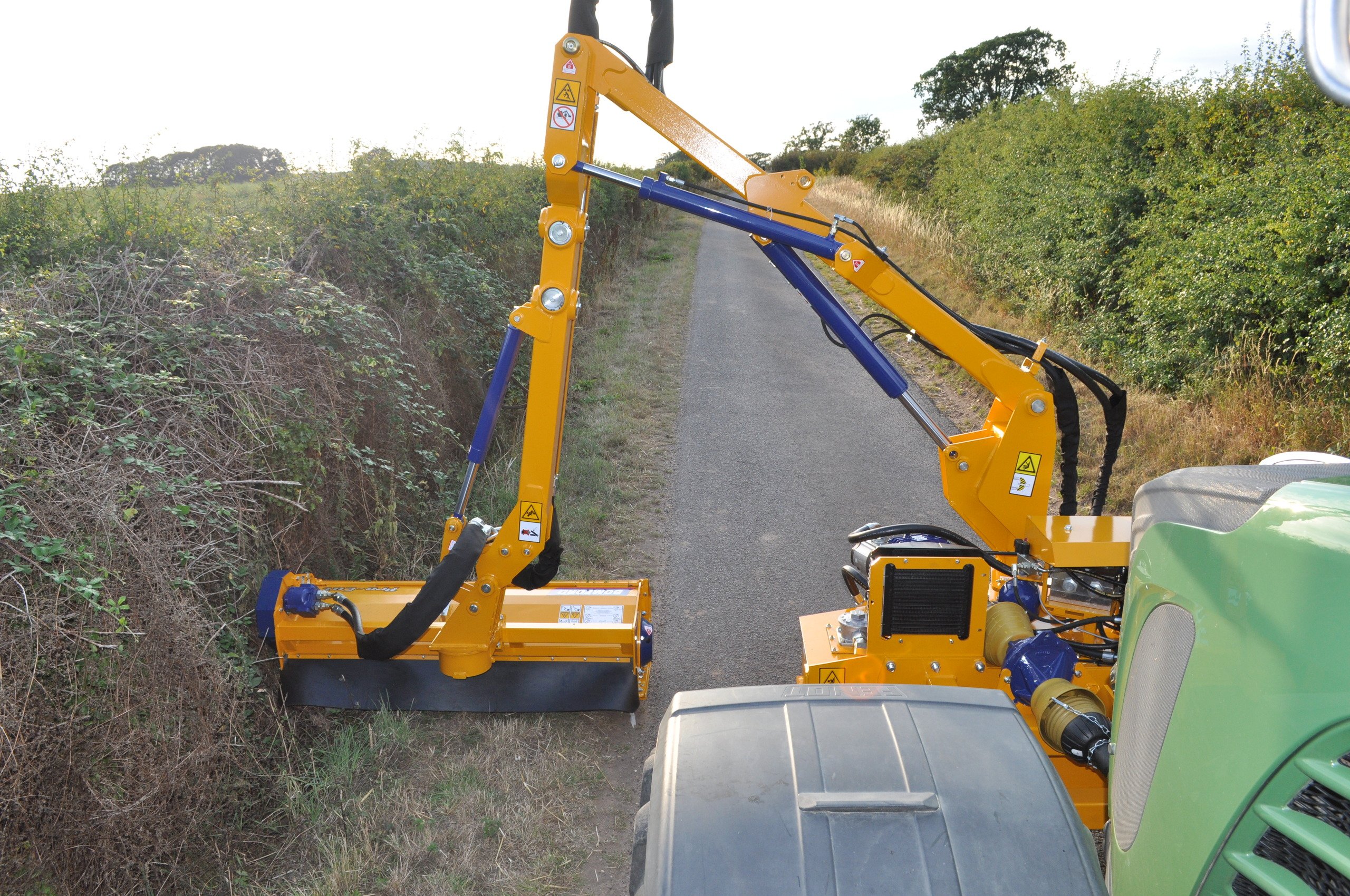

- Front mounted
- Low profile design for good forward visibility
- 125 l/min fully independent hydraulic system
- Left and right hand side cutting
- DIN3 plate mounting option

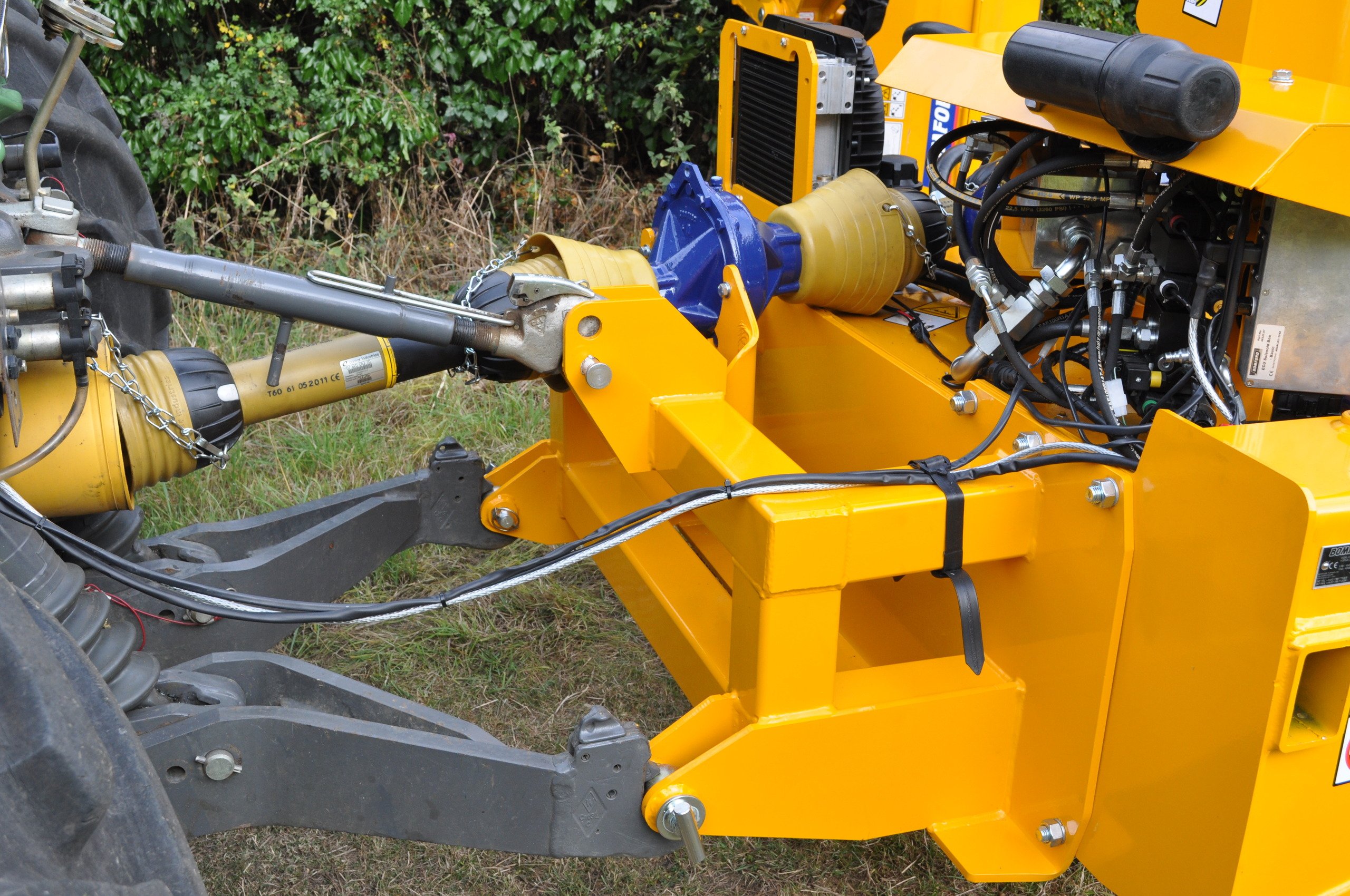

- Tractor front linkage option
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Model |
B49FM 4.9m (16’4″) |
B54FM 5.4m (17’9″) |
B58FM-T 5.8m (19′) |
Tractor Requirements
|
| Minimum horse power |
70hp |
80hp |
90hp |
| Minimum weight |
4000kg / 8819lbs |
4250kg / 9370lbs |
4500kg / 9921lbs |
Base Unit Mounting Options
|
| Front mount |
Standard |
Standard |
Standard |
| Mid-mount |
Not Available |
Not Available |
Not Available |
| Rear mount |
Not Available |
Not Available |
Not Available |
| Three point linkage (CAT II) |
Not Available |
Not Available |
Not Available |
| Axle bracket |
Not Available |
Not Available |
Not Available |
Overall machine parameters
|
| Machine weight with head and oil |
1400kg / 3086lbs |
1460kg / 3219lbs |
1540kg / 3395lbs |
| Capacity of oil tank |
227 Litres / 60USG |
227 Litres / 60USG |
227 Litres / 60USG |
| Weight of machine with oil but without head |
1100kg / 2452lbs |
1160kg / 2557lbs |
1240kg / 2734lbs |
Controls
|
| Cable control (CC) |
Not Available |
Not Available |
Not Available |
| Low pressure hydraulics (LPH) |
Not Available |
Not Available |
Not Available |
| Electronic proportional control (EPP) |
Standard |
Standard |
Standard |
| Intelligent control system (ICS) |
Optional |
Optional |
Optional |
| Cable rotor reverse |
Not Available |
Not Available |
Not Available |
| Electronic rotor reverse |
Optional |
Optional |
Optional |
Hydraulic system
|
| System capability |
74 hp |
74hp |
74hp |
| Pump flow rate |
125 Litres / 33USG |
125 Litres / 33USG |
125 Litres / 33USG |
| Pump type (Gear / Piston / Helical) |
Gear |
Gear |
Gear |
| Pump arrangement (Twin / In-line) |
Twin |
Twin |
Twin |
| Independent hydraulics |
Standard |
Standard |
Standard |
| Oil cooler |
Standard |
Standard |
Standard |
Arm features and main frame
|
| Forward arm |
Not Available |
Not Available |
Not Available |
| Forward arm reach (Fixed / Variable) |
Not Available |
Not Available |
Not Available |
| Telescopic arm |
Not Available |
Not Available |
Standard |
| Telescopic arm stroke |
Not Available |
Not Available |
900mm / 3″ |
| Power slew |
Standard |
Standard |
Standard |
| Power slew angle |
94° |
94° |
94° |
| Gravity breakout protection |
Not Available |
Not Available |
Not Available |
| Hydraulic breakout protection |
Standard |
Standard |
Standard |
| Arm float – Manual operation |
Standard |
Standard |
Standard |
| Arm float – Electronic operation |
Optional |
Optional |
Optional |
| Head float – Manual operation |
Optional |
Optional |
Optional |
| Head float – Electronic operation |
Optional |
Optional |
Optional |
| Left hand cutting |
Optional |
Optional |
Optional |
| Right hand cutting |
Optional |
Optional |
Optional |
| Left and right hand cutting |
Standard |
Standard |
Standard |
Arm attachments available
|
| Variable track bracket (VTB) |
Not Available |
Not Available |
Not Available |
| Sheartrim cutter bar |
Optional |
Optional |
Optional |
| Pro-Saw |
Optional |
Optional |
Optional |
| Ditch cleaner |
Not Available |
Not Available |
Not Available |
| Rotary head |
Not Available |
Not Available |
Not Available |
Accessories
|
| Road lights |
Not Available |
Not Available |
Not Available |
| Debris blower |
Not Available |
Not Available |
Not Available |
| Cab guard kit |
Standard |
Standard |
Standard |
Cutting Heads
|
| 1.2m Pro-Cut with 115mm roller |
Standard |
Standard |
Standard |
| 1.2m Pro-Cut with 150mm roller |
Standard |
Standard |
Standard |
| 1.5m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 115mm roller |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 150mm roller |
Optional |
Optional |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 1.2m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Working Reach Dimensions
Head used to calculations: 1.2 Pro-Cut
| |
B49FM 4.9m (16’4″) |
B54FM 5.4m (17’9″) |
B58FM-T 5.8m (19′) |
| A |
4.9m |
16’4″ |
5.4m |
17’9″ |
5.8m |
19′ |
| B |
4.9m |
16’4″ |
5.4m |
17’5″ |
5.8m |
19′ |
| C |
3.4m |
11’2″ |
3.5m |
11’6″ |
3.6m |
11’10” |
| D |
4.2m |
13’10” |
4.7m |
15’7″ |
5m |
16’5″ |
| E |
6.1m |
20′ |
6.51m |
21’4″ |
6.7m |
22′ |
| Y |
1.5m |
4’11” |
1.5m |
4’11” |
1.5m |
4’11” |
| X |
1.0m |
3’4″ |
1.0m |
3’4″ |
1.0m |
3’4″ |
