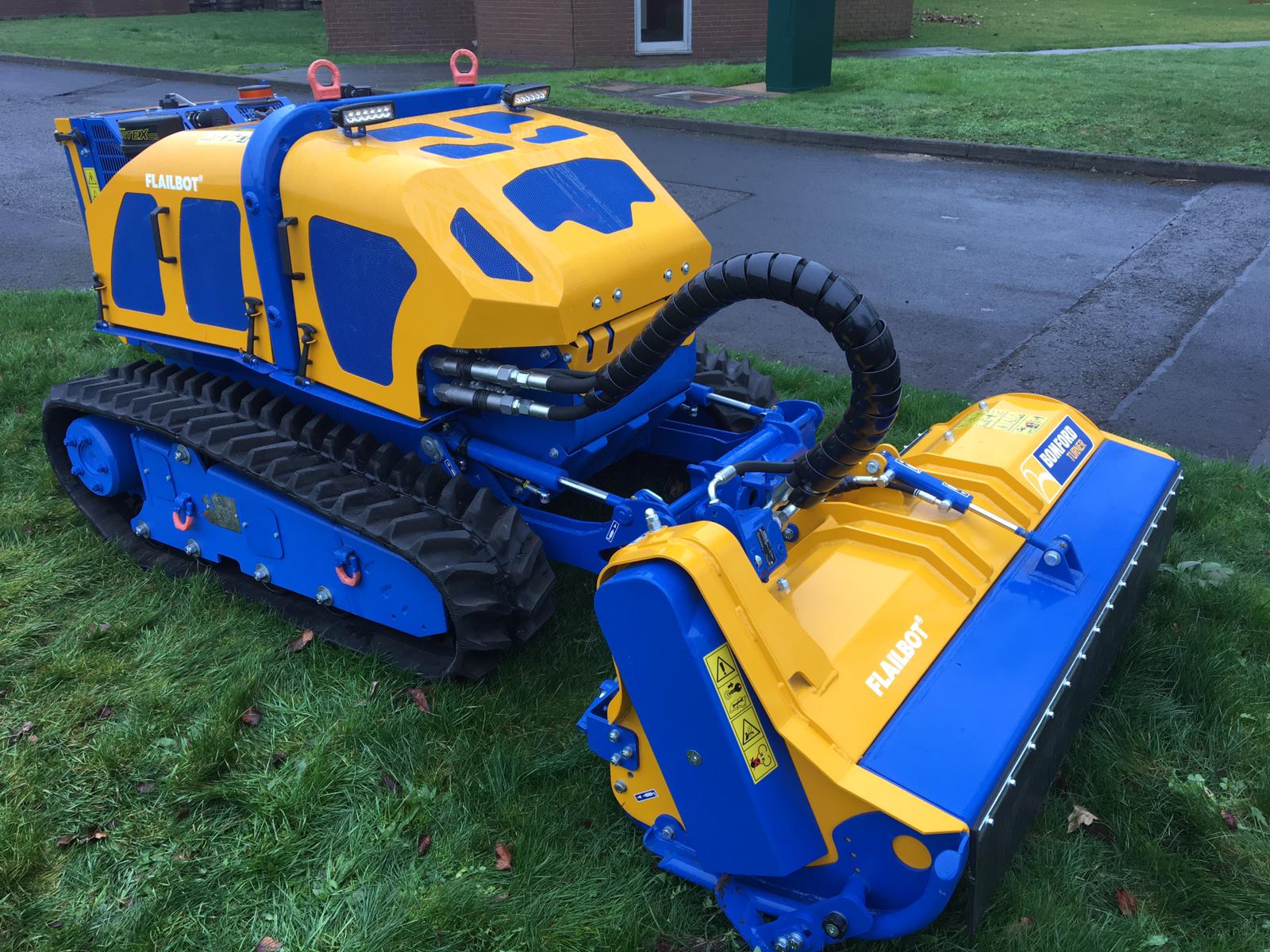

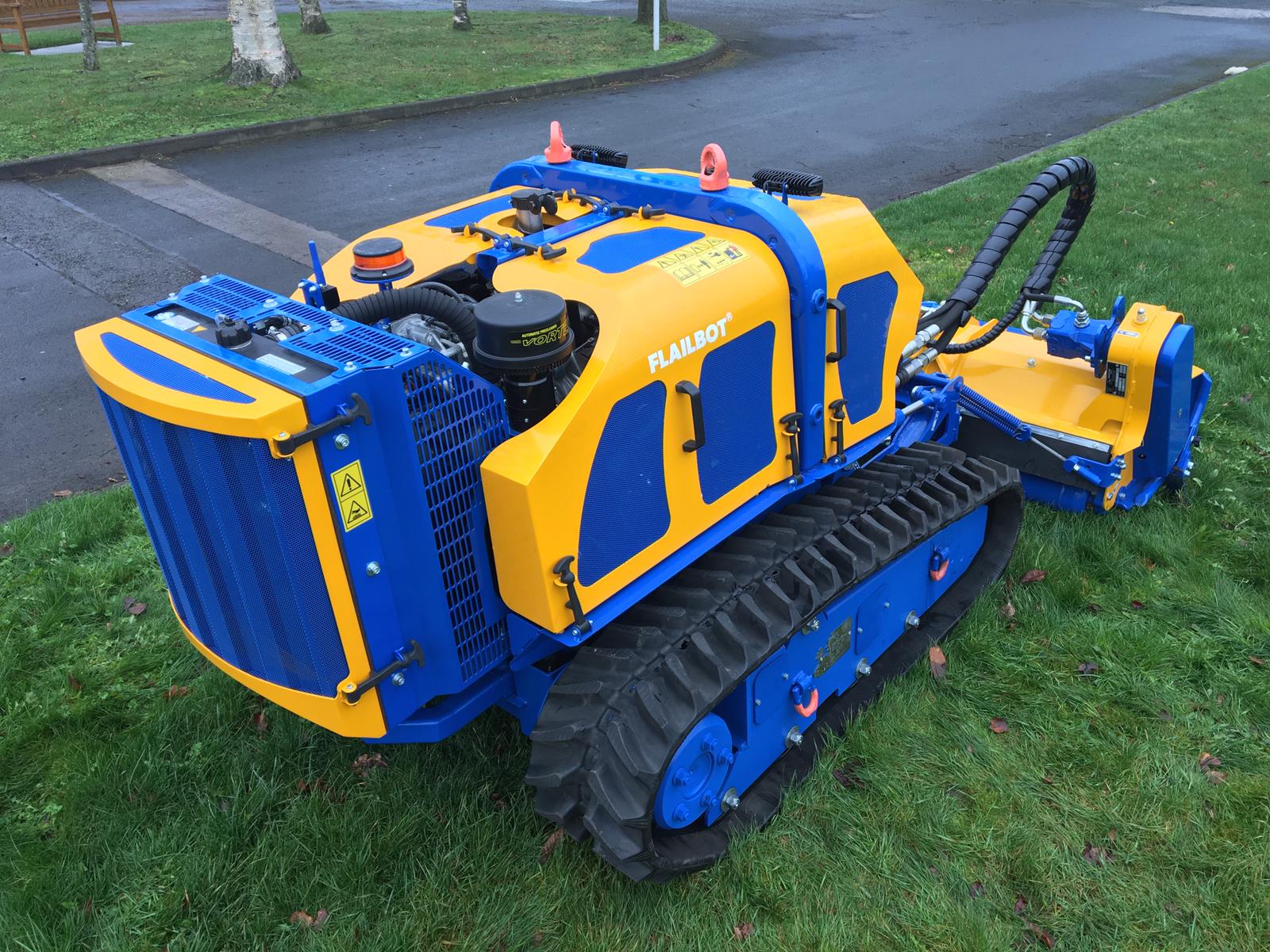

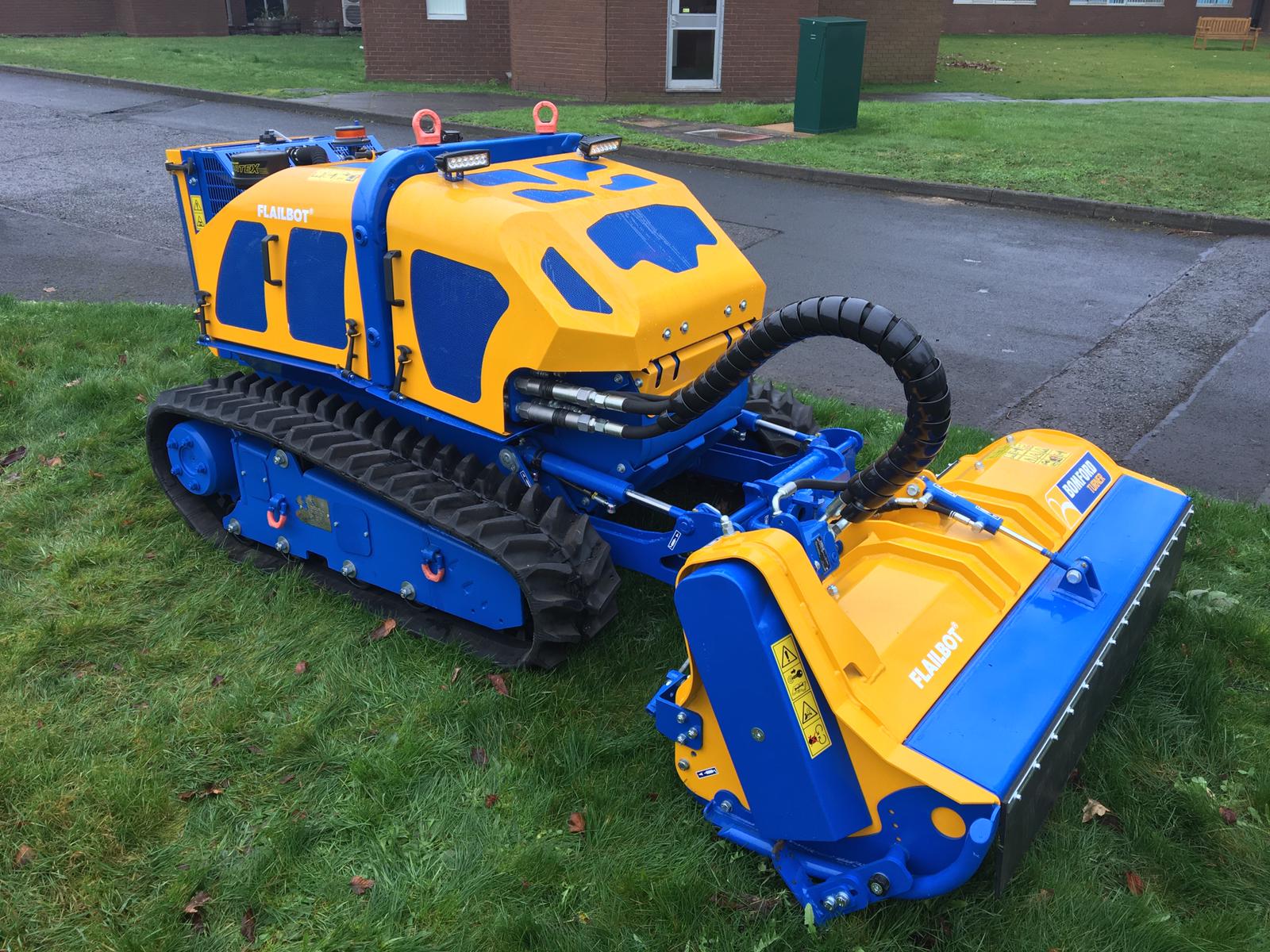

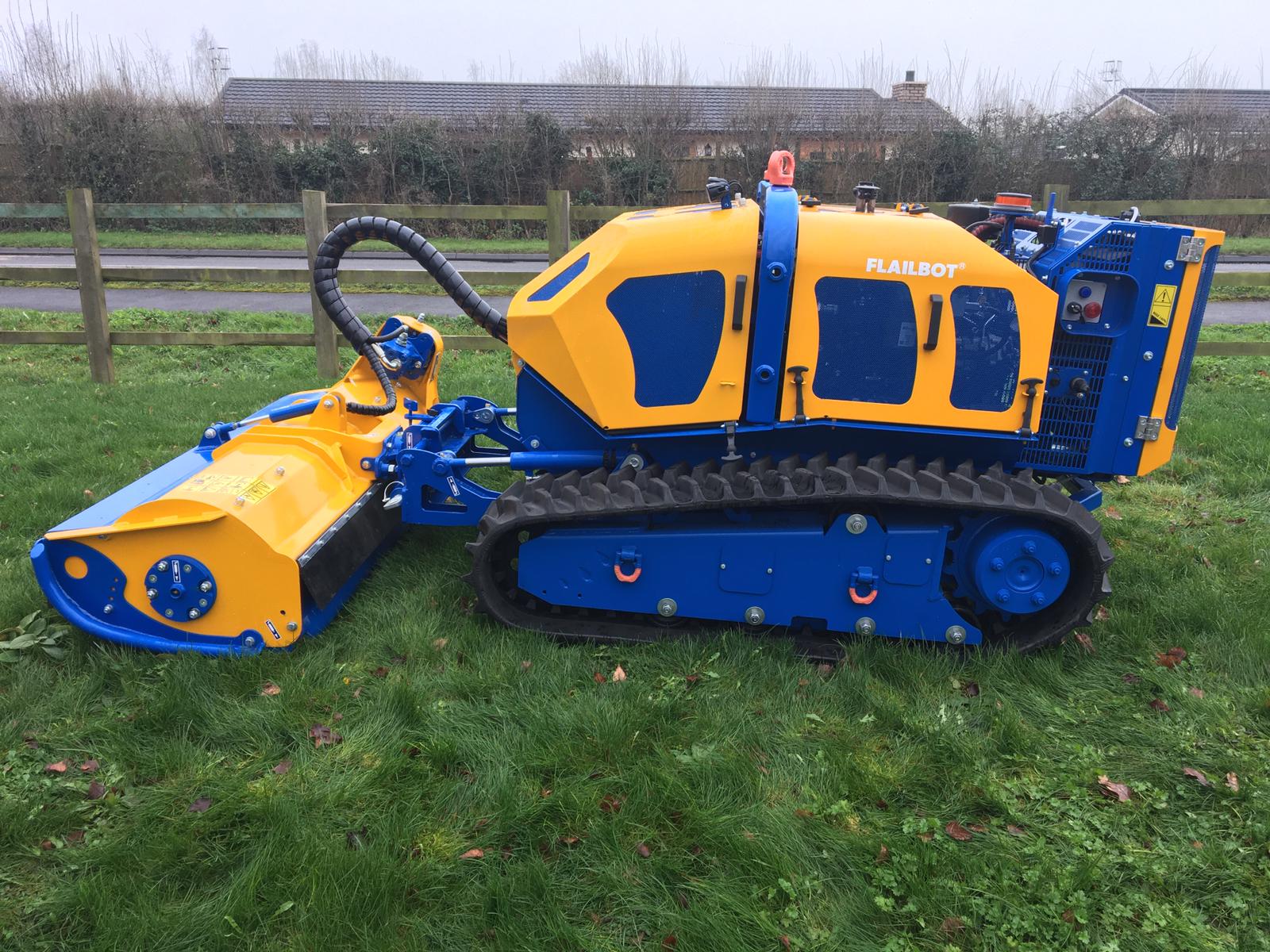

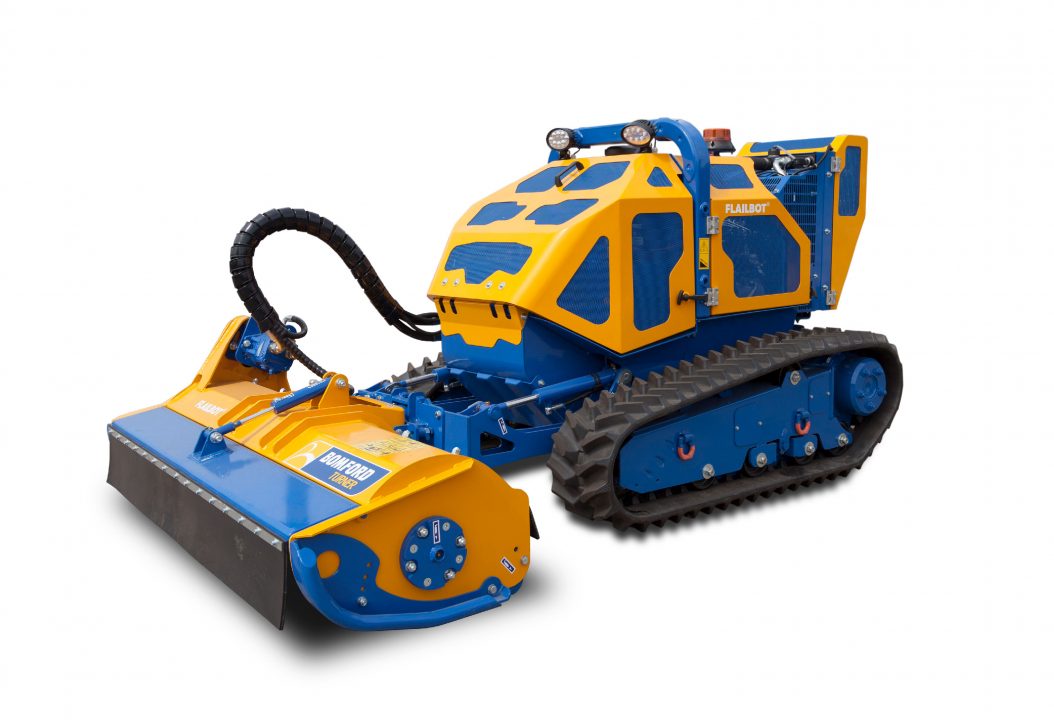

Flailbot Excel Stage V / T4 Final

Flailbot Excel Stage V / T4 Final draws from the original machine, but with larger engine capacity to cope with more challenging operations.

The original Flailbot, now uprated to 60hp, designed for challenging terrains with the powerful industrial Perkins diesel engine fitted as standard, providing the ultimate in power to weight performance in the remote controlled tracked tool carrier market.

Key Features

  • 4 Cylinder 60hp Stage V/T4 Final Perkins engine
  • 31 litre (8 USG) fuel tank capacity
  • Closed circuit tandem piston pump with variable displacement
  • 150m (492′) working range
  • 55 degree max working angle

Product Specifications

Standard = Standard   Optional = Optional   Not Available = Not Available / Not Applicable

Model Excel Stage V / T4 Final (60hp)

Operation

Max Slope 55°
Transmission Hydrostatic
Speed 0-7 km/h
Weight 1500kg / 3,307 lbs

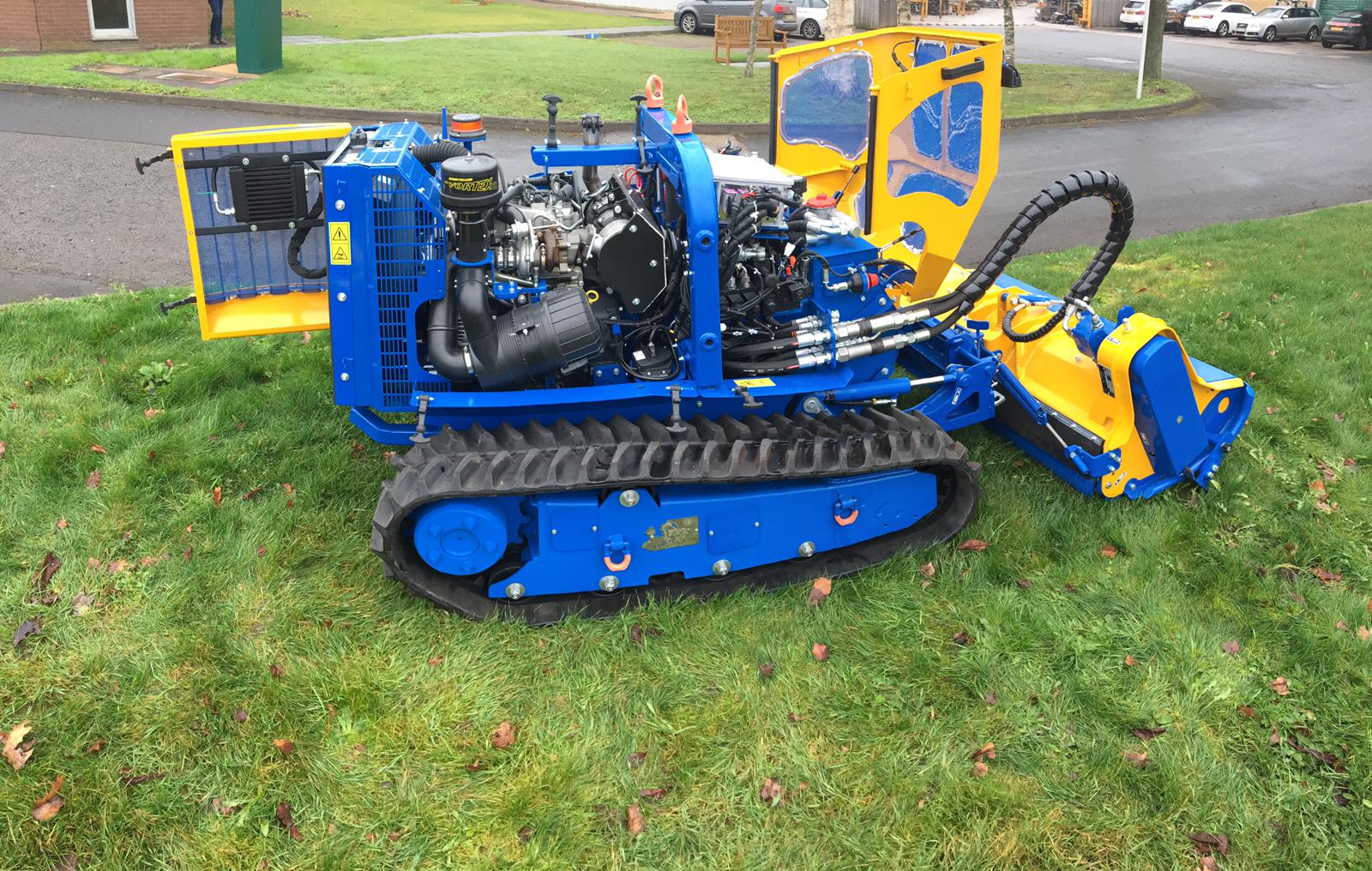

Engine

Brand / Make Perkins
Model 4 Cylinders, Diesel
Engine Size 2.2 Litres / 134.2 in3
Power 45 kW / 60 Cv
Max Torque 222 Nm / 164 ft/lbs
Intake Turbocharged
Cooling Liquid
Air Filter Dry
Diesel Tank Capacity 31 Litres / 8 USG
Engine Oil Capacity 10 Litres / 2.6 USG

Electrical Circuit

Operating Voltage 12 Vcc
Alternator 85 Amp
Battery 44 Ah

Hydraulic System

Displacement Tandem piston pump with variable engine size and closed circuit
Displacement Capacity 104 Litres / 27 USG max @ 2750 rpm
Displacement Pressure 320 bar max
Services Gear Pump
Services Capacity 15 Litres / 4 USG max @ 2750 rpm
Services Pressure 200 Bar max
Tool Closed Circuit Piston Pump
Tool Capacity 93 Litres / 25 USG max @ 2700 rpm
Tool Pressure 320 Bar max
Oil Tank Capacity 50 Litres / 13 USG
Operating Oil Quantity 60 Litres / 16 USG

Controls

Brand Scanreco
Frequency 2.4 GHz
Range Signal 150m / 492′
Battery Rechargeable

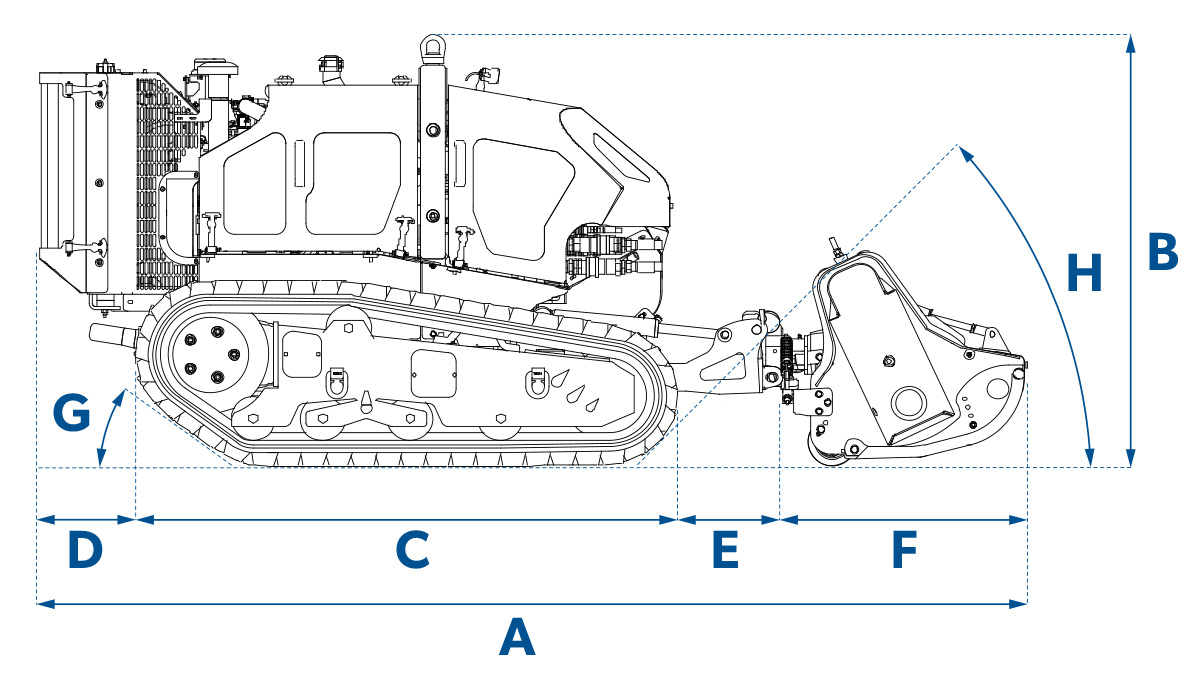

Working Dimensions & Weights

Engine Size / Capacity: 75hp / 2.2 Litres / 134.2 in3
Flailibot with Oil and Fuel: 2200kg / 4,850lbs
1650 Flailhead: 450kg / 992lbs
Remote Control Distance up to: 150m / 492′
Working angle up to: 55°



>

  Metric Imperial
A 3050mm 120″
B 1290mm 51″
C 1770mm 70″
D 270mm 10 ¾”
E 240mm 9 ½”
F 770mm 30 ¾”
G 35° 35°
H 45° 45°

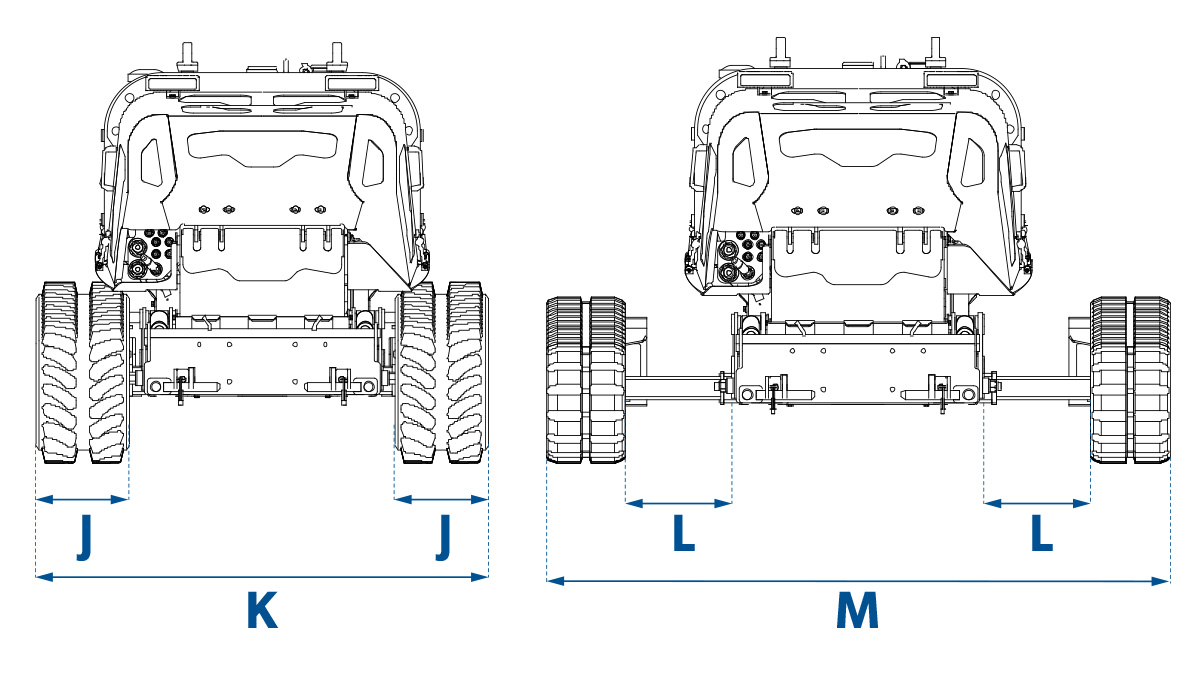

  Metric Imperial
J 230mm 9 ¼”
K 1310mm 51 ½”
L 250mm 10″
M 1810mm 71 ¼”

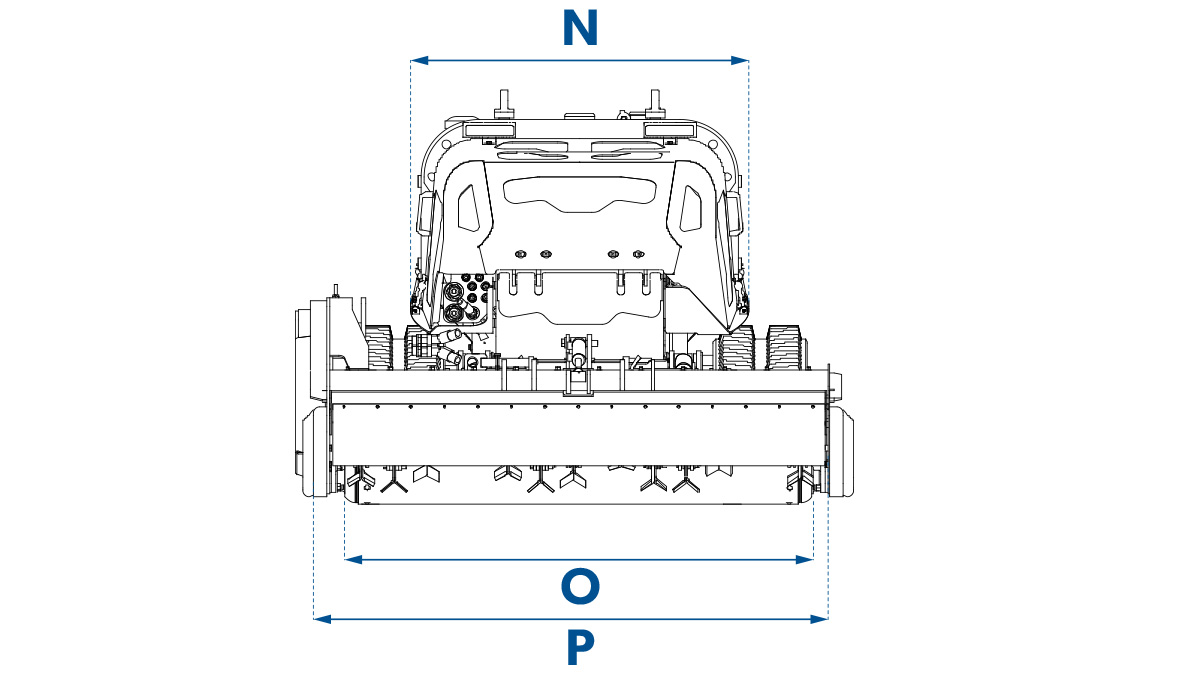

  Metric Imperial
N 1000mm 39 ½”
O 1450mm 57 ¼”
P 1665mm 65 ½”

Our range of Accessories for the Flailbot Excel Stage V / T4 Final

Forestry Head

Designed to cut thicker vegetation than the standard cutting head, with swinging hammers as standard and a fixed hammer rotor option.
Forestry Head

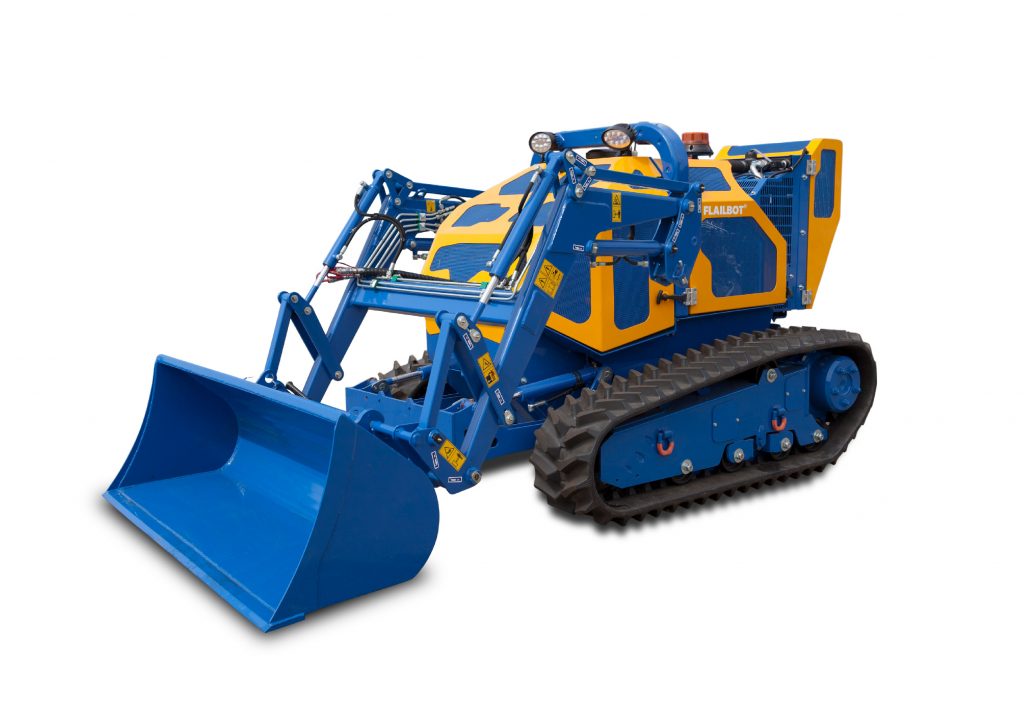

Front End Loader

Front end loader with parallel lift function as standard for ultimate bucket control. (NB. Bucket sold separately).
Front End Loader

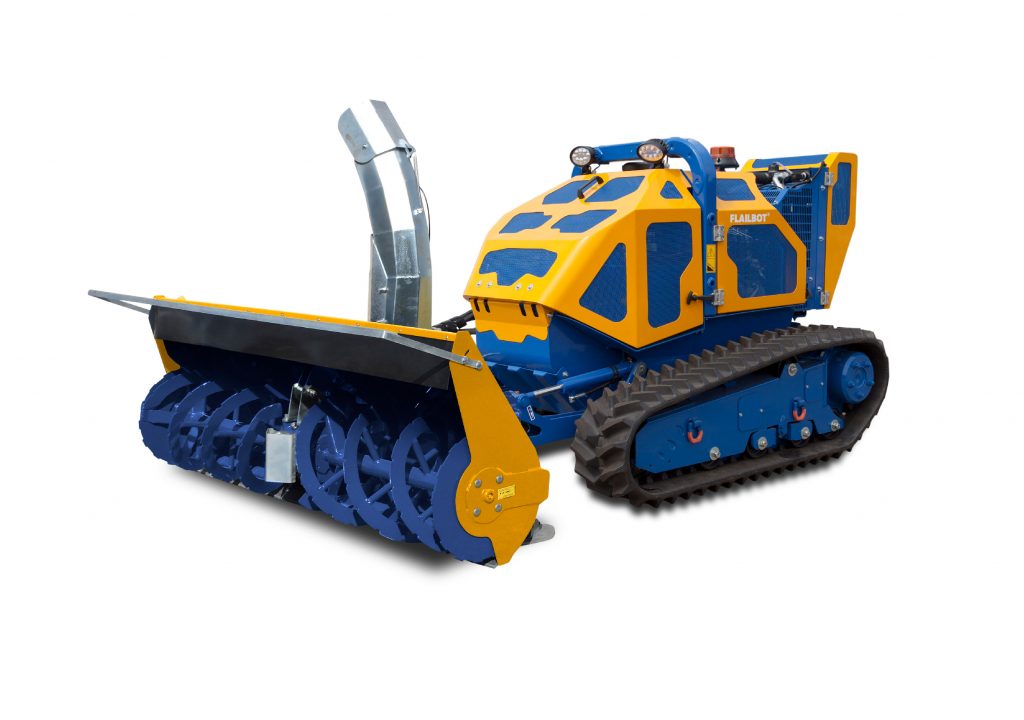

Snow Blower

Hydraulic powered snow blower, fitted with a swivelling chute to blow snow, LH & RH and straight ahead.
Snow Blower

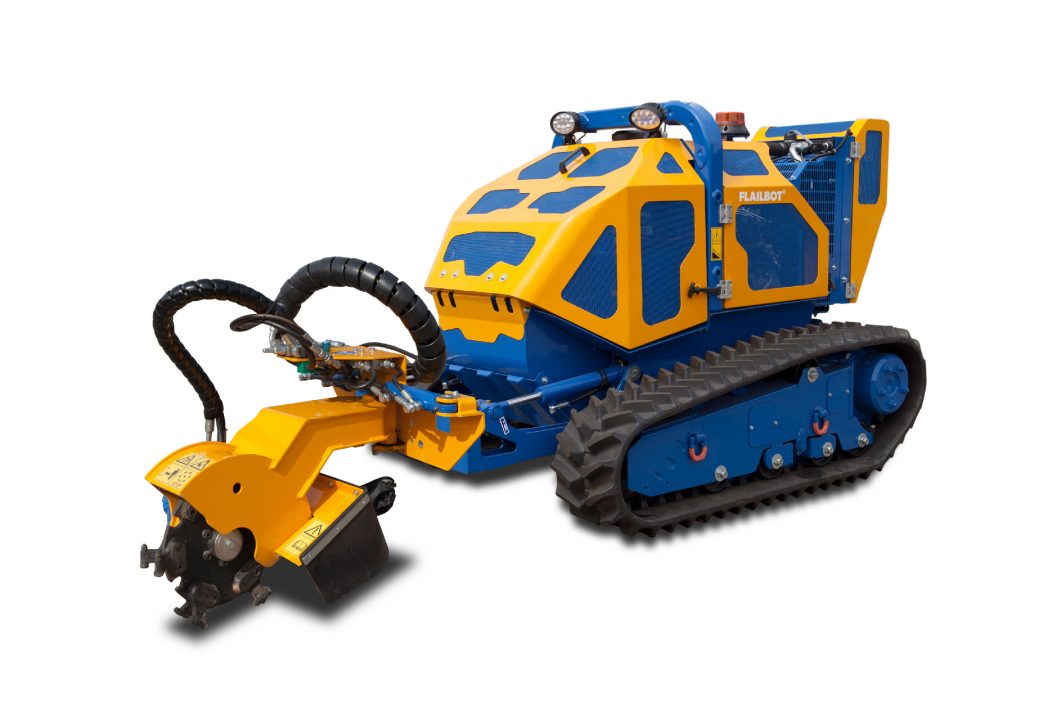

Stump Grinder

Powerful, yet compact designed stump grinder. For removal of tree stumps after cutting the tree down.
Stump Grinder

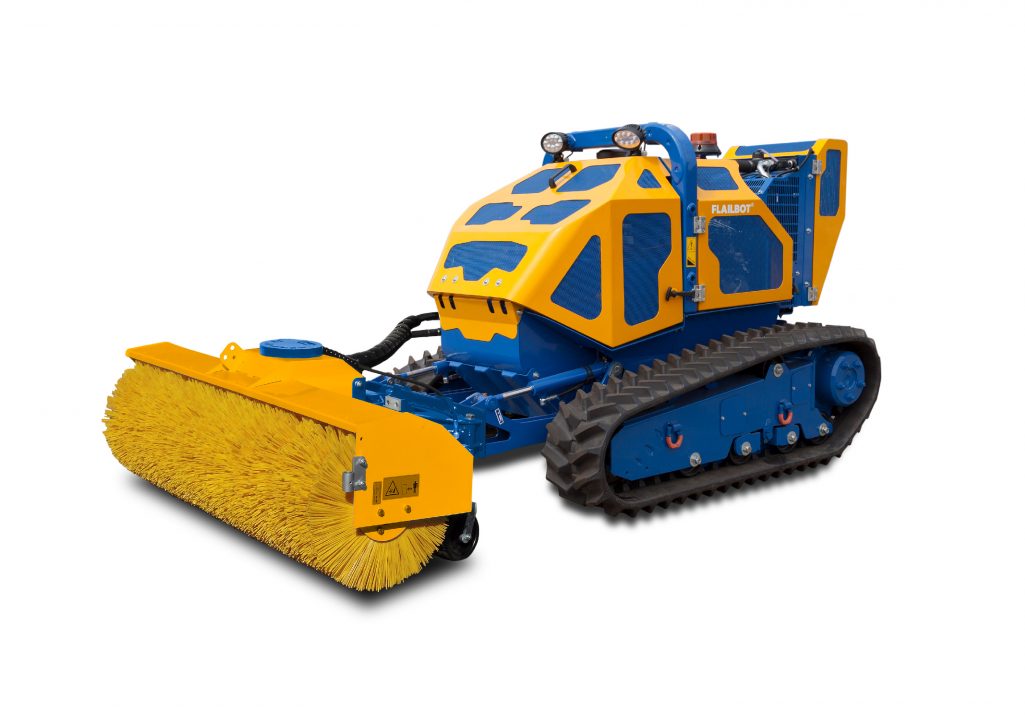

Sweeper

Sweeper designed for fast clearance and sweeping operations, and can be angled left, right and straight ahead.
Sweeper

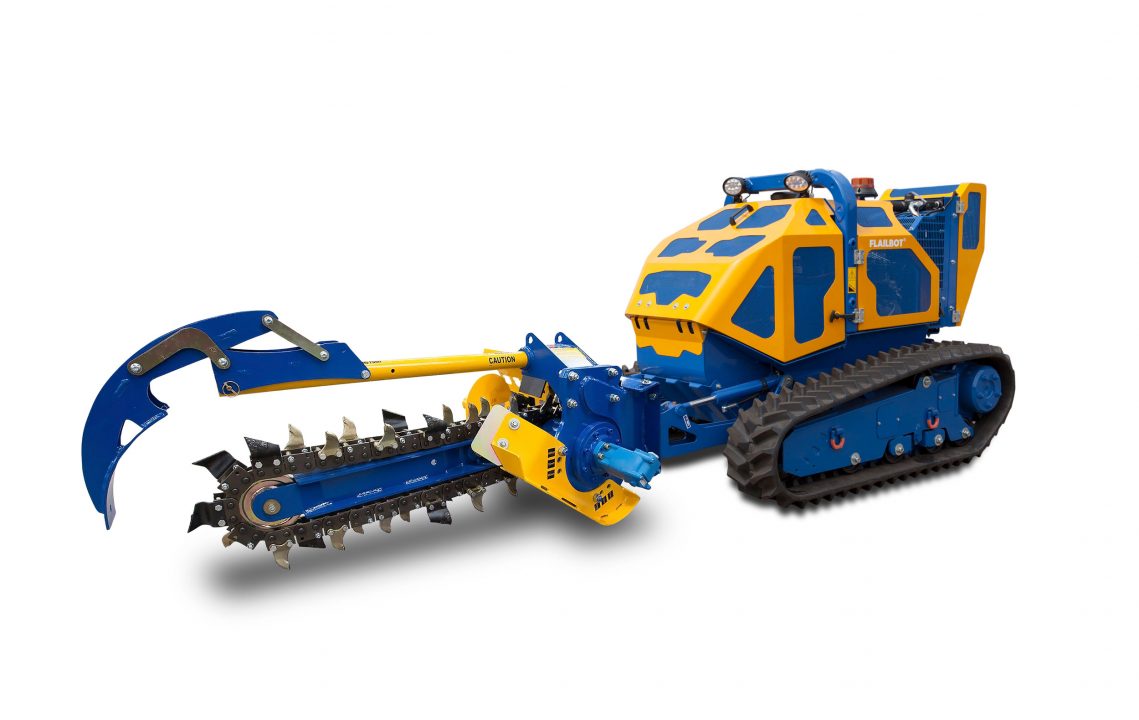

Trencher

For cutting trenches in restricted areas, and on prestigious surfaces, cuts a small trench for pipes and cables to be laid.
Trencher
