Flailbot Compact Stage V / T4 Final

Flailbot Compact Stage V / T4 Final carries all the same features as the Mini model, with the bigger Flailbot original 50hp Perkins industrial powerplant.

Product Specifications

Standard = Standard Optional = Optional Not Available = Not Available / Not Applicable

Model	Compact Stage V / T4 Final (50hp)
Operation
Max Slope	55°
Transmission	Hydrostatic
Speed	0-7 km/h
Weight	1110kg / 2,425 lbs

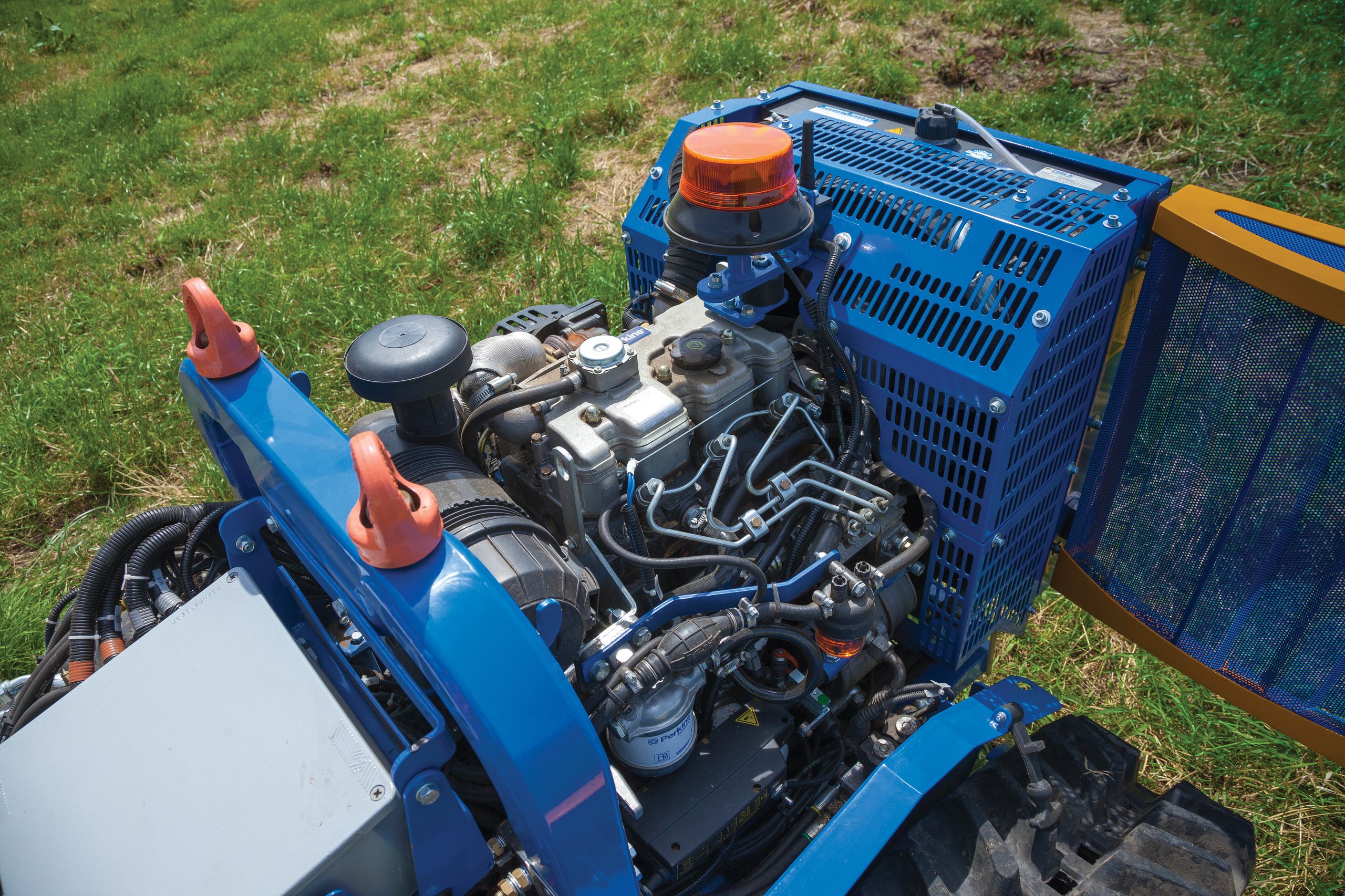

Engine
Brand / Make	Perkins
Model	3 Cylinders, Diesel
Engine Size	1.662 Litres / 101.4 in³
Power	36 kW / 49 Cv
Max Torque	166 Nm / 122 ft-lb @ 1400 rpm
Intake	Turbocharged
Cooling	Liquid
Air Filter	Dry
Diesel Tank Capacity	24 Litres / 6.3 USG
Engine Oil Capacity	6 Litres / 2 USG
Electrical Circuit
Operating Voltage	12 Vcc
Alternator	85 Amp
Battery	44 Ah
Hydraulic System
Displacement	Tandem piston pump with variable engine size and closed circuit
Displacement Capacity	104 Litres / 27 USG max @ 2750 rpm
Displacement Pressure	320 Bar max
Services	Gear Pump
Services Capacity	15 Litres / 4 USG max @ 2750 rpm
Services Pressure	200 Bar max
Tool	Closed Circuit Piston Pump
Tool Capacity	77 Litres / 20 USG max @ 2750 rpm
Tool Pressure	320 Bar max
Oil Tank Capacity	25 Litres / 7 USG
Operating Oil Quantity	35 Litres / 9 USG
Controls
Brand	Scanreco
Frequency	2.4 GHz
Range Signal	150m / 492′
Battery	Rechargeable

Model

Compact Stage V / T4 Final (50hp)

Operation

Max Slope

55°

Transmission

Hydrostatic

Speed

0-7 km/h

Weight

1110kg / 2,425 lbs

Engine

Brand / Make

Perkins

Model

3 Cylinders, Diesel

Engine Size

1.662 Litres / 101.4 in³

Power

36 kW / 49 Cv

Max Torque

166 Nm / 122 ft-lb @ 1400 rpm

Intake

Turbocharged

Cooling

Liquid

Air Filter

Dry

Diesel Tank Capacity

24 Litres / 6.3 USG

Engine Oil Capacity

6 Litres / 2 USG

Electrical Circuit

Operating Voltage

12 Vcc

Alternator

85 Amp

Battery

44 Ah

Hydraulic System

Displacement

Tandem piston pump with variable engine size and closed circuit

Displacement Capacity

104 Litres / 27 USG max @ 2750 rpm

Displacement Pressure

320 Bar max

Services

Gear Pump

Services Capacity

15 Litres / 4 USG max @ 2750 rpm

Services Pressure

200 Bar max

Tool

Closed Circuit Piston Pump

Tool Capacity

77 Litres / 20 USG max @ 2750 rpm

Tool Pressure

320 Bar max

Oil Tank Capacity

25 Litres / 7 USG

Operating Oil Quantity

35 Litres / 9 USG

Controls

Brand

Scanreco

Frequency

2.4 GHz

Range Signal

150m / 492′

Battery

Rechargeable

Working Dimensions & Weights

Engine Size / Capacity: 50hp / 1.7 Litres / 103.7 in³
Flailibot with Oil and Fuel: 940kg / 2,072lbs
1300 Flailhead: 210kg / 462lbs
Remote Control Distance up to: 150m / 492′
Working angle up to: 55°

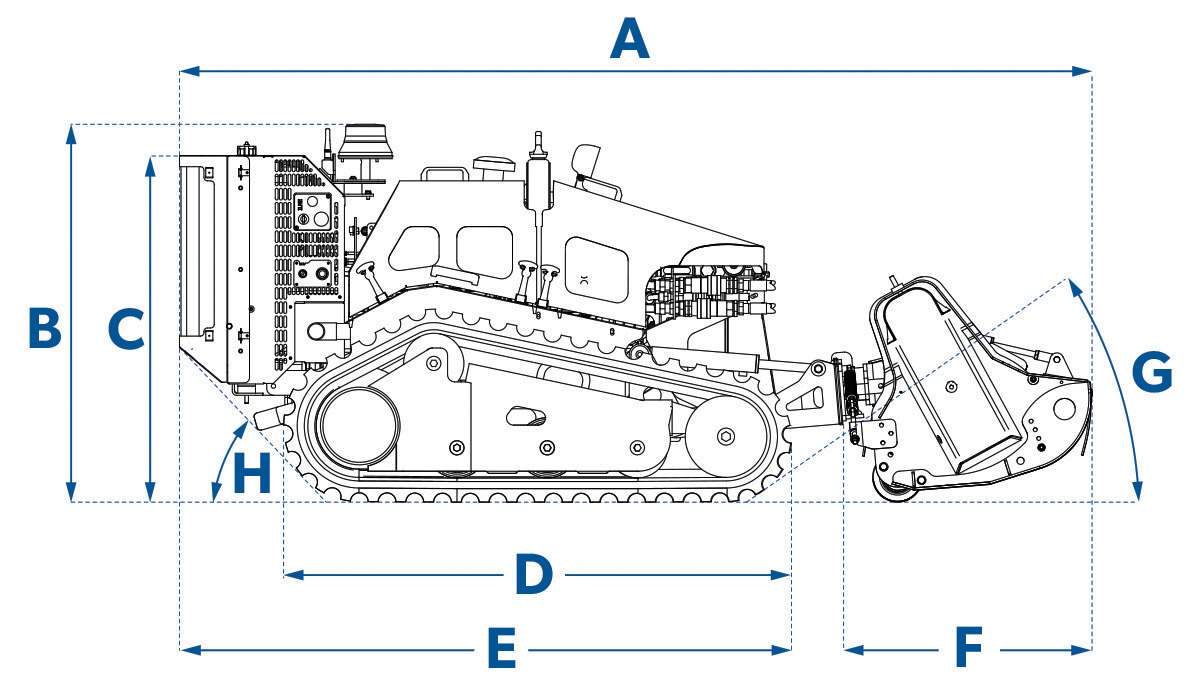

	Metric	Imperial
A	2570mm	101 ¼”
B	1064mm	41 ¾”
C	975mm	38 ¼”
D	1429mm	56 ¼”
E	1723mm	67 ¾”
F	660mm	25 ¾”
G	35°	35°
H	47°	47°

Metric

Imperial

2570mm

101 ¼”

1064mm

41 ¾”

975mm

38 ¼”

1429mm

56 ¼”

1723mm

67 ¾”

660mm

25 ¾”

35°

47°

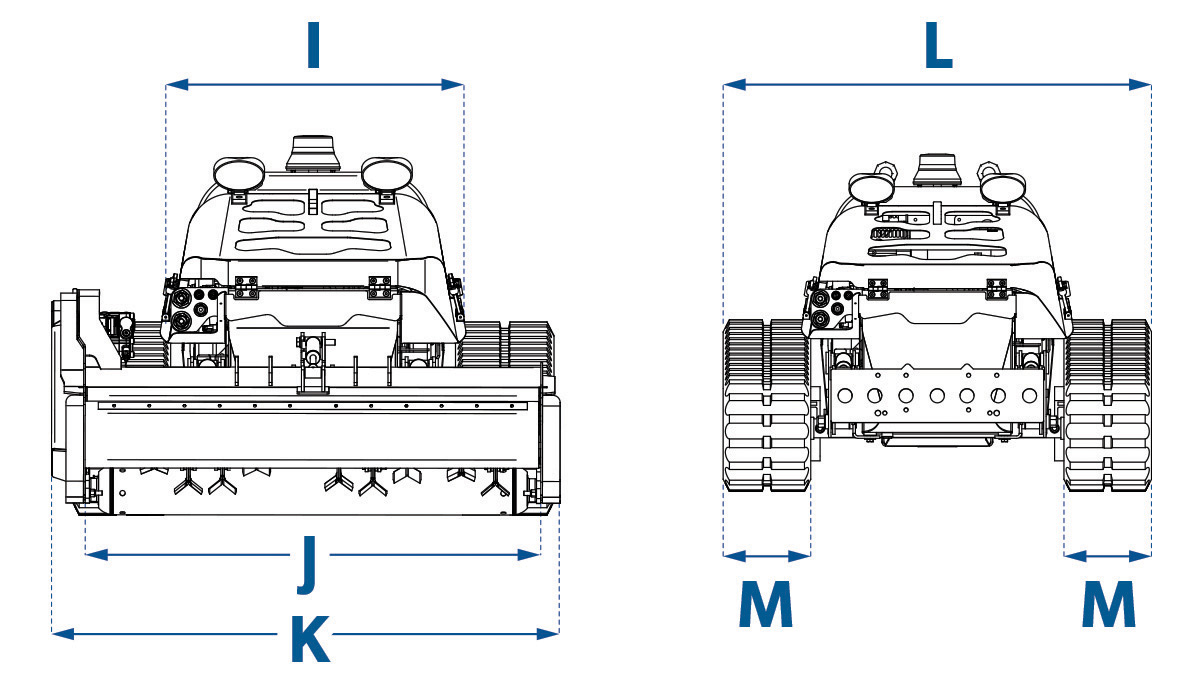

	Metric	Imperial
I	1320mm	52″
J	1295mm	51″
K	1441mm	56 ¾”
L	1370mm	54″
M	160mm	6 ¼”

Metric

Imperial

1320mm

52″

1295mm

51″

1441mm

56 ¾”

1370mm

54″

160mm

6 ¼”

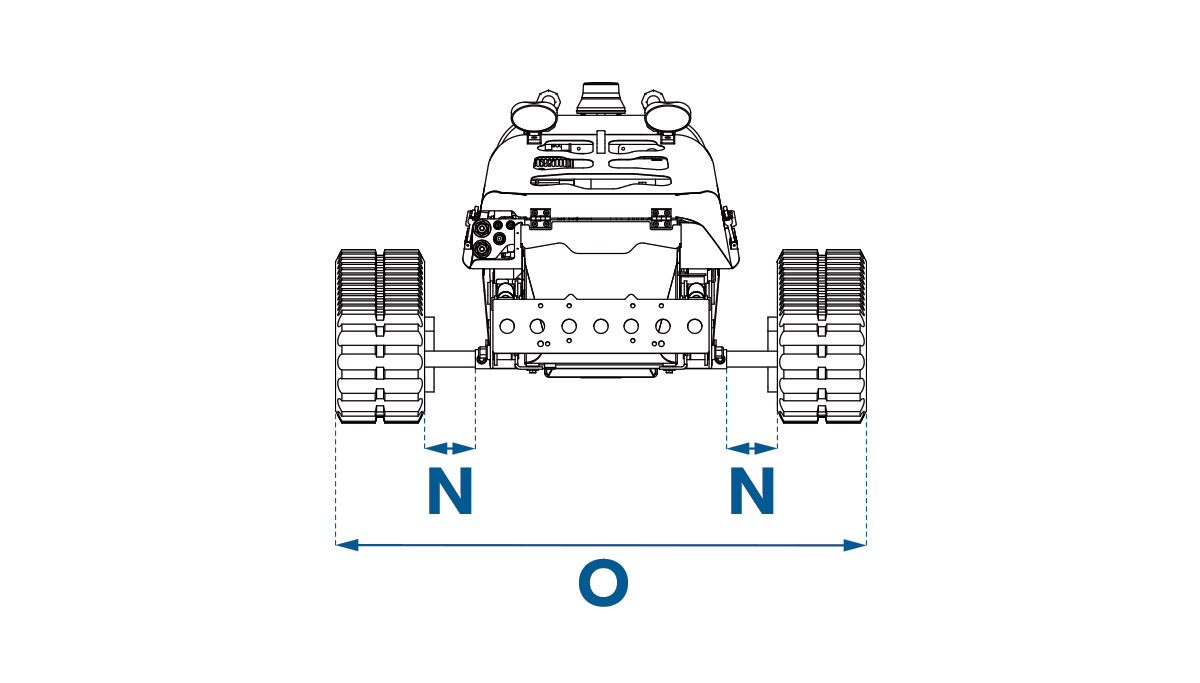

	Metric	Imperial
N	150mm	6″
O	1670mm	65 ¾”

Metric

Imperial

150mm

6″

1670mm

65 ¾”
