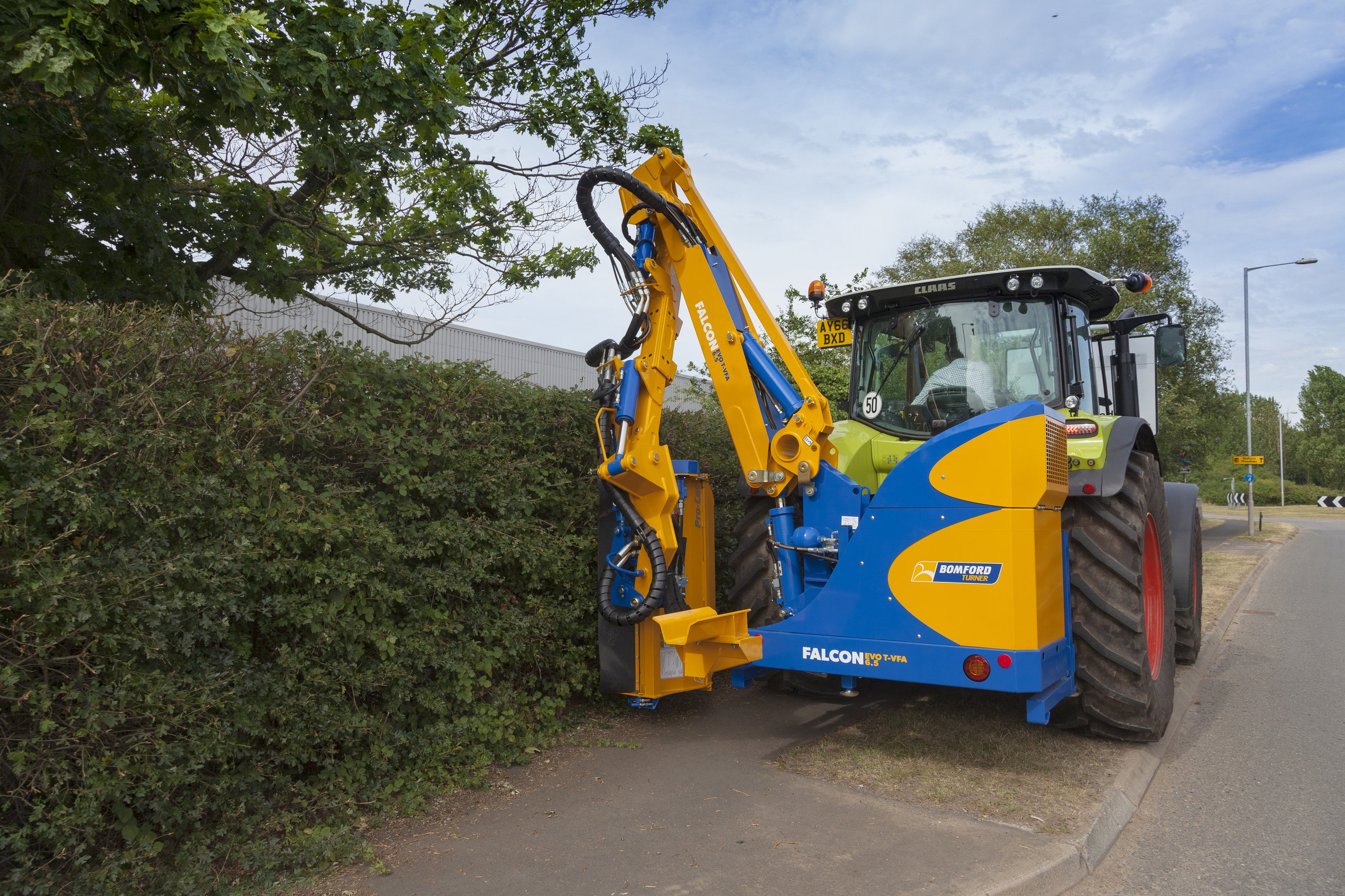

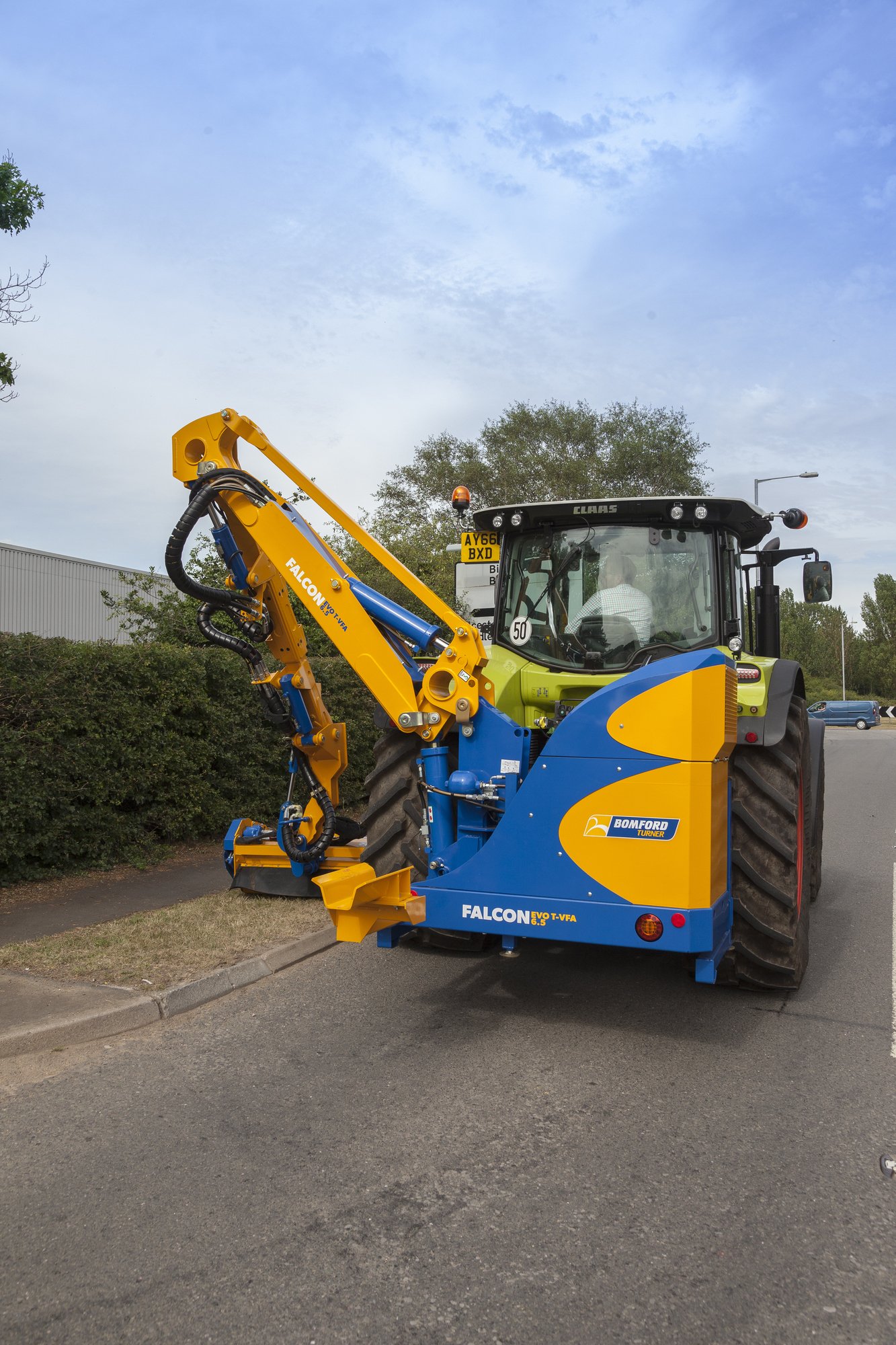

This flagship model in the VFA range provides an unrivalled 2.1m total travel including 1.8m forward reach, resulting in an optimum mid-mounted cutting head position.
Key Features:
- 6.5m reach
- Over 2m traverse on variable forward arm
- Axle bracket mounted only
- 125 l/min independent system
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Model |
6.5m T-VFA (21’4″) |
Tractor Requirements
|
| Minimum horse power |
120hp |
| Minimum weight |
5500kg / 12125Lbs |
Base Unit Mounting Options
|
| Front mount |
Not Available |
| Mid-mount |
Not Available |
| Rear mount |
Standard |
| Three point linkage (CAT II) |
Not Available |
| Axle bracket |
Standard |
Overall machine parameters
|
| Machine weight with head and oil |
2270kg / 5005Lbs |
| Capacity of oil tank |
250 Litres / 66USG |
| Weight of machine with oil but without head |
2180kg / 4806Lbs |
Controls
|
| Cable control (CC) |
Not Available |
| Low pressure hydraulics (LPH) |
Not Available |
| Electronic proportional control (EPP) |
Optional |
| Intelligent control system (ICS) |
Optional |
| Cable rotor reverse |
Optional |
| Electronic rotor reverse |
Optional |
Hydraulic system
|
| System capability |
74 hp |
| Pump flow rate |
125 Litres / 33usg |
| Pump type (Gear / Piston / Helical) |
Gear |
| Pump arrangement (Twin / In-line) |
Twin |
| Independent hydraulics |
Standard |
| Oil cooler |
Standard |

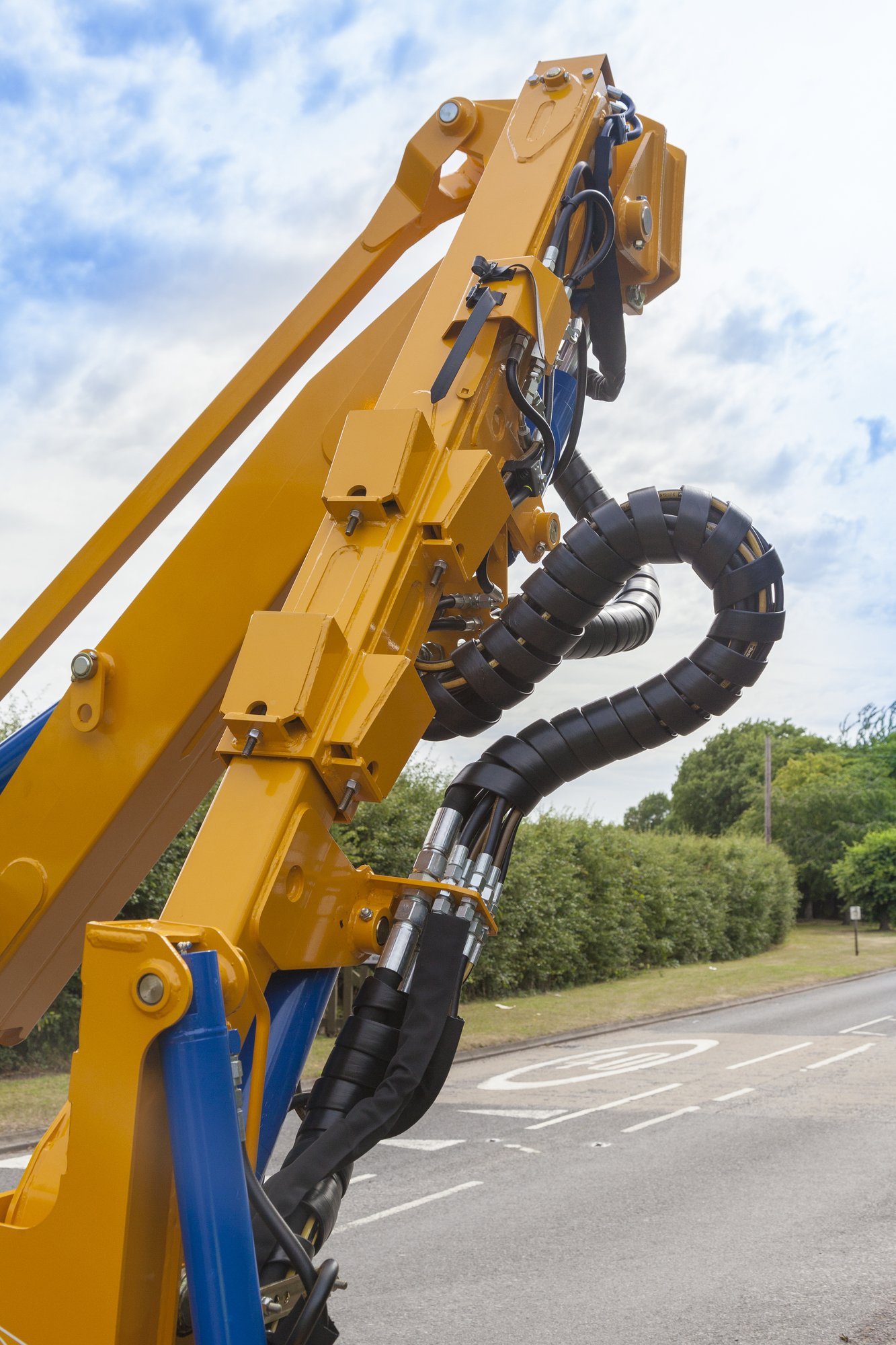

Arm features and main frame
|
| Forward arm |
2112mm / 6’11” |
| Telescopic arm |
Standard |
| Telescopic arm stroke |
900mm / 2’11” |
| Power slew |
Standard |
| Power slew angle |
94° |
| Gravity breakout protection |
Not Available |
| Hydraulic breakout protection |
Standard |
| Arm float – Manual operation |
Standard |
| Arm float – Electronic operation |
Optional |
| Head float – Manual operation |
Standard |
| Head float – Electronic operation |
Optional |
| Left hand cutting |
Optional |
| Right hand cutting |
Optional |
| Left and right hand cutting |
Not Available |
Arm attachments available
|
| Variable track bracket (VTB) |
Not Available |
| Sheartrim cutter bar |
Optional |
| Pro-Saw |
Optional |
| Ditch cleaner |
Optional |
| Rotary head |
Optional |
Accessories
|
| Road lights |
Standard |
| Debris blower |
Optional |
| Cab guard kit |
Standard |
Cutting Heads
|
| 1.2m Pro-Cut with 115mm Roller |
Standard |
| 1.2m Pro-Cut with 150mm Roller |
Standard |
| 1.5m Pro-Cut with 115mm Roller |
Optional |
| 1.5m Pro-Cut with 150mm Roller |
Optional |
| 1.2m Pro-Cut ISMP with 115mm Roller |
Optional |
| 1.2m Pro-Cut ISMP with 150mm Roller |
Optional |
| 2m HD head |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 1.2m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 2m HD head |
Optional |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Working Reach Dimensions
Head used to calculations: 1.2 Pro Cut
Side Reach – 6.5m T-VFA (21’4)
|
| A |
6.5m |
21’4 |
| B |
6.83m |
22’5″ |
| C |
4.61m |
15’2″ |
| D |
6.03m |
18’9″ |
| E |
7.66m |
25’2″ |
| Y |
1.6m |
5’3″ |
| X |
1.0m |
3’4″ |
| Forward Reach – T-VFA 6.5m (21’4) |
| A |
6.61m |
21’8″ |
| F |
5.93m |
19’5″ |
| G |
6.4m |
21′ |
| H |
1.82m |
6′ |
| J |
0.9m |
2’11” |
