Bomford Turner
Landscape • Arm Mowers

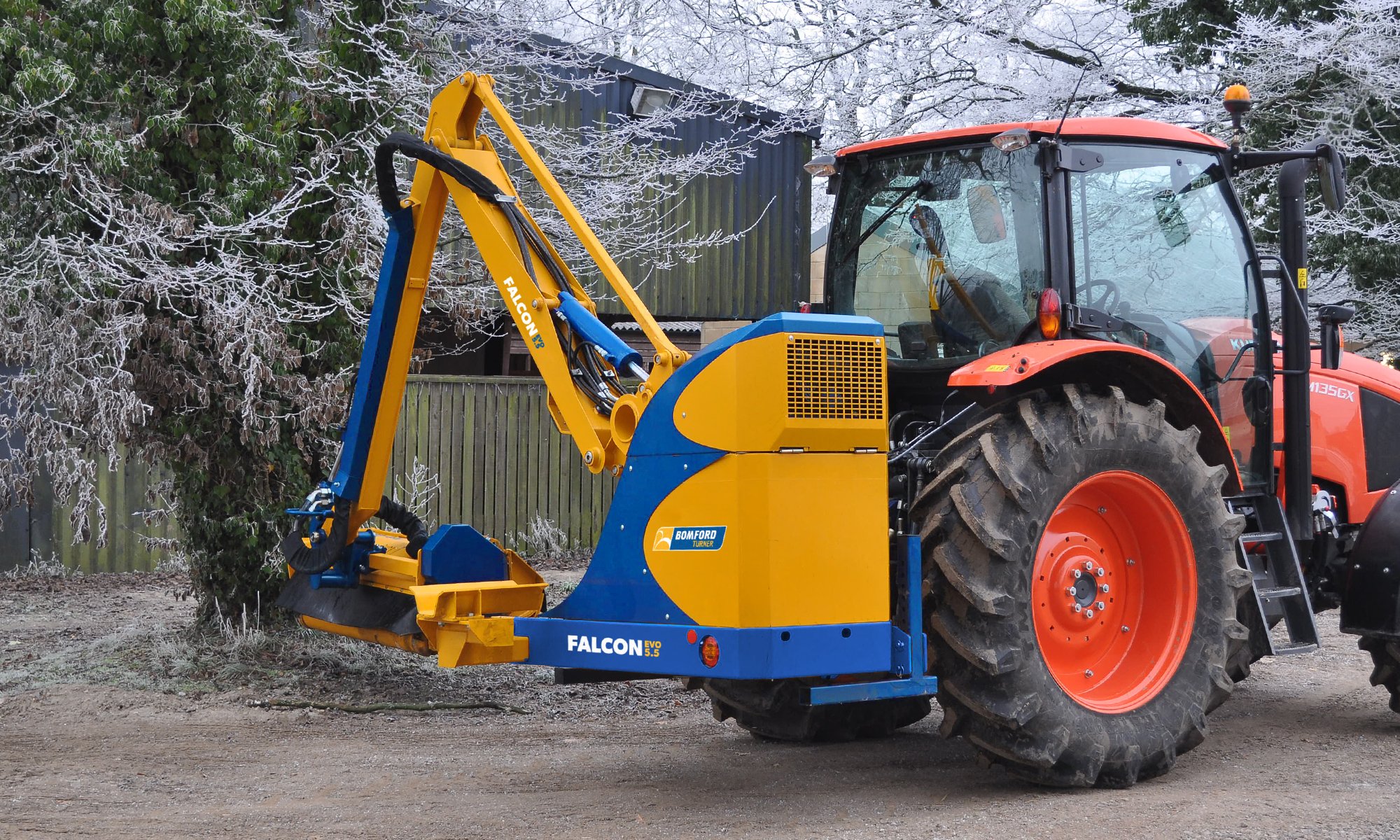

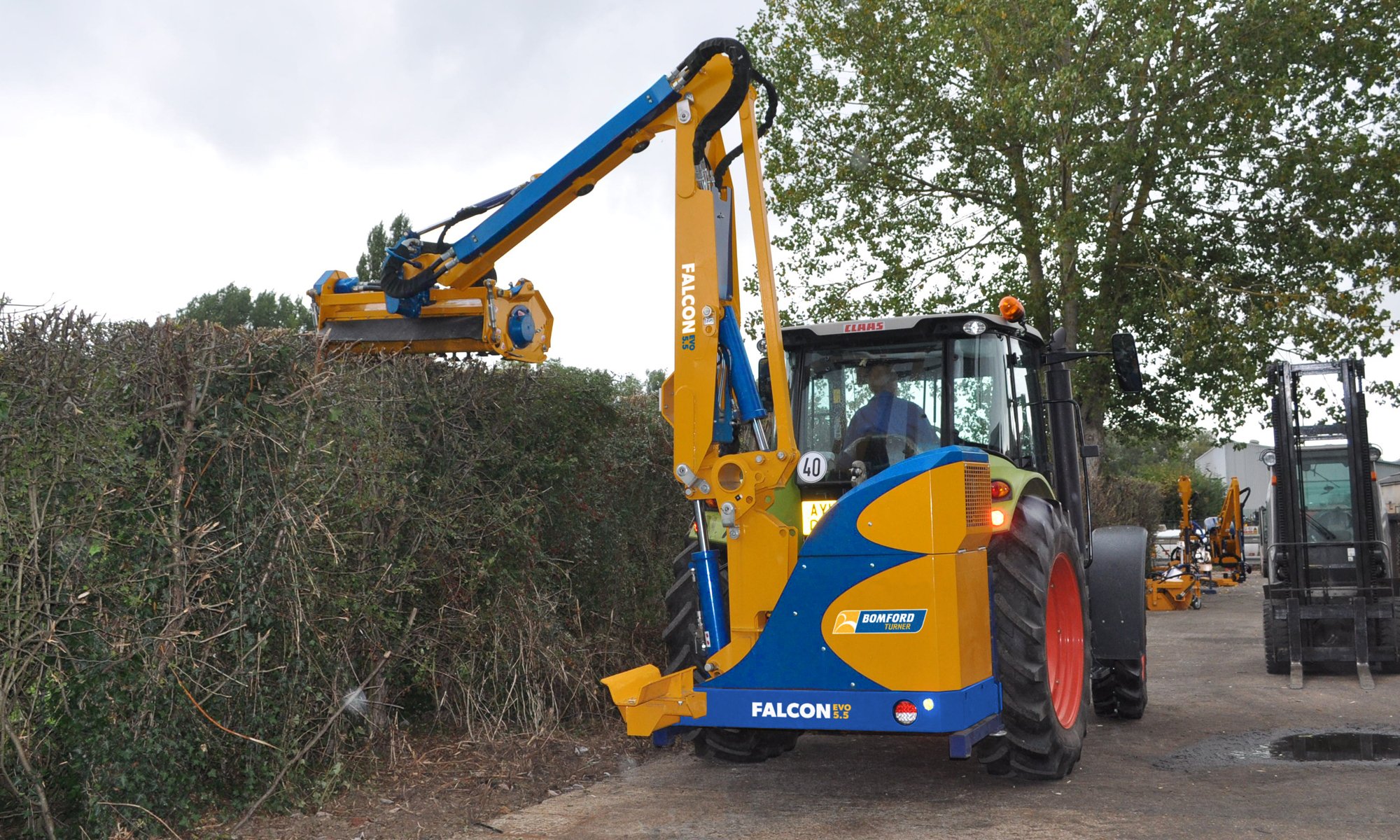

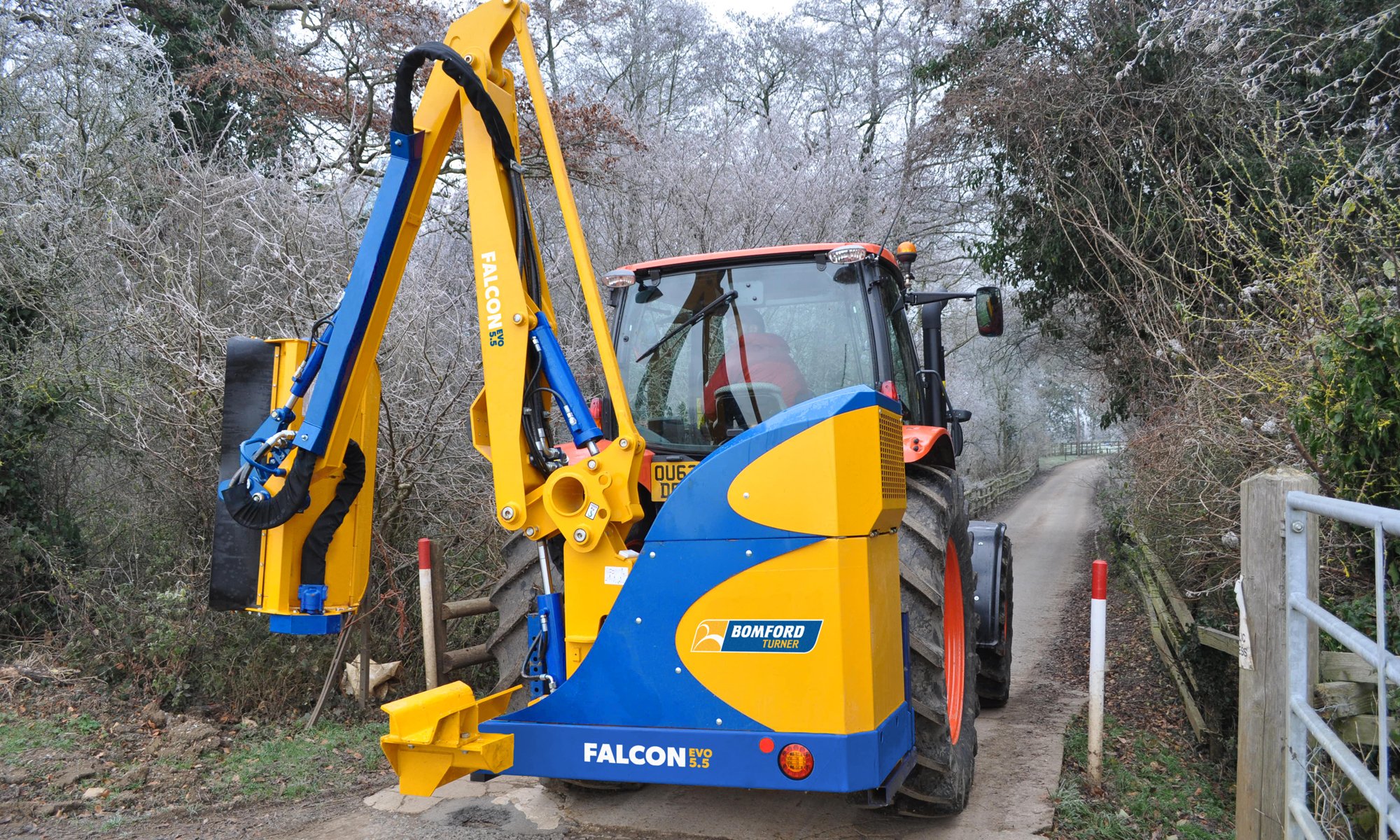

Falcon Evo

The Falcon Evo range has been specifically designed for the large scale contractor.

Download Datasheet

With high specification options and a range of controls to select from, the Falcon range is the first choice for contractors.

Key Features:

  • 5.5m, 6.0m or 6.5m reach

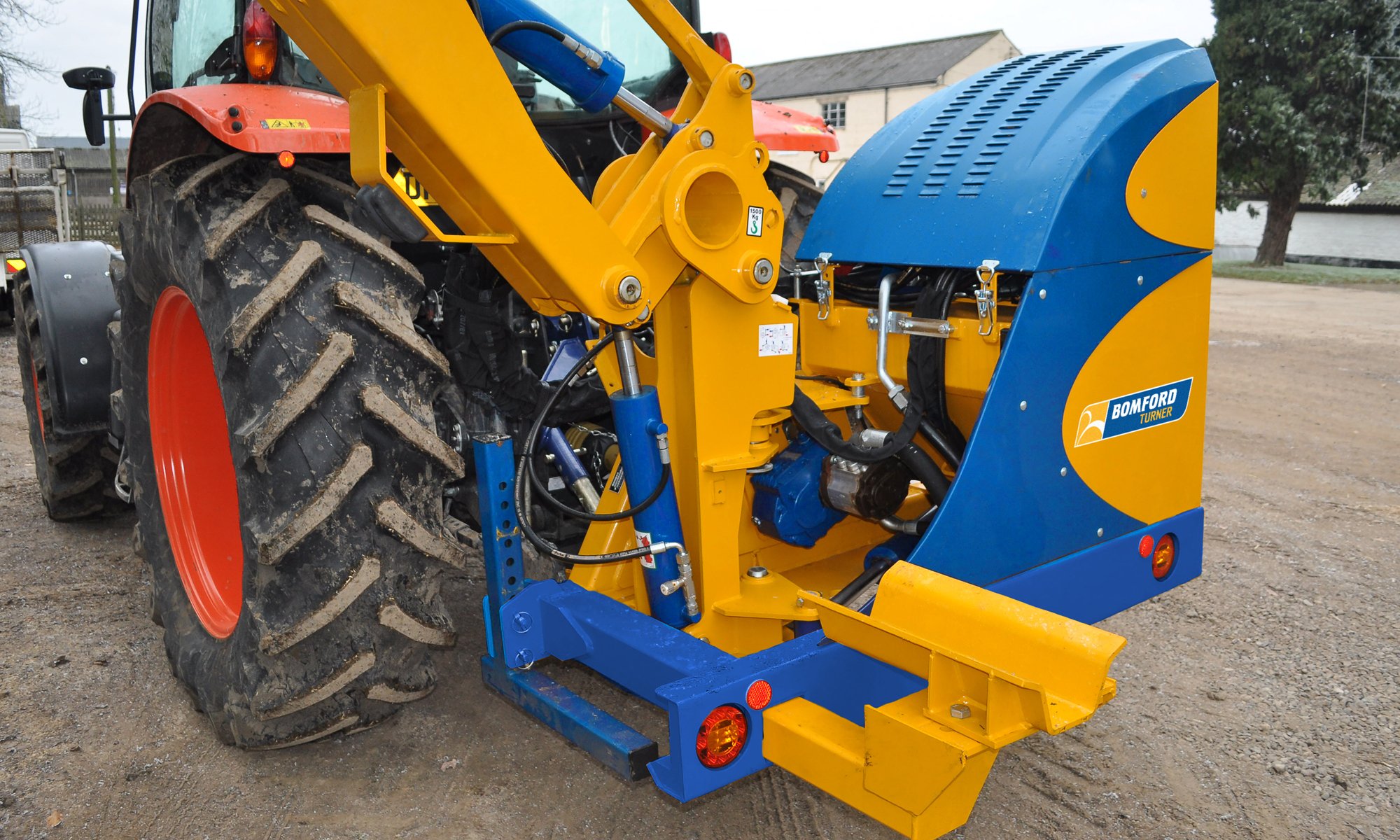

  • Heavy Duty Linkage
  • 125 l/min independent system

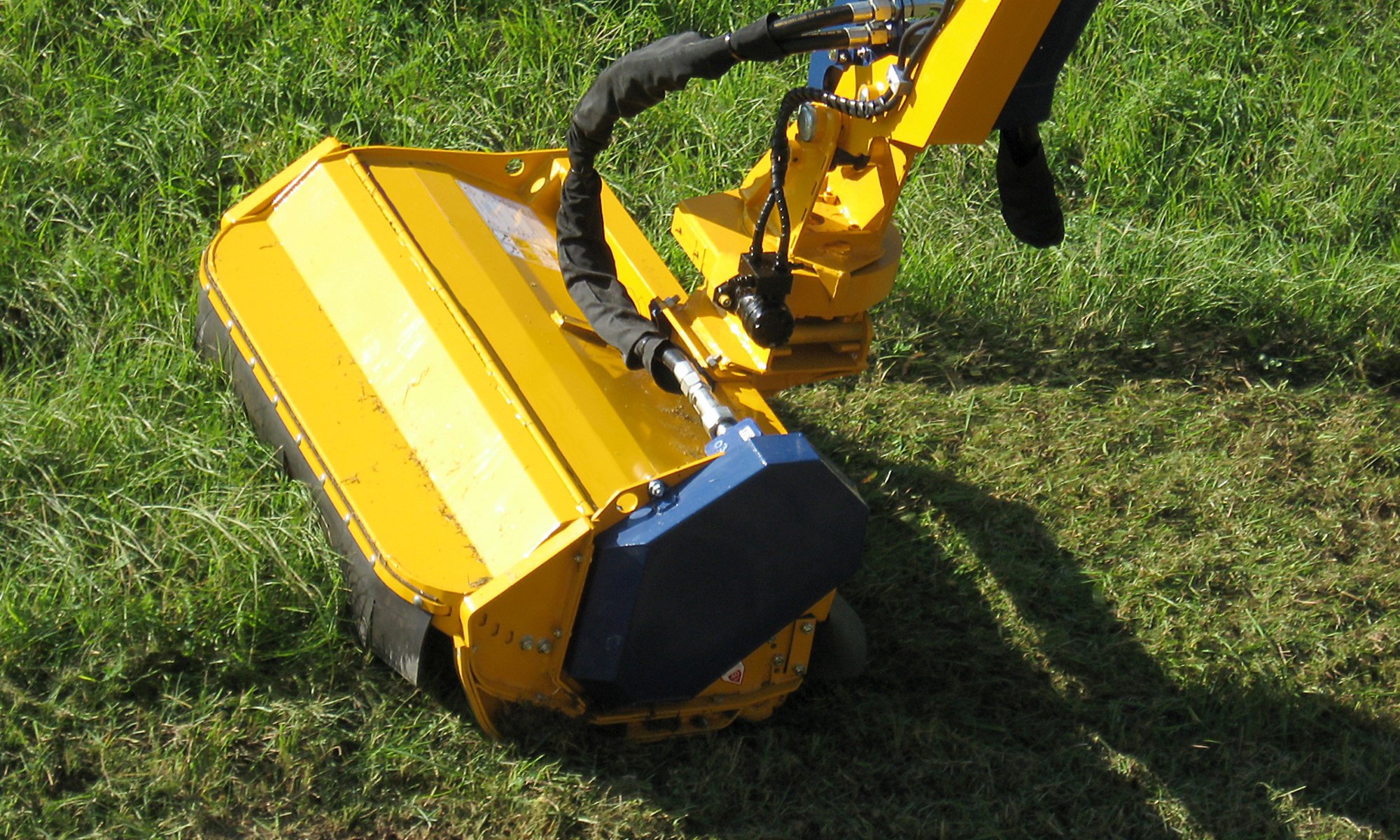

  • 1.2m or 1.5m cutting head
  • Parallel option

Product Specifications

Standard = Standard   Optional = Optional   Not Available = Not Available

Model 5.5m (18’1″) 6.0m T (19’8″) 6.5m T (21’4″) Bi-Way 5.5 (18’1)

Tractor Requirements
Minimum horse power 75hp 75hp 75hp 75hp
Minimum weight 4500kg / 9921Lbs 5000kg / 11023Lbs 5500kg / 12125Lbs 5500kg / 12125Lbs

Base Unit Mounting Options
Front mount Not Available Not Available Not Available Optional
Mid-mount Not Available Not Available Not Available Not Available
Rear mount Standard Standard Standard Standard
Three point linkage (CAT II) Standard Standard Optional Standard
Axle bracket Optional Optional Standard Optional

Overall machine parameters
Machine weight with head and oil 1790kg / 3946Lbs 1890kg / 4167Lbs 2190kg / 4828Lbs 1930kg / 4255Lbs
Capacity of oil tank 250 Litres / 66USG 250 Litres / 66USG 250 Litres / 66USG 250 Litres / 66USG
Weight of machine with oil but without head 1500kg / 3307Lbs 1600kg / 3527Lbs 1900kg / 4189Lbs 1640kg / 3616Lbs

Controls
Cable control (CC) Standard Standard Standard Standard
Low pressure hydraulics (LPH) Optional Optional Optional Optional
Electronic proportional control (EPP) Optional Optional Optional Optional
Intelligent control system (ICS) Optional Optional Optional Optional
Cable rotor reverse Optional Optional  Optional  Optional
Electronic rotor reverse Optional Optional Optional Optional

Hydraulic system
System capability 74 hp 74hp 74hp 74hp
Pump flow rate 125 Litres / 33USG 125 Litres / 33USG 125 Litres / 33USG 125 Litres / 33USG
Pump type (Gear / Piston / Helical) Gear Gear Gear Gear
Pump arrangement (Twin / Inline) Twin Twin Twin Twin
Independent hydraulics Standard Standard Standard Standard
Oil cooler Optional Optional Optional Optional

Arm features and main frame
Forward arm Not Available Not Available Not Available Not Available
Forward arm reach Not Available Not Available Not Available Not Available
Telescopic arm Not Available Standard Standard Not Available
Telescopic arm stroke Not Available 900mm / 3′ 900mm / 3′ Not Available
Power slew Standard Standard Standard Standard
Power slew angle 94° 94° 94° 94°
Gravity breakout Not Available Not Available Not Available Not Available
Hydraulic breakout Standard Standard Standard Standard
Arm float – Manual Optional Optional Optional Optional
Arm float – Electronic Optional Optional Optional Optional
Head float – Manual Standard Standard Standard Standard
Head float – Electronic Optional Optional Optional Optional
Left hand cutting Optional Optional Optional Optional
Right hand cutting Optional Optional Optional Optional
Left and right hand cutting Not Available Not Available Not Available Not Available

Arm attachments available
Variable track bracket (VTB) Optional Optional Optional Not Available
Sheartrim cutter bar Optional Optional Optional Optional
Pro-Saw Optional Optional Optional Optional
Ditch cleaner Optional Optional Optional Not Available
Rotary head Optional Optional Optional Not Available

Accessories
Road lights Standard Standard Standard Standard
Debris blower Optional Optional Optional Optional
Cab guard kit Standard Standard Standard Standard

Cutting Heads
1.2m Pro-Cut with 115mm roller Standard Standard Standard Standard
1.2m Pro-Cut with 150mm roller Standard Standard Standard Standard
1.5m Pro-Cut with 115mm roller Optional Optional Optional Optional
1.5m Pro-Cut with 150mm roller Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 115mm roller Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 150mm roller Optional Optional Optional Optional
2m HD head Optional Optional Optional Optional

Flails

See the table below to see which flail heads are available for the different cutting heads listed above.

  BB MP44 HS60 Pro Flail T40 T60 True Cut Bushmaster
1.2m Pro-Cut with 115mm roller Standard Standard Standard Standard Standard Standard Standard Standard
1.2m Pro-Cut with 150mm roller Standard Standard Standard Standard Standard Standard Standard Standard
1.5m Pro-Cut with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.5m Pro-Cut with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional
2m HD head Optional Standard Not Available Not Available Not Available Not Available Not Available Not Available

Working Reach Dimensions

Head used to calculations: 1.2 Pro-Cut


  5.5m (18’1″) 6.0m T (19’8″)
A 5.54m 18’2″ 6.07m 19’1″
B 5.69m 18’8″ 6.22m 20’5″
C 3.49m 11’5″ 4.42m 14’6″
D 4.42m 14’6″ 4.54m 14’11”
E 6.06m 19′ 6.18m 20’3″
X 1.35m 3’3″ 1.0m 3’3″
Y 1.0m 4’5″ 1.35m 4’5″
  6.5m T (21’4″) Bi-Way 5.5 (18’1″)
A 6.42m 21’1″ 5.72m 18’9″
B 6.74m 22’1″ 5.82m 19’1″
C 4.10m 13’11” 3.86m 12’8″
D 5.65m 18’6″ 4.74m 15’7″
E 7.67m 25’2″ 6.92m 22’8″
X 1.35m 4’5″ 1.35m 4’5″
Y 1.0m 3’3″ 1.0m 3’3″



Our range of Accessories for the Falcon Evo

Attachments

A wide selection of attachments is available to improve the versatility and therefore the profitability of the Bomford arm mowers range.

Attachments

Controls

Every machine has a choice of tailormade control systems available on most arm mowers.

Controls

Flails

The vast majority of our heads now offer the ability to fit any one of ten flail designs.

Flails

Heads

Most heads offer a choice of flails and ability to adjust rotor speed to suit verge or hedge.

Heads
