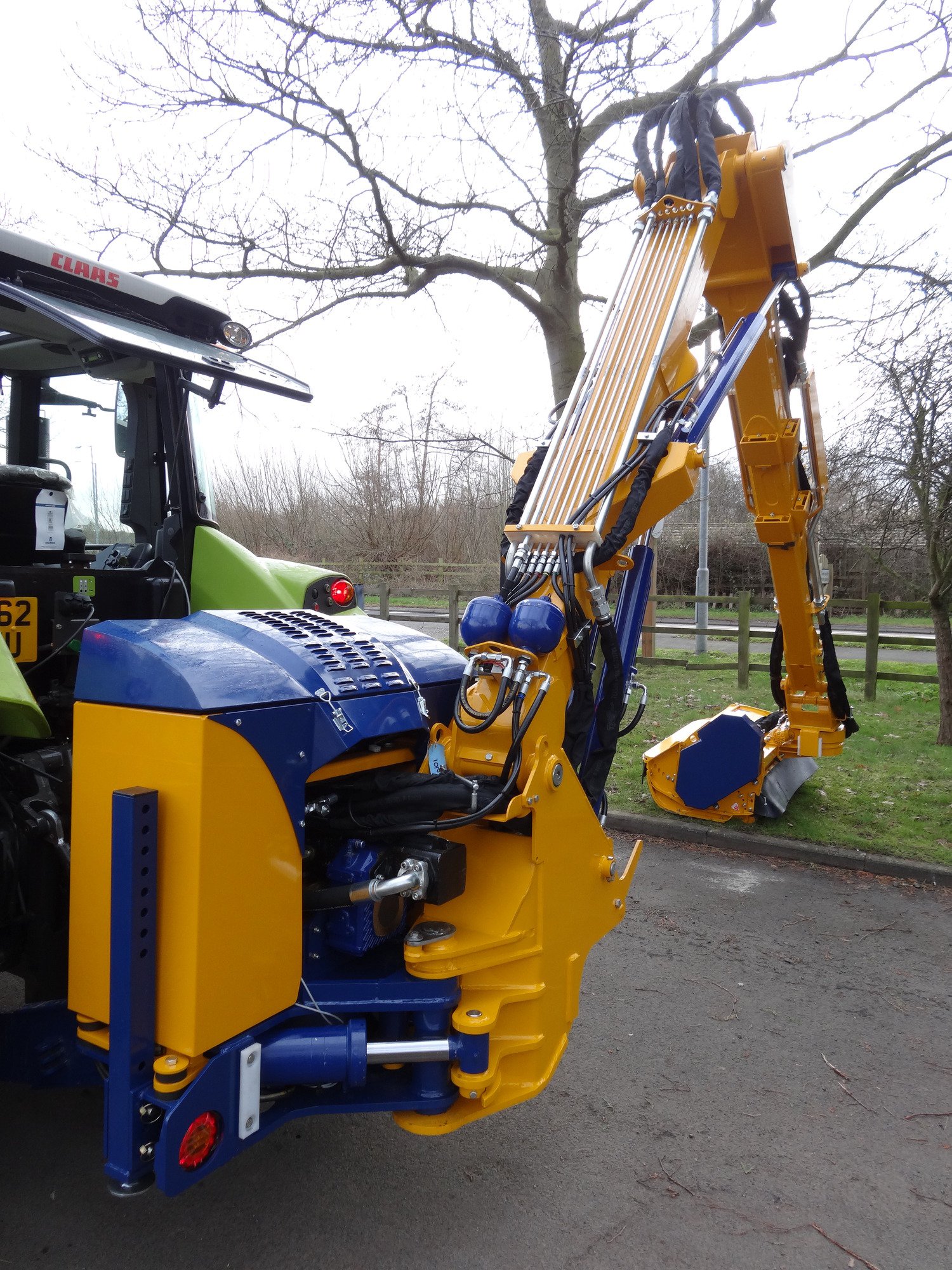

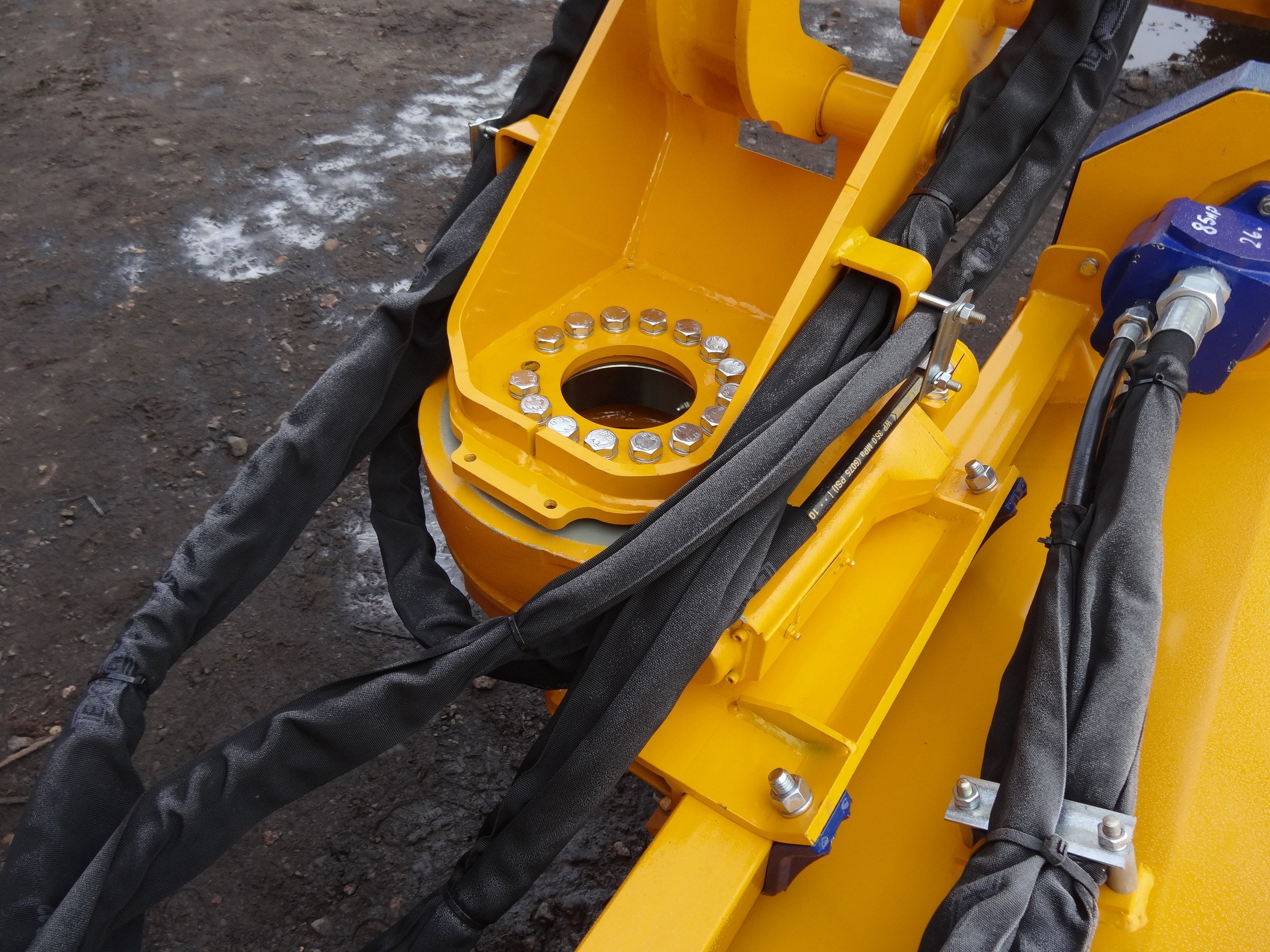

The Eagle can be specified with either a gear or a piston system, and features wraparound steel hoses on the first arm and kingpost for durability and improved hose routing, along with weight saving.
Key Features:
- 8m reach
- Left and right handed cutting
- 137 l/min independent hydraulic system
- 1.2m, 1.5m or 2m cutting head
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Model |
Eagle 8.0m T (26’4″) |
Tractor Requirements
|
| Minimum horse power |
160hp |
| Minimum weight |
7000kg / 15432bs |
Base Unit Mounting Options
|
| Front mount |
Not Available |
| Mid-mount |
Not Available |
| Rear mount |
Standard |
| Three point linkage (CAT II) |
Not Available |
| Axle bracket |
Standard |
Overall machine parameters
|
| Machine weight with head and oil |
2590kg / 5710lbs |
| Capacity of oil tank |
250 Litres / 66USG |
| Weight of machine with oil but without head |
2410kg / 5313lbs |
Controls
|
| Cable control (CC) |
Not Available |
| Low pressure hydraulics (LPH) |
Not Available |
| Electronic proportional control (EPP) |
Not Available |
| Intelligent control system (ICS) |
Standard |
| Cable rotor reverse |
Not Available |
| Electronic rotor reverse |
Standard |
Hydraulic system
|
| System capability |
85 hp |
| Pump flow rate |
137 Litres / 36USG |
| Pump type (Gear / Piston / Helical) |
Gear |
| Pump arrangement (Twin / In-line) |
Twin |
| Independent Hydraulics |
Standard |
| Oil Cooler |
Standard |
Arm features and main frame
|
| Forward arm |
Not Available |
| Forward arm reach |
Not Available |
| Telescopic arm |
Standard |
| Telescopic arm stroke |
1300mm / 4’3″ |
| Power slew |
Standard |
| Power slew angle |
180° |
| Gravity breakout protection |
Not Available |
| Hydraulic breakout protection |
Standard |
| Arm float – Manual operation |
Not Available |
| Arm float – Electronic operation |
Standard |
| Head float – Manual operation |
Not Available |
| Head float – Electronic operation |
Standard |
| Left hand cutting |
Optional |
| Right hand cutting |
Optional |
| Left and right hand cutting |
Standard |
Arm attachments available
|
| Variable track bracket (VTB) |
Not Available |
| Sheartrim cutter bar |
Optional |
| Pro-Saw |
Optional |
| Ditch cleaner |
Optional |
| Rotary head |
Optional |
Accessories
|
| Road lights |
Standard |
| Debris blower |
Not Available |
| Cab guard kit |
Standard |
Cutting Heads
|
| 1.2m Pro-Cut with 115mm Roller |
Standard |
| 1.2m Pro-Cut with 150mm Roller |
Standard |
| 1.5m Pro-Cut with 115mm Roller |
Optional |
| 1.5m Pro-Cut with 150mm Roller |
Optional |
| 1.2m Pro-Cut ISMP with 115mm Roller |
Optional |
| 1.2m Pro-Cut ISMP with 150mm Roller |
Optional |
| 2m HD Head |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 1.2m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 2m HD head |
Optional |
Standard |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Working Reach Dimensions
Head used to calculations: 1.2 Pro-Cut
| |
Eagle 8.0m T (26’4″) |
| A |
8.0m |
26’3″ |
| B |
7.8m |
25’7″ |
| C |
6.2m |
20’4″ |
| D |
7.0m |
23′ |
| E |
8.8m |
28’11” |
| X |
1.2m |
3’11” |
| Y |
1.2m |
3’11” |
