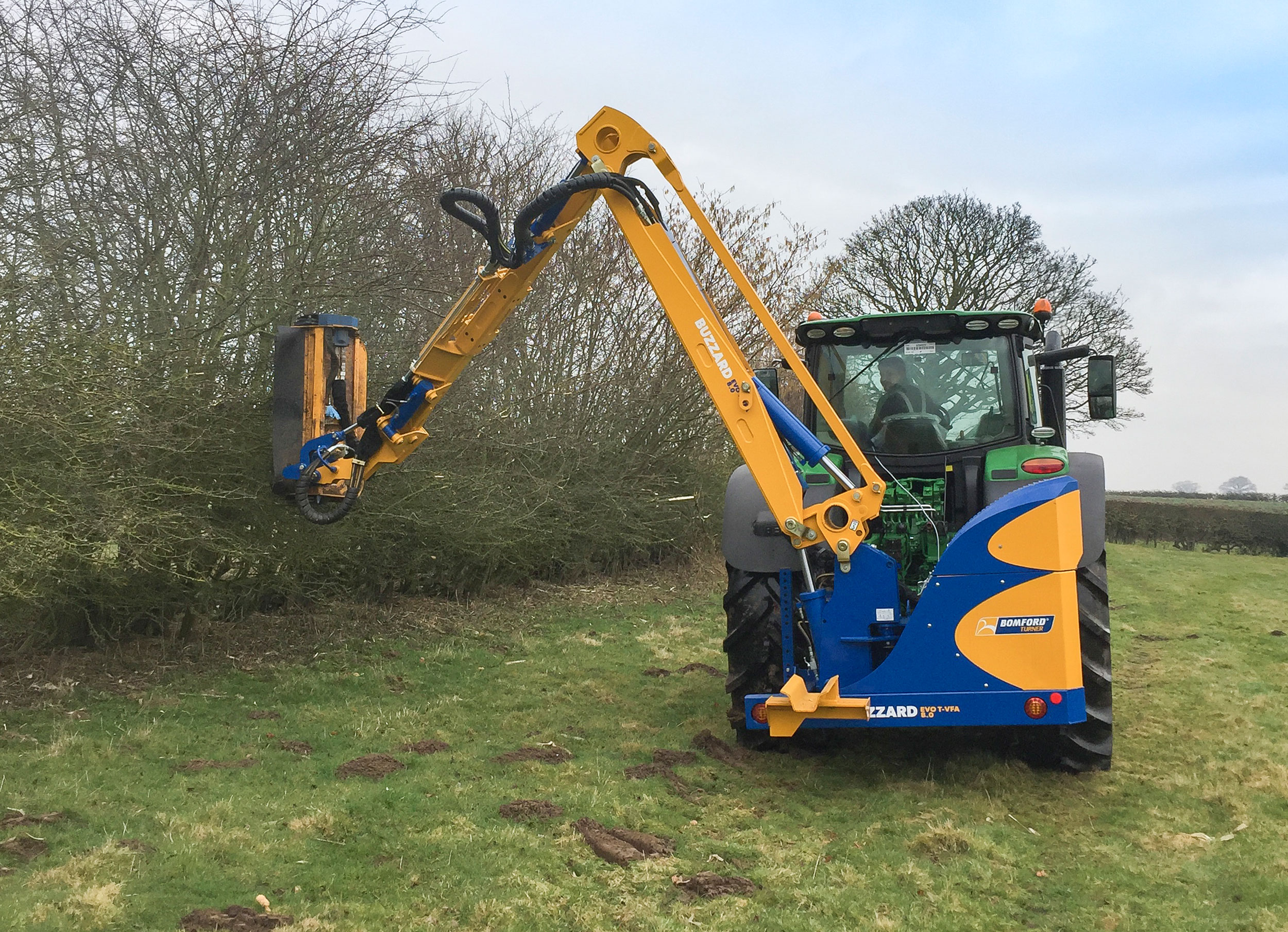

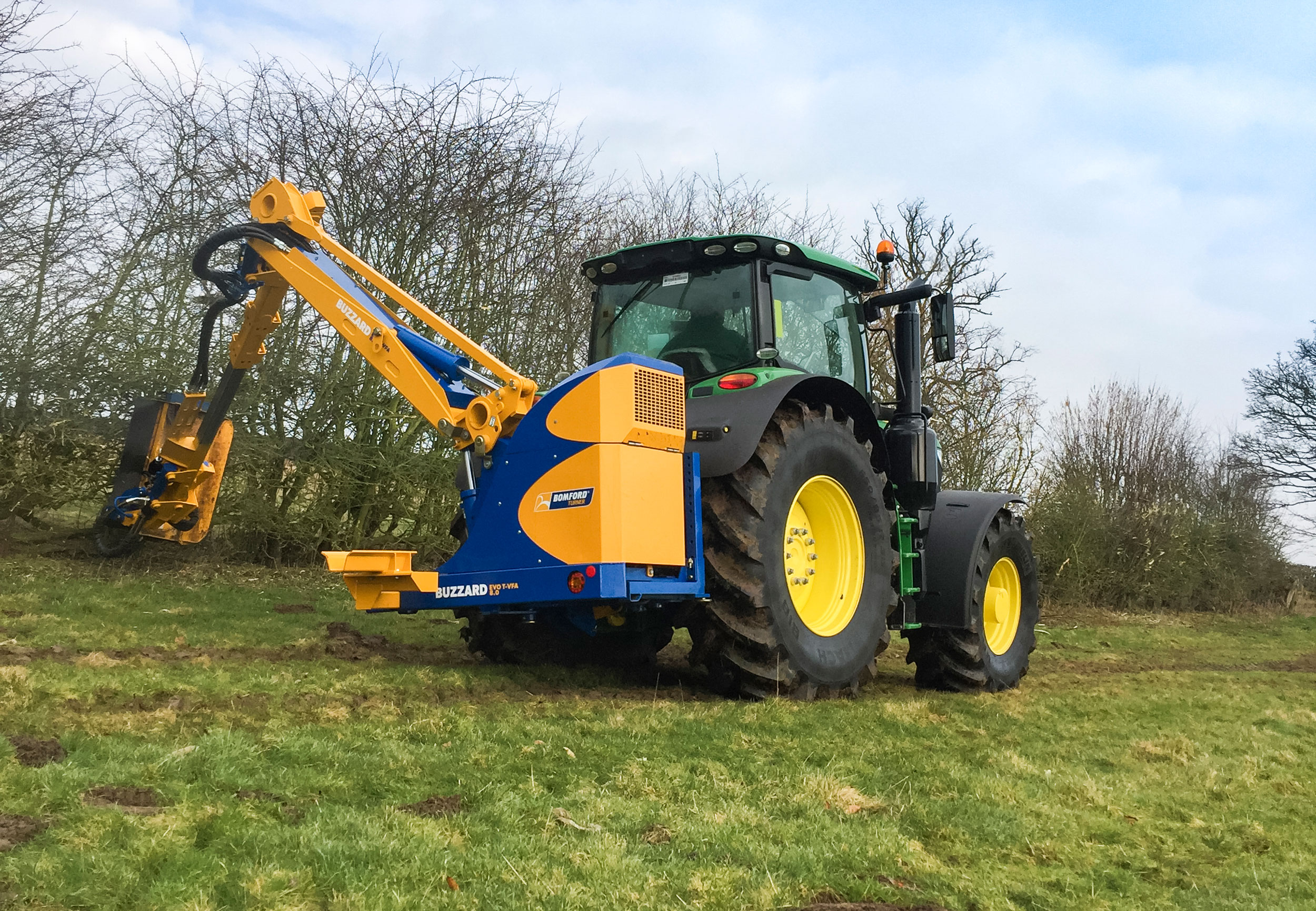

This latest flagship model in the VFA range provides an unrivalled 3.2m total travel including 2.1m forward reach, resulting in an optimum mid-mounted cutting head position.
Key Features:
- 8.0m reach
- Over 3.2m traverse on variable forward arm
- Axle bracket mounted only
- 125 l/min independent system
Product Specifications
Standard = Standard Optional = Optional Not Available = Not Available
| Model |
8.0m T-VFA (26’3″) |
Tractor Requirements
|
| Minimum horse power |
120hp |
| Minimum weight |
6000kg / 13228lbs |
Base Unit Mounting Options
|
| Front mount |
Not Available |
| Mid-mount |
Not Available |
| Rear mount |
Standard |
| Three point linkage (CAT II) |
Not Available |
| Axle Bracket |
Standard |
Overall machine parameters
|
| Machine weight with head and oil |
2270kg / 5005lbs |
| Capacity of oil tank |
250 Litres / 66USG |
| Weight of machine with oil but without head |
2450kg / 5401lbs |
Controls
|
| Cable control (CC) |
Not Available |
| Low pressure hydraulics (LPH) |
Not Available |
| Electronic proportional control (EPP) |
Not Available |
| Intelligent control system (ICS) |
Standard |
| Cable rotor reverse |
Not Available |
| Electronic rotor reverse |
Standard |
Hydraulic system
|
| System capability |
74hp |
| Pump flow rate |
125 Litres / 33USG |
| Pump type (Gear / Piston / Helical) |
Gear |
| Pump arrangement (Twin / In-line) |
Twin |
| Independent hydraulics |
Standard |
| Oil cooler |
Standard |
Arm features and main frame
|
| Forward arm |
2112mm / 6’11” |
| Telescopic arm |
Standard |
| Telescopic arm stroke |
900mm / 2’11” |
| Power slew |
Standard |
| Power slew angle |
94° |
| Gravity breakout protection |
Not Available |
| Hydraulic breakout protection |
Standard |
| Arm float – Manual operation |
Not Available |
| Arm float – Electronic operation |
Standard |
| Head float – Manual operation |
Not Available |
| Head float – Electronic operation |
Standard |
| Left hand cutting |
Optional |
| Right hand cutting |
Optional |
| Left and right hand cutting |
Not Available |
Arm attachments available
|
| Variable track bracket (VTB) |
Not Available |
| Sheartrim cutter bar |
Optional |
| Pro-Saw |
Optional |
| Ditch cleaner |
Optional |
| Rotary head |
Optional |
Accessories
|
| Road lights |
Standard |
| Debris blower |
Optional |
| Cab guard kit |
Standard |
Cutting Heads
|
| 1.2m Pro-Cut with 115mm Roller |
Standard |
| 1.2m Pro-Cut with 150mm Roller |
Standard |
| 1.5m Pro-Cut with 115mm Roller |
Optional |
| 1.5m Pro-Cut with 150mm Roller |
Optional |
| 1.2m Pro-Cut ISMP with 115mm Roller |
Optional |
| 1.2m Pro-Cut ISMP with 150mm Roller |
Optional |
2m HD Head |
Optional |
Flails
See the table below to see which flail heads are available for the different cutting heads listed above.
| |
BB |
MP44 |
HS60 |
Pro Flail |
T40 |
T60 |
True Cut |
Bushmaster |
| 1.2m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.5m Pro-Cut with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 115mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
| 1.2m Pro-Cut ISMP with 150mm roller |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
Working Reach Dimensions
Head used to calculations: 1.2 Pro-Cut
| Side Reach – 8.0m T-VFA (26’3″) |
| A |
8.0m |
26’3″ |
| B |
7.5m |
24’7″ |
| C |
6.0m |
19’8″ |
| D |
7.41m |
24’4″ |
| E |
8.62m |
28’3″ |
| X |
1.6m |
5’3″ |
| Y |
1.0m |
3’3″ |
| Forward Reach – 8.0m T-VFA (26’3″) |
| A |
8.0m |
26’3″ |
| F |
7.59m |
24’11” |
| G |
7.76m |
25’5″ |
| H |
2.12m |
6’11” |
| J |
0.9m |
2’11” |
