Bomford Turner
Landscape • Arm Mowers

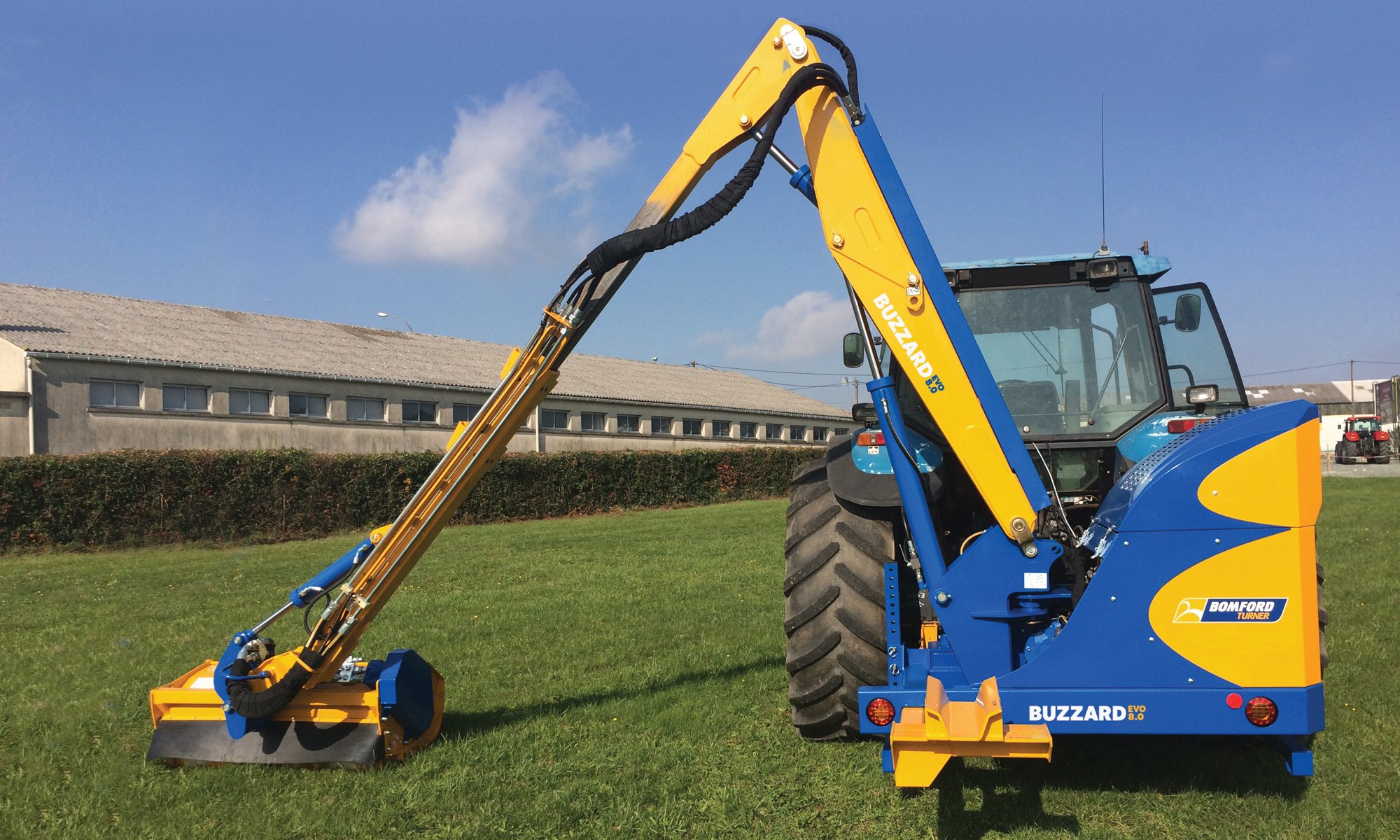

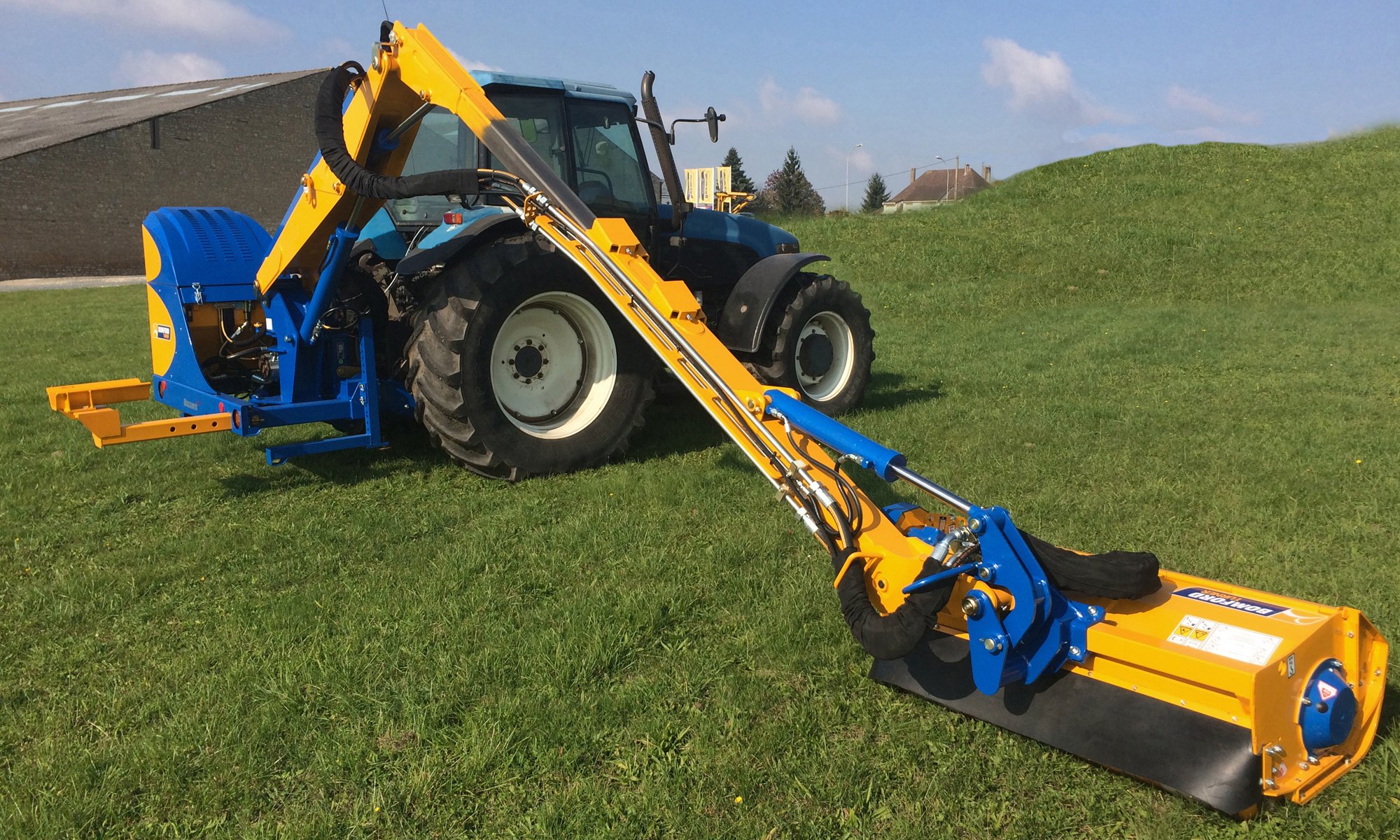

Buzzard Evo

The Buzzard Evo range has been specifically designed for the large scale contractor and agency.

Download Datasheet

With a large choice in specification, and fully proportional controls.

Key Features:

  • 7.25m or 8m reach
  • 1.2m or 1.5m cutting heads
  • Oil cooled as standard
  • ICS fully proportional controls

Product Specifications

Standard = Standard   Optional = Optional   Not Available = Not Available

Model 7.25m T (23’9″) 8.0m T (26’3″)

Tractor Requirements
Minimum horse power 120hp 140hp
Minimum weight 5500kg / 12125lbs 6000kg / 13228lbs

Base Unit Mounting Options
Front mount Not Available Not Available
Mid-mount Not Available Not Available
Rear mount Standard Standard
Three point linkage (CAT II) Not Available Not Available
Axle bracket Standard Standard

Overall machine parameters
Machine weight with head and oil 2290kg / 5049lbs 2490kg / 5490lbs
Capacity of oil tank 250 Litres / 66USG 250 Litres / 66USG
Weight of machine with oil but without head 2100kg / 4630lbs 2290kg / 5049lbs

Controls
Cable control (CC) Not Available Not Available
Low pressure hydraulics (LPH) Not Available Not Available
Electronic proportional control (EPP) Not Available Not Available
Intelligent control system (ICS) Standard Standard
Cable rotor reverse Optional Optional
Electronic rotor reverse Standard Standard

Hydraulic system
System capability 74 hp 74hp
Pump flow rate 125 Litres / 33USG 125 Litres / 33USG
Pump type (Gear / Piston / Helical) Gear Gear
Pump arrangement (Twin / In-line) Twin Twin
Independent hydraulics Standard Standard
Oil cooler Standard Standard

Arm features and main frame
Forward arm Not Available Not Available
Telescopic arm Standard Standard>
Telescopic arm stroke 1300mm / 4’3″ 1450mm / 4’9″
Power slew Standard Standard
Power slew angle 94° 94°
Gravity breakout protection Not Available Not Available
Hydraulic breakout protection Standard Standard
Arm float – Manual operation Not Available Not Available
Arm float – Electronic operation Standard Standard
Head float – Manual operation Optional Optional
Head float – Electronic operation Standard Standard
Left hand cutting Optional Optional
Right hand cutting Optional Optional
Left and right hand cutting Not Available <Not Available

Arm attachments available
Variable track bracket (VTB) Optional Optional
Sheartrim cutter bar Optional Optional
Pro-Saw Optional Optional
Ditch cleaner Optional Optional
Rotary head Optional Optional

Accessories
Road lights Standard Standard
Debris blower Optional Optional
Cab guard kit Standard Standard

Cutting Heads
1.2m Pro-Cut with 115mm Roller Standard Standard
1.2m Pro-Cut with 150mm Roller Standard Standard
1.5m Pro-Cut with 115mm Roller Optional Optional
1.5m Pro-Cut with 150mm Roller Optional Optional
1.2m Pro-Cut ISMP with 115mm Roller Optional Optional
1.2m Pro-Cut ISMP with 150mm Roller Optional Optional
2m HD Head Optional Optional

Flails

See the table below to see which flail heads are available for the different cutting heads listed above.

  BB MP44 HS60 Pro Flail T40 T60 True Cut Bushmaster
1.2m Pro-Cut with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.5m Pro-Cut with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.5m Pro-Cut with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 115mm roller Optional Optional Optional Optional Optional Optional Optional Optional
1.2m Pro-Cut ISMP with 150mm roller Optional Optional Optional Optional Optional Optional Optional Optional
2m HD head Optional Standard Not Available Not Available Not Available Not Available Not Available Not Available

Working Reach Dimensions

Head used to calculations: 1.2 Pro-Cut


  7.25m T (23’9″) 8.0m T (26’3″)
A 7.3m 23’11” 7.94m 26’1″
B 7.64m 25’1″ 8.07m 26’6″
C 5.25m 17’7″ 5.91m 19’5″
D 6.25m 20’6″ 6.86m 22’6″
E 8.71m 28’7″ 8.87m 29’1″
X 1.35m 4’7″ 1.35m 4’7″
Y 1.0m 3’3″ 1.0m 3’3″



Our range of Accessories for the Buzzard Evo

Attachments

A wide selection of attachments is available to improve the versatility and therefore the profitability of the Bomford arm mowers range.

Attachments

Controls

Every machine has a choice of tailormade control systems available on most arm mowers.

Controls

Flails

The vast majority of our heads now offer the ability to fit any one of ten flail designs.

Flails

Heads

Most heads offer a choice of flails and ability to adjust rotor speed to suit verge or hedge.

Heads
